Mercedes Benz
>>
1993
>>
300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Wire and Plug Connection Locations
>>
M4x1
M4x1

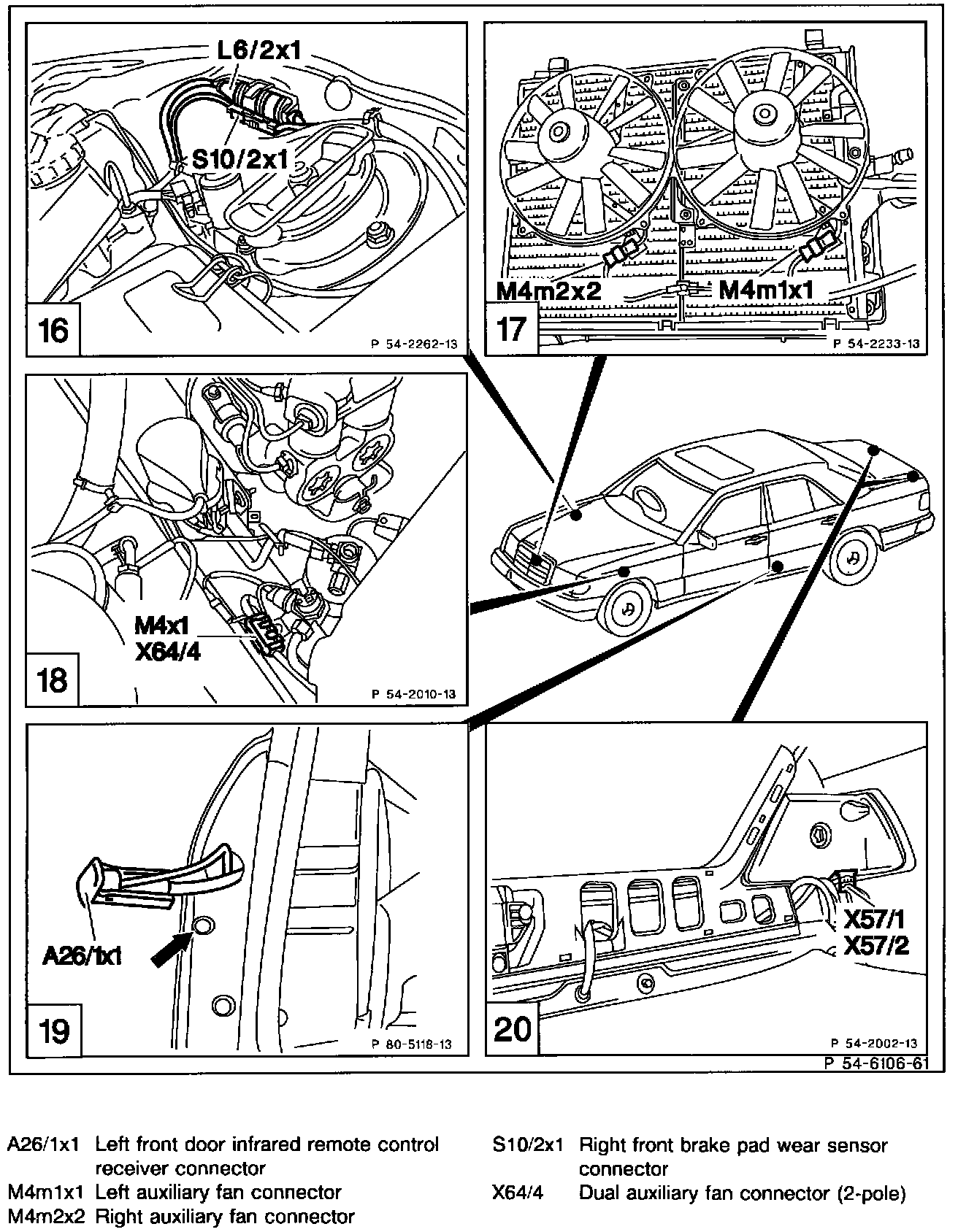

Wire And Plug Connection Locations (Figure 16 To 20):
Figure
18
Component Name
Left auxiliary fan connector
Connector ID
M4X1
