Required Test Equipment

Required Test Equipment - Electronic Accelerator System Test:

Required Test Equipment

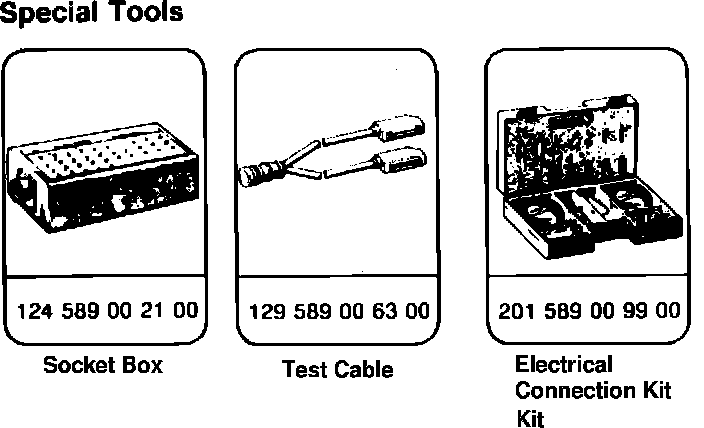

SPECIAL TOOLS


CAUTION: Only unplug the ABS/ASR or Electronic Accelerator control units with the ignition turned OFF.

Connection Diagram With Multimeter For Crusie Control Test Program:

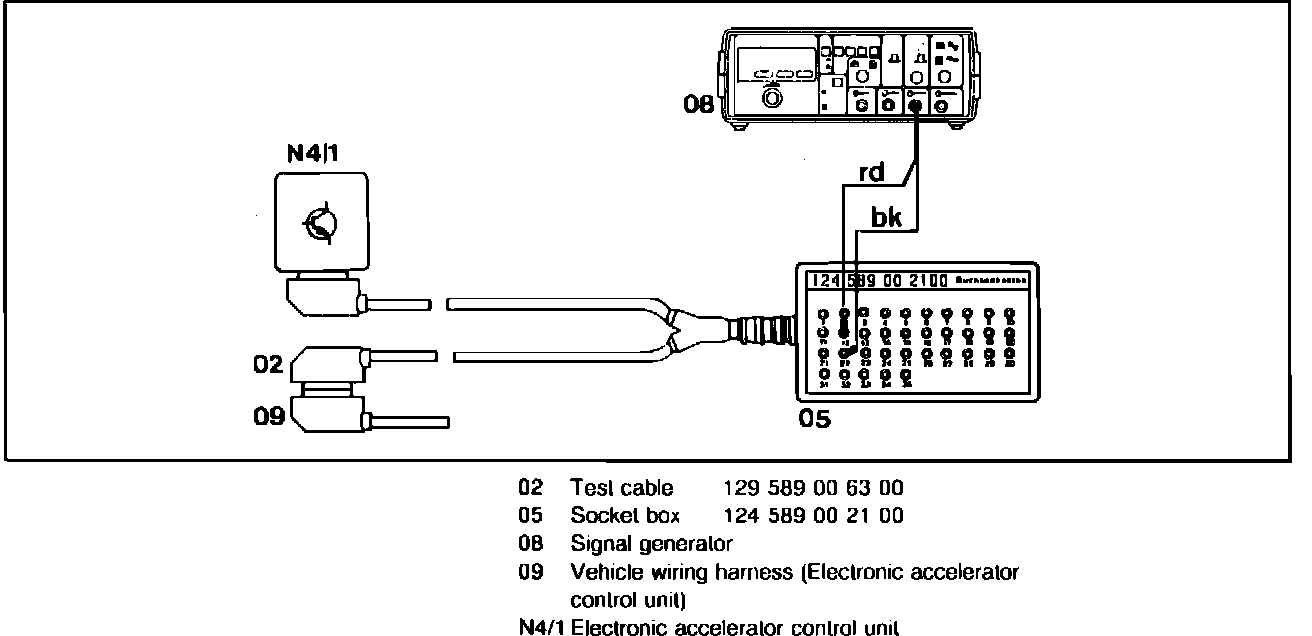

Connection Diagram With Signal Generator For Crusie Control Test Program:

CONNECTING THE TEST EQUIPMENT
