Test Step Description

Test Step Descriptions And Symbols:

Test Steps are divided into primary and secondary steps, and indicated with an arrow.

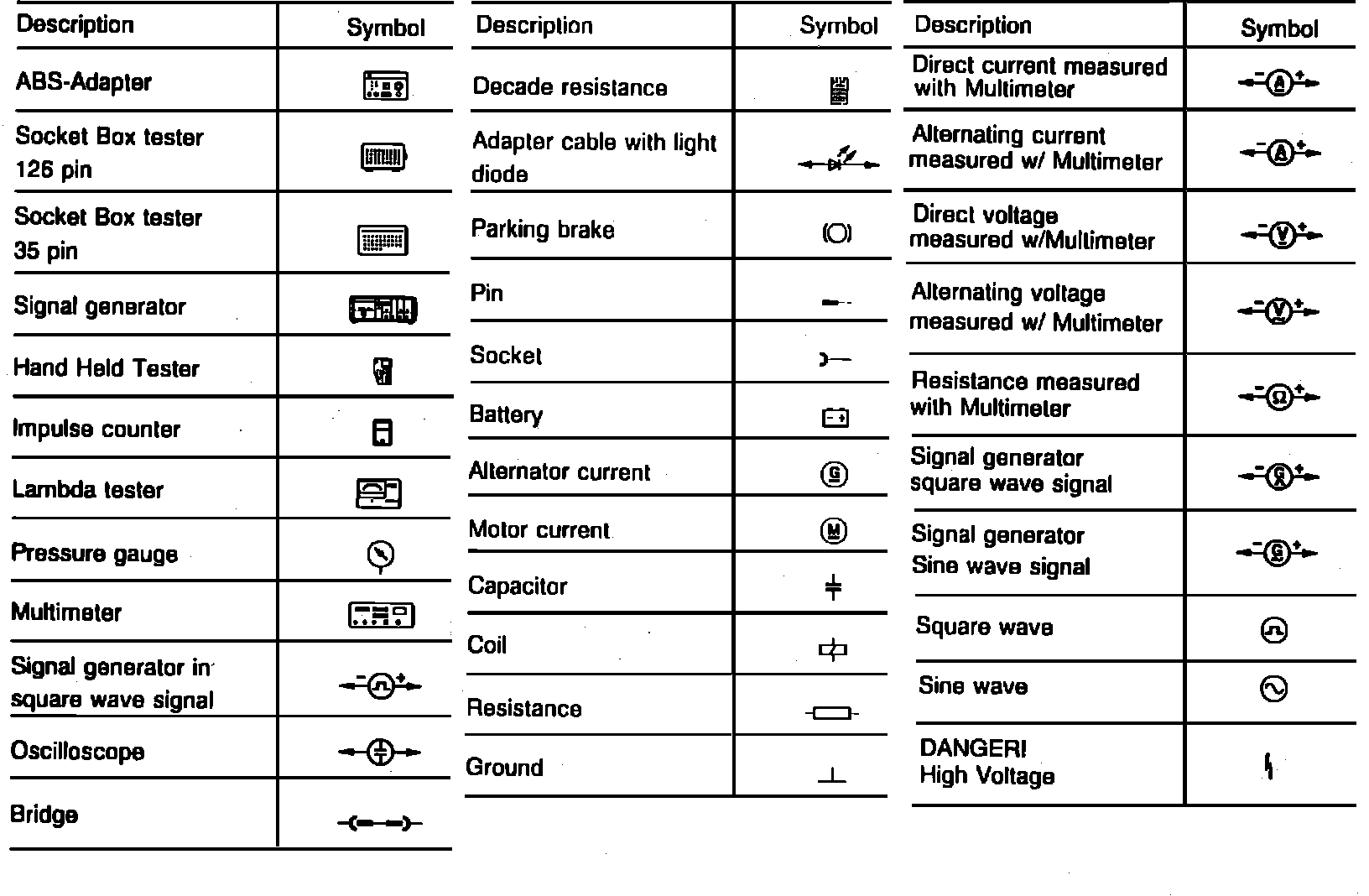

Secondary test steps are indicated with a dash line. See image for an overview of the valid symbols.

When a wire is listed in the "Possible Cause" column, all connectors between the control unit and the component being tested are to be included as a possible failure source.

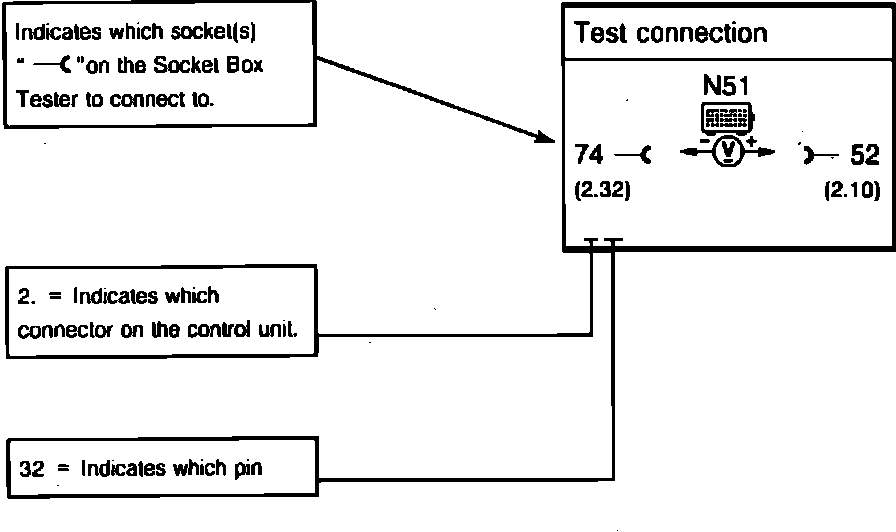

Test Connection Indicator:

NOTE:
When using the Socket Box Tester, see ELECTRICAL AND ELECTRONIC DIAGRAMS to find the appropriate wiring diagram for a description of the socket nomenclature. See image for example.
