Home >> Mercedes Benz >> 1993 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> With Traction Control (ASR, ETS or ESP) >> ASR Testing with ASR Test Equipment >> Electronic Accelerator System Tests >> Function Test (CIS-E)

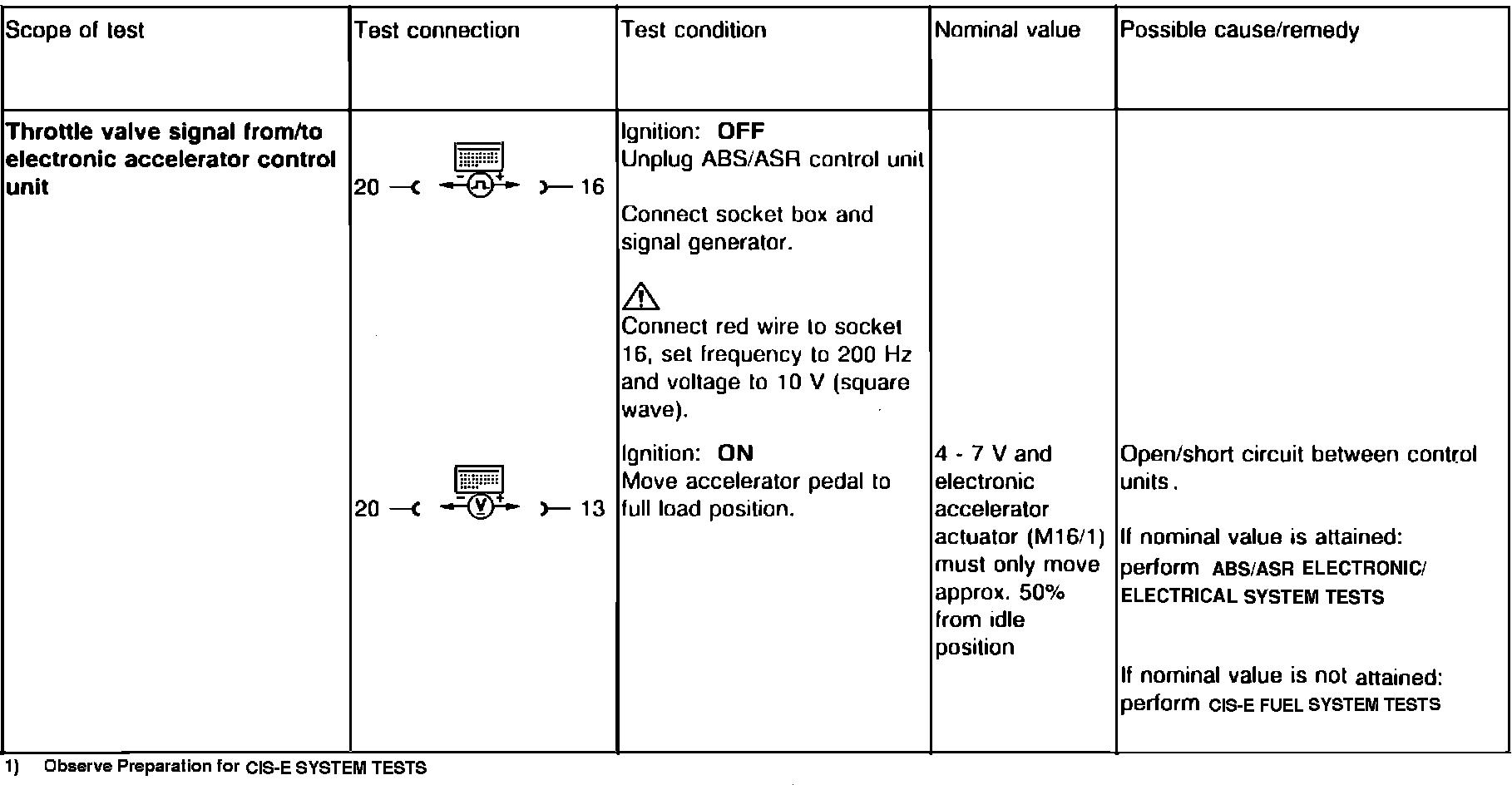

Function Test (CIS-E)

Test Step 1.0:
