Home >> Mercedes Benz >> 1993 >> 300E 4MATIC (124.230) L6-3.0L (103.985) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> With Traction Control (ASR, ETS or ESP) >> ASR Testing with ASR Test Equipment >> ABS/ASR Electronic/Electrical System Tests >> Test Steps >> Test Steps 35.0-38.0

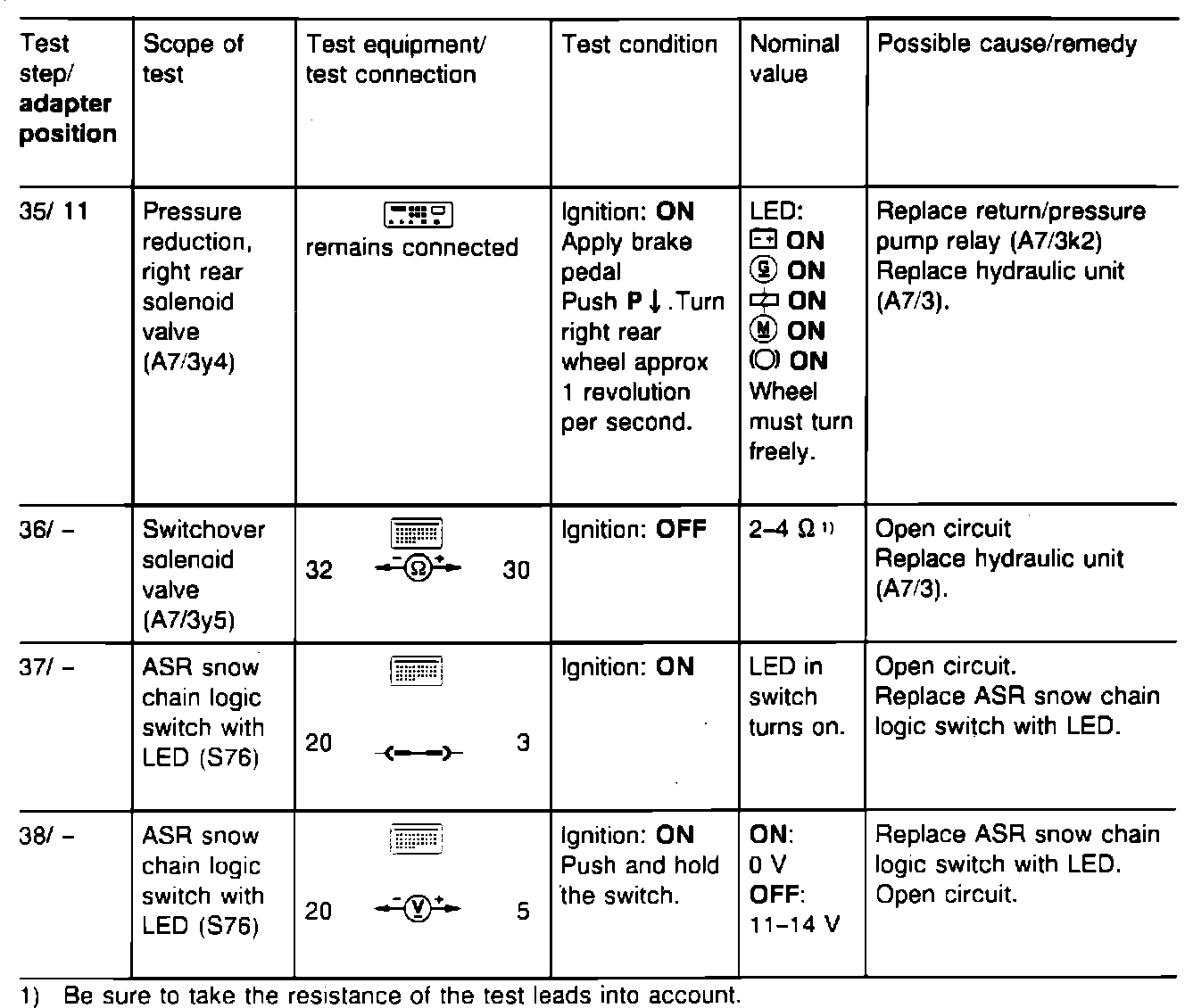

Test Steps 35.0-38.0

Test Steps 35-38:
