Connecting ASR Test Equipment

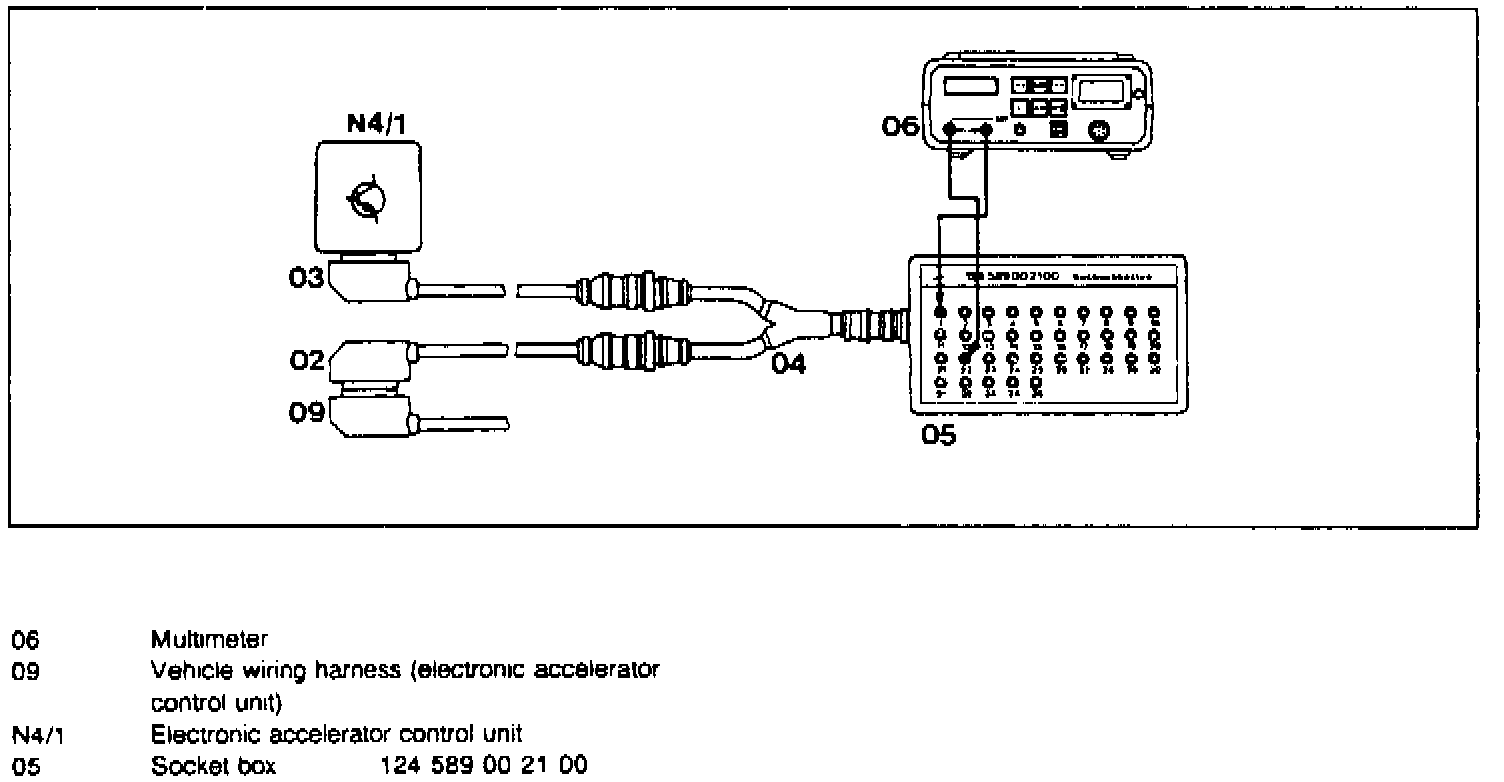

Fig. 13 Connecting ASR Test Equipment:

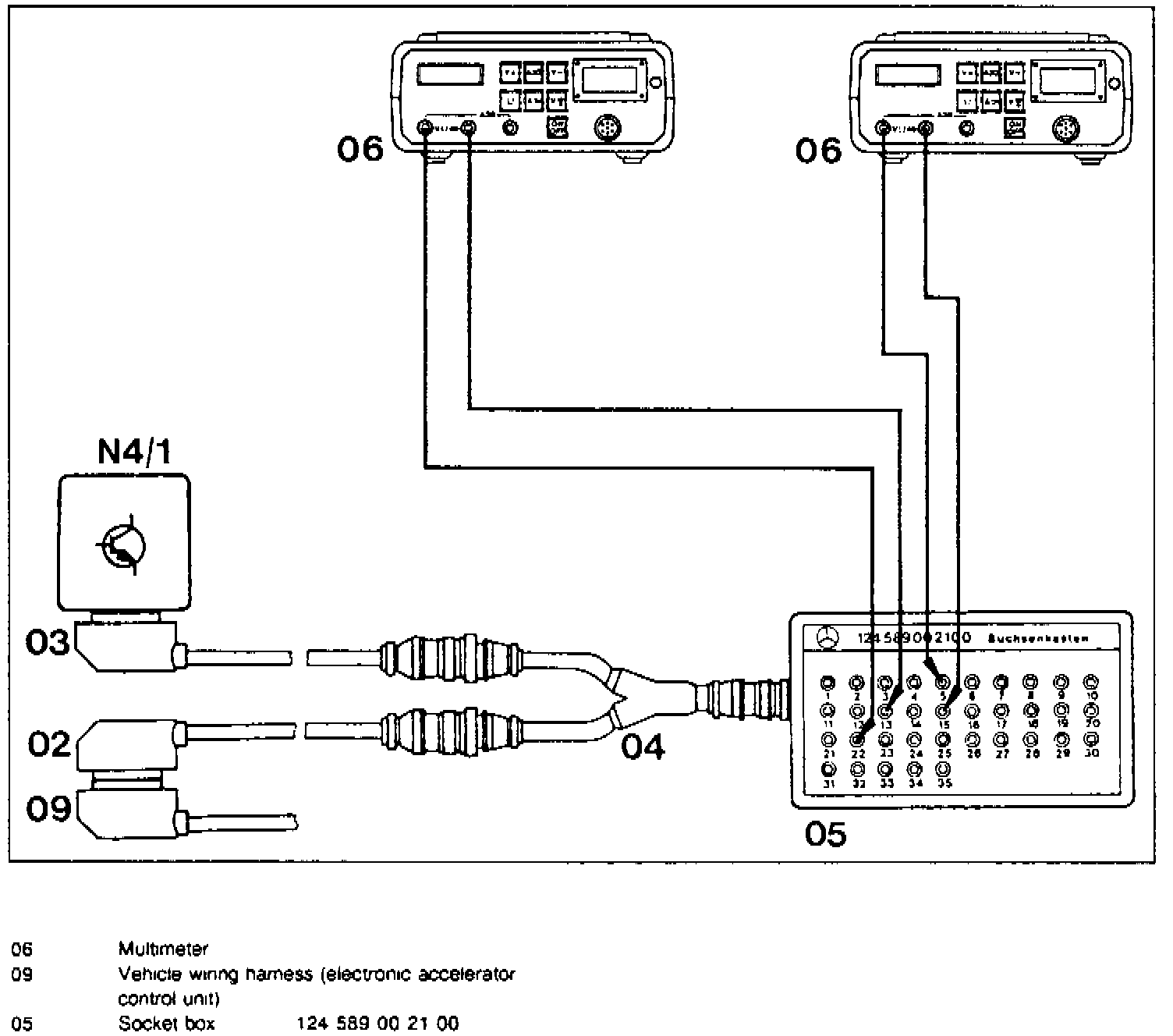

Fig. 13 Connecting ASR Test Equipment:

During all tests when ignition switch is on, LED must illuminate, indicating battery voltage is satisfactory. Vehicle must not be driven with (ABS/ASR) adapter connected. Refer to Fig. 13 for connection of test equipment
