Front Axle Strut Suspension Leak Test

Hydraulic Test Program - Front Axle Strut Suspension Leak Test

Preparation for Test
1. Weight of vehicle must rest on wheels.
2. Vehicle must be in normal load/curb weight condition.

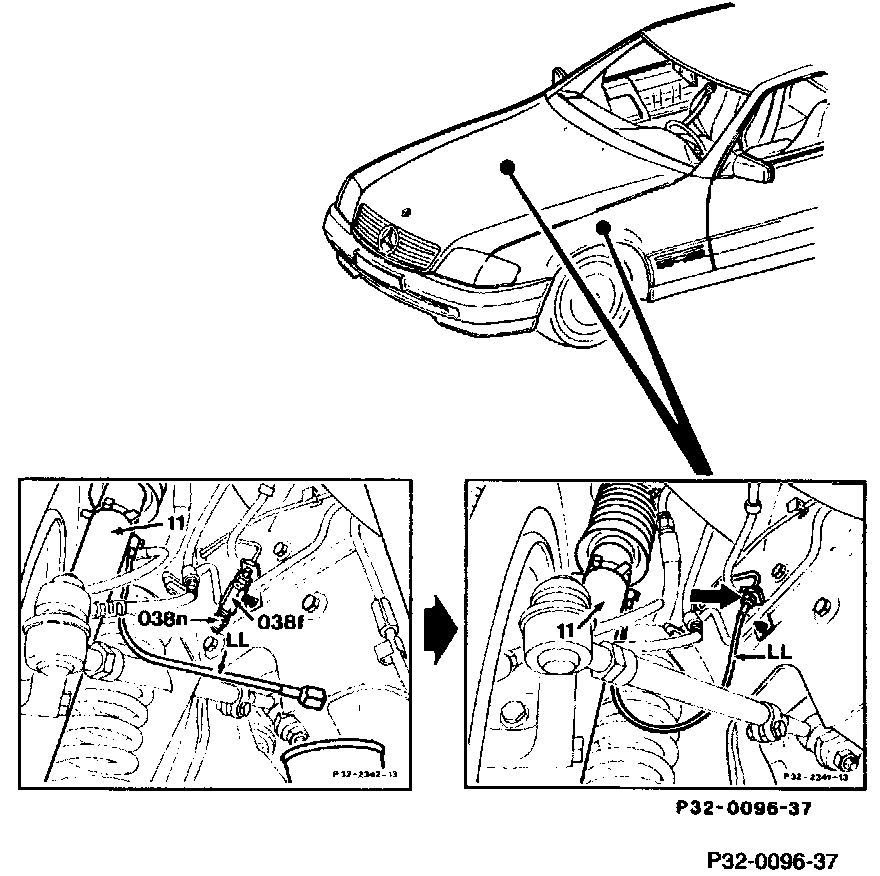

11 Front suspension strut
LL Leak oil return line for left suspension strut front axle distributor/valve unit
LR Leak oil return line for right suspension strut, front axle distributor/valve unit (not shown)

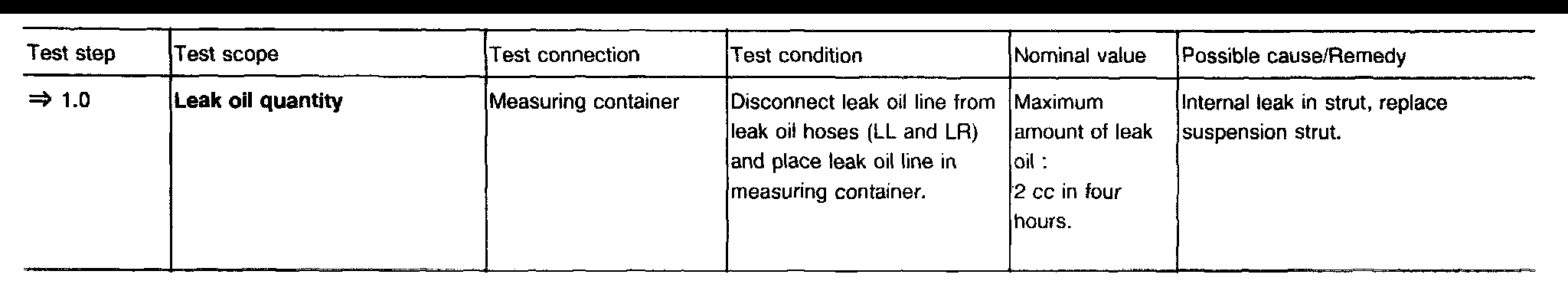

Test:
