Test

Electrical Test Program - Test

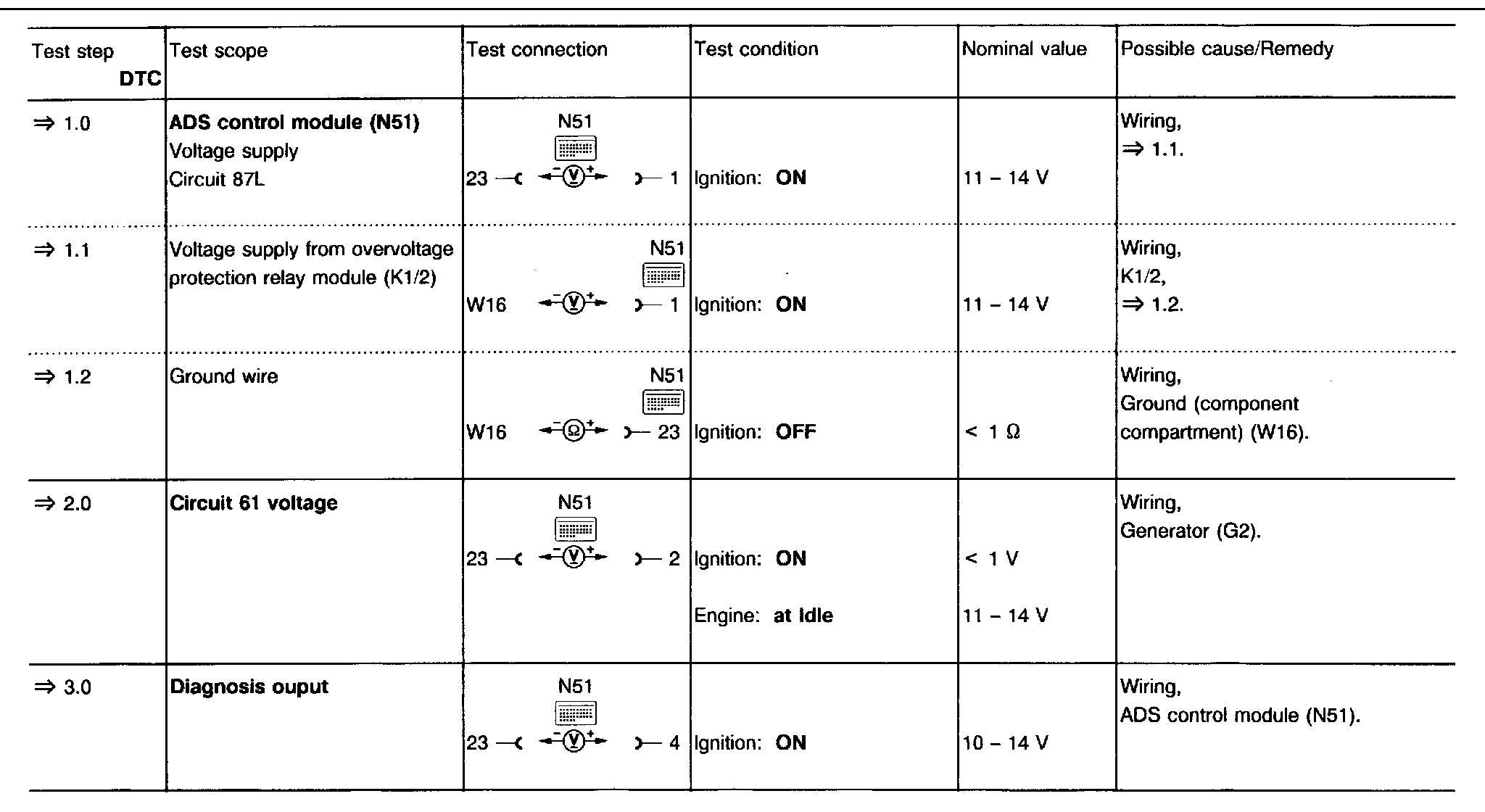

Test 1.0 - 3.0:

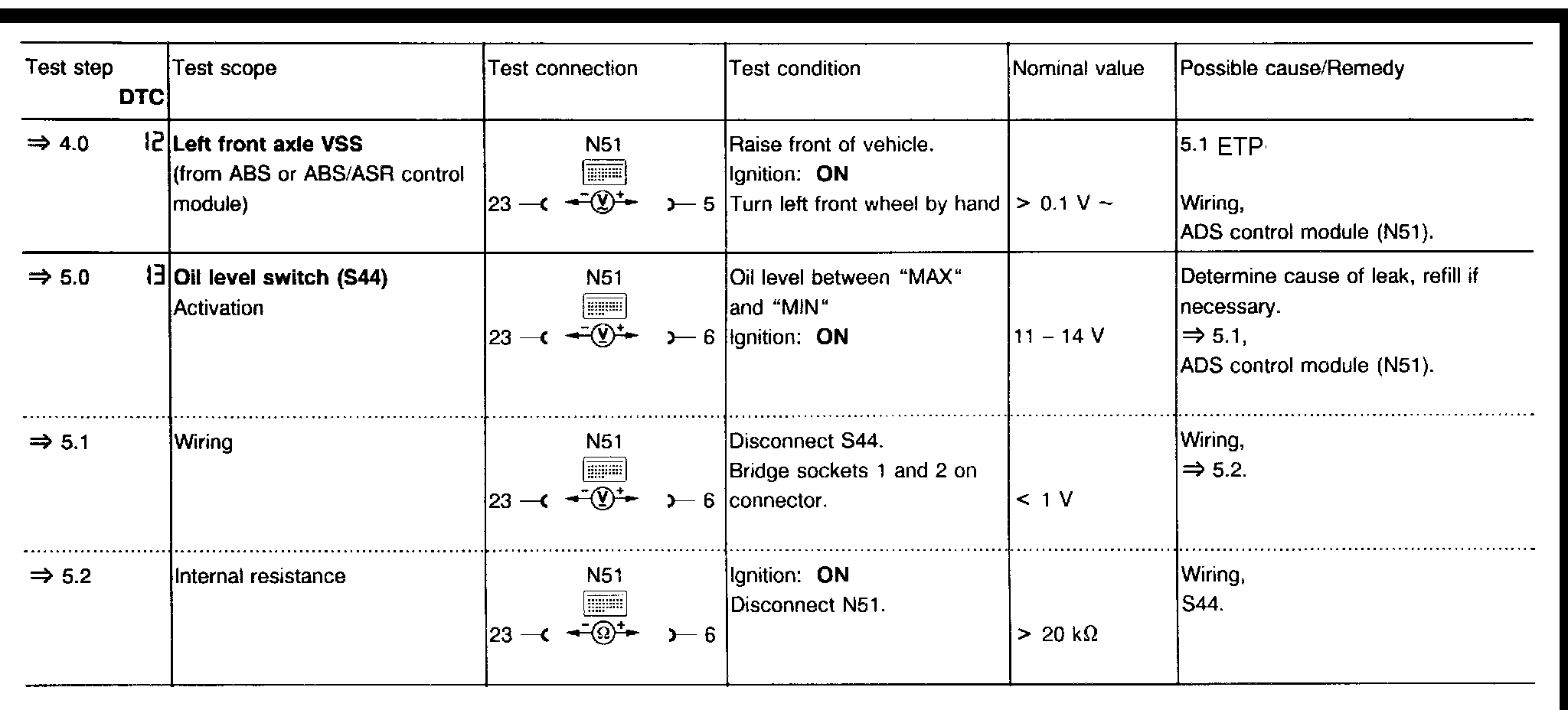

Test 4.0 - 5.2:

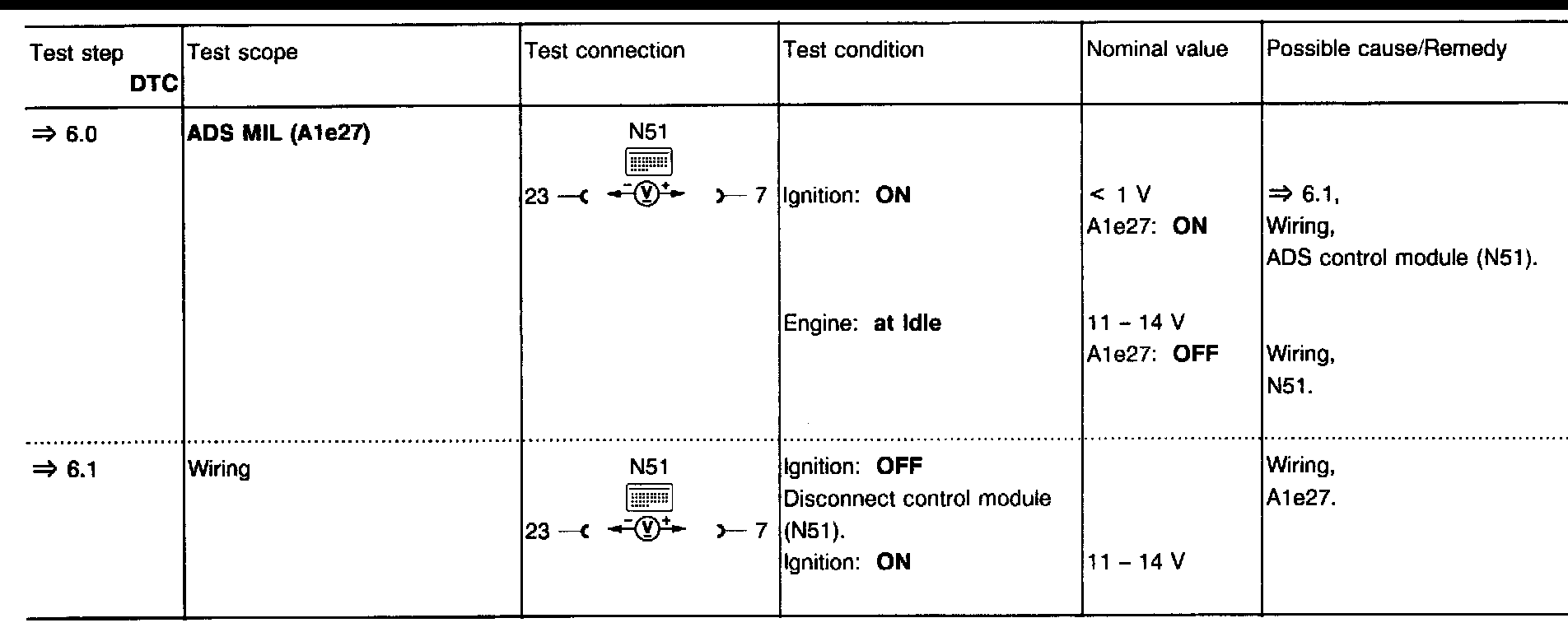

Test 6.0 - 6.1:

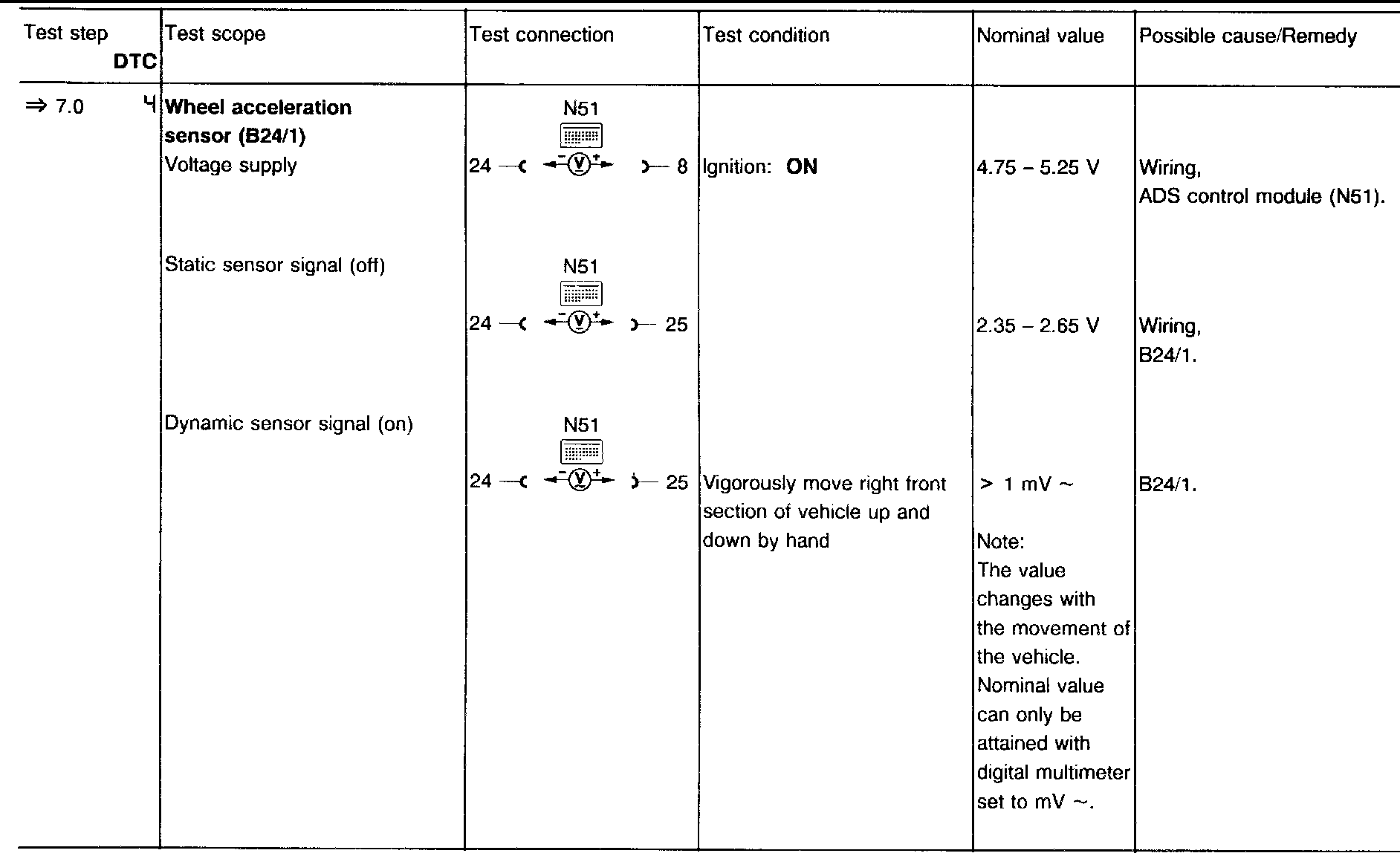

Test 7.0:

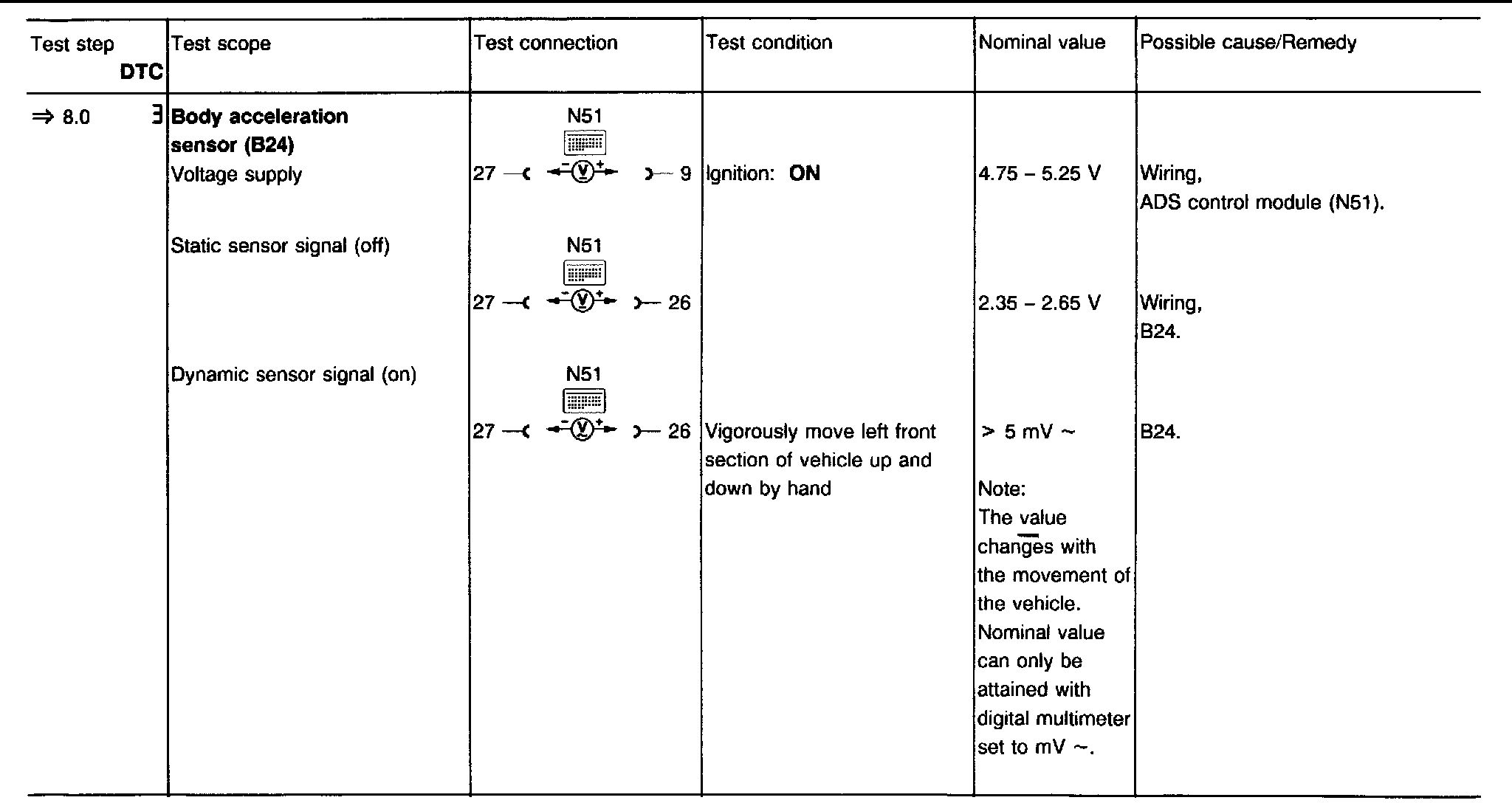

Test 8.0:

Test 9.0 - 10.0:

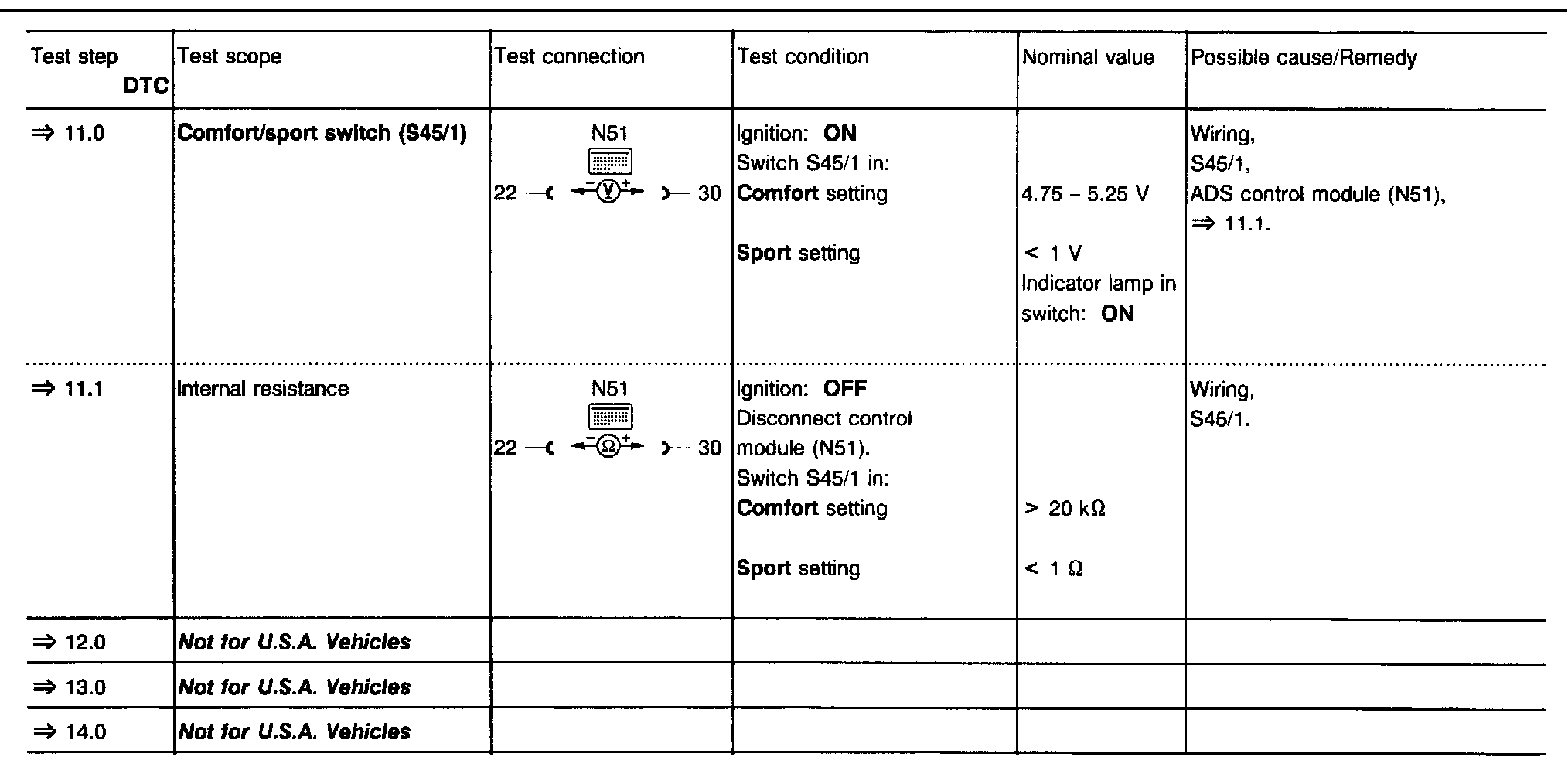

Test 11.0 - 14.0:

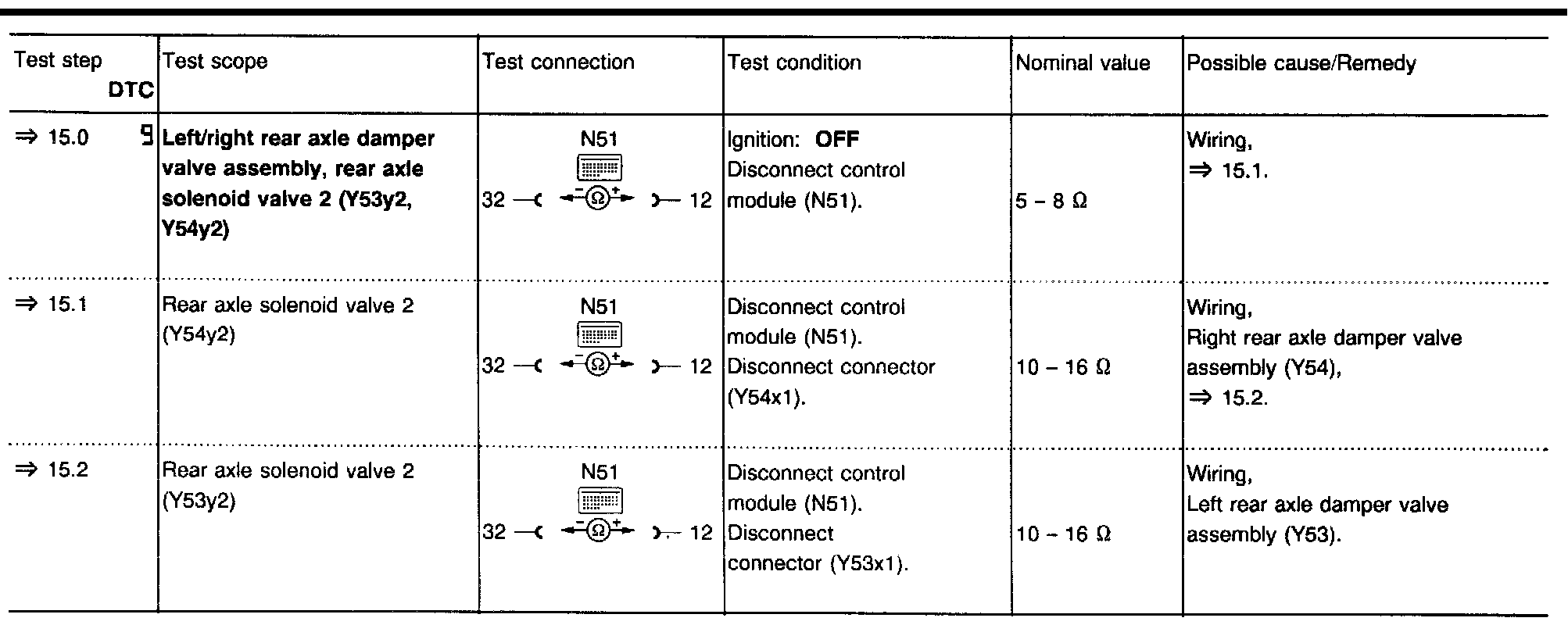

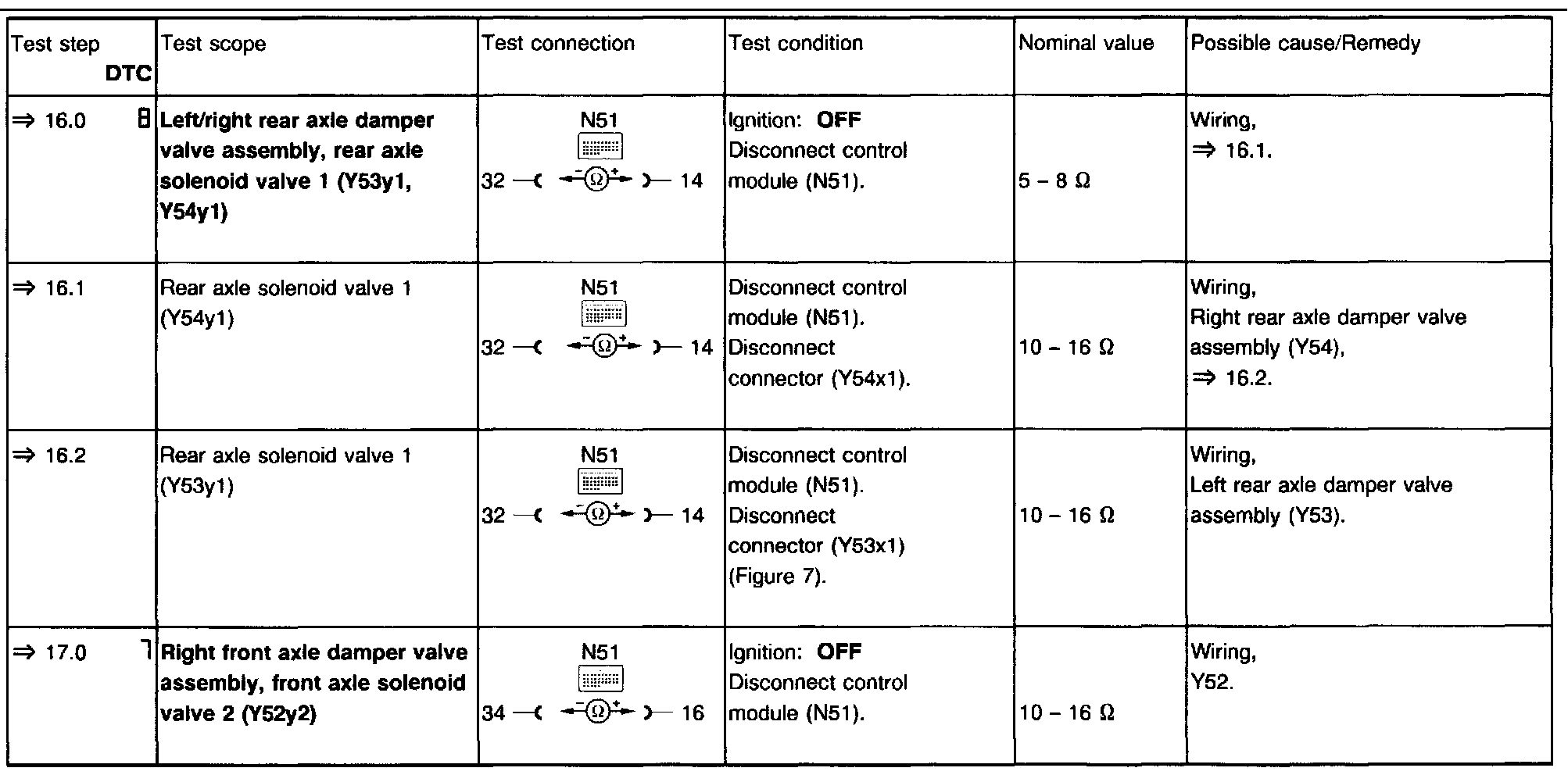

Test 15.0 - 15.2:

Test 16.0 - 17.0:

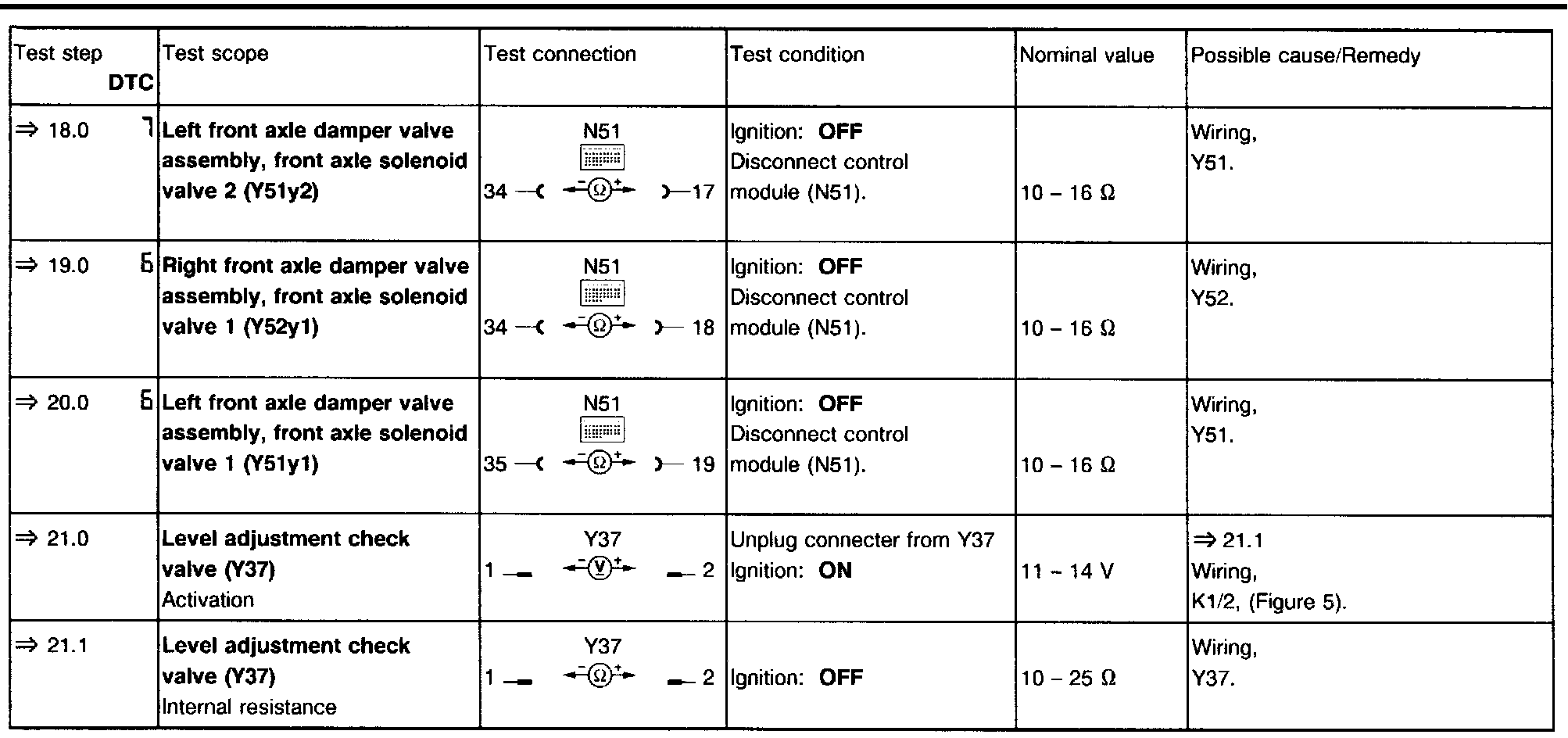

Test 18.0 - 21.1:

Figure 1:

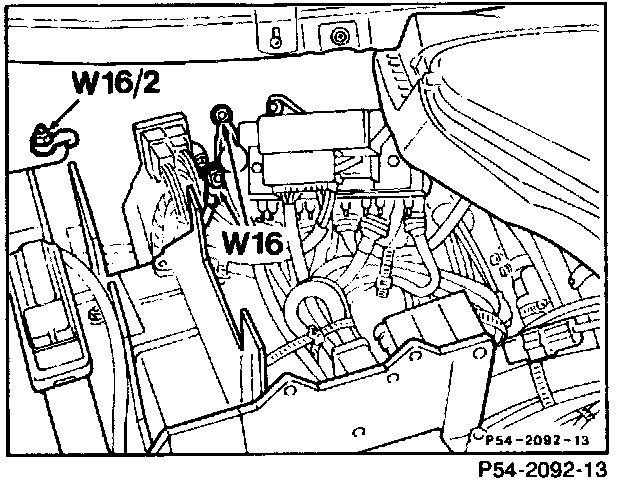

W16 Ground (component compartment)

Figure 2:

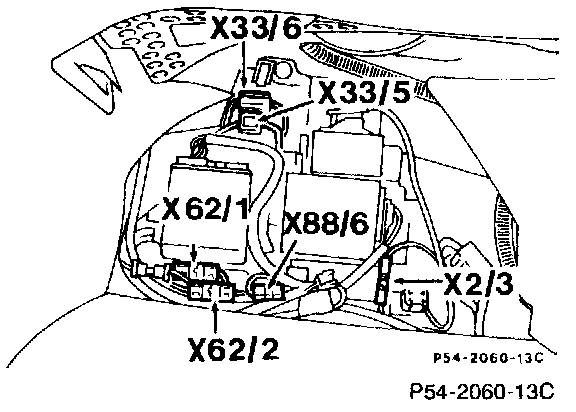

X33/5 ADS connector (front/rear suspension) (4-pole)
X33/6 ADS connector (front/rear suspension) (8-pole)

Figure 3:

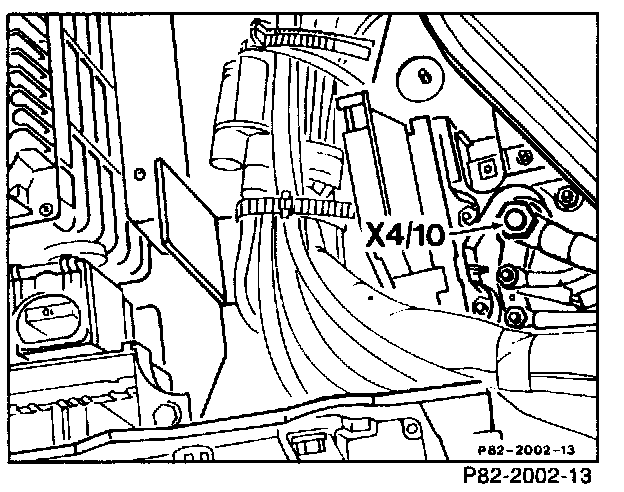

X4/10 Terminal block (circuit 30/circuit 61 battery) (3-pole)

Figure 4:

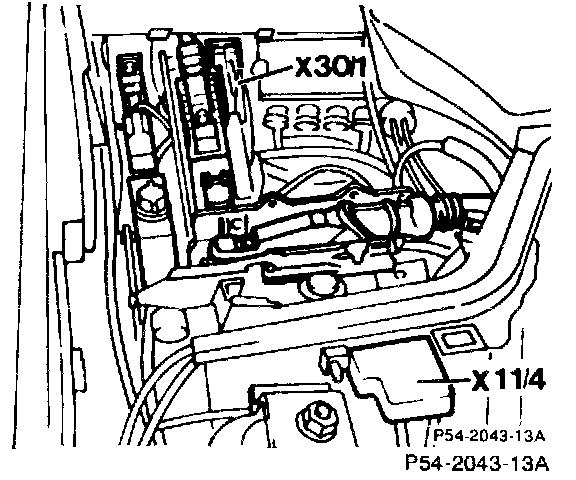

X11/4 Data link connector (DTC readout)
X30/1 Multi-function Connector block

Figure 5:

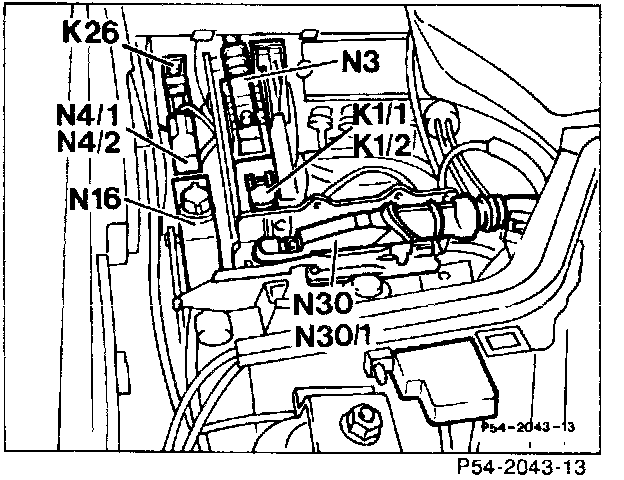

K1/2 Overvoltage protection relay module (87E/87L/30a 9-pole)
N30 ABS control module
N30/1 ABS/ASR control module

Figure 6:

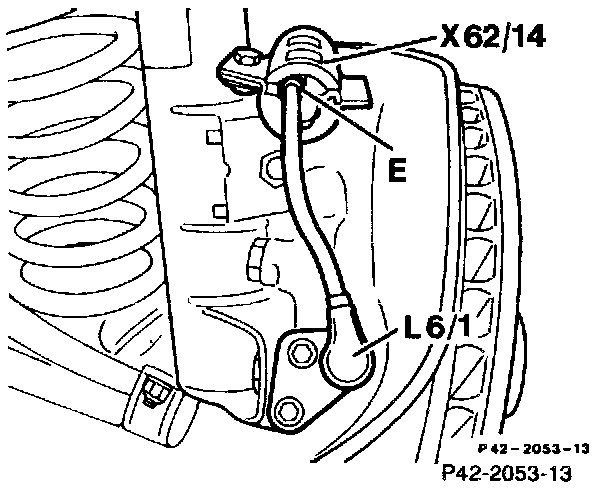

L6/1 Left front axle VSS sensor

Figure 7:

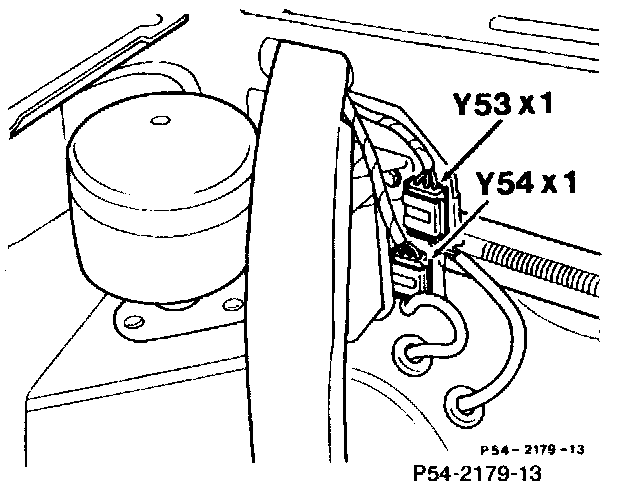

Y53x1 Left rear axle damper valve assembly connector
Y54xl Right rear axle damper valve assembly connector
