Preparation For Test

Electrical Test Program - Preparation for Test

1. Ignition: OFF
2. Disconnect ADS control module (N51).
3. Connect socket box and test cable to ADS control module (N51) according to connection diagram on below.


Special Tools











Equipment
Digital multimeter Fluke models 23, 83, 85, 87

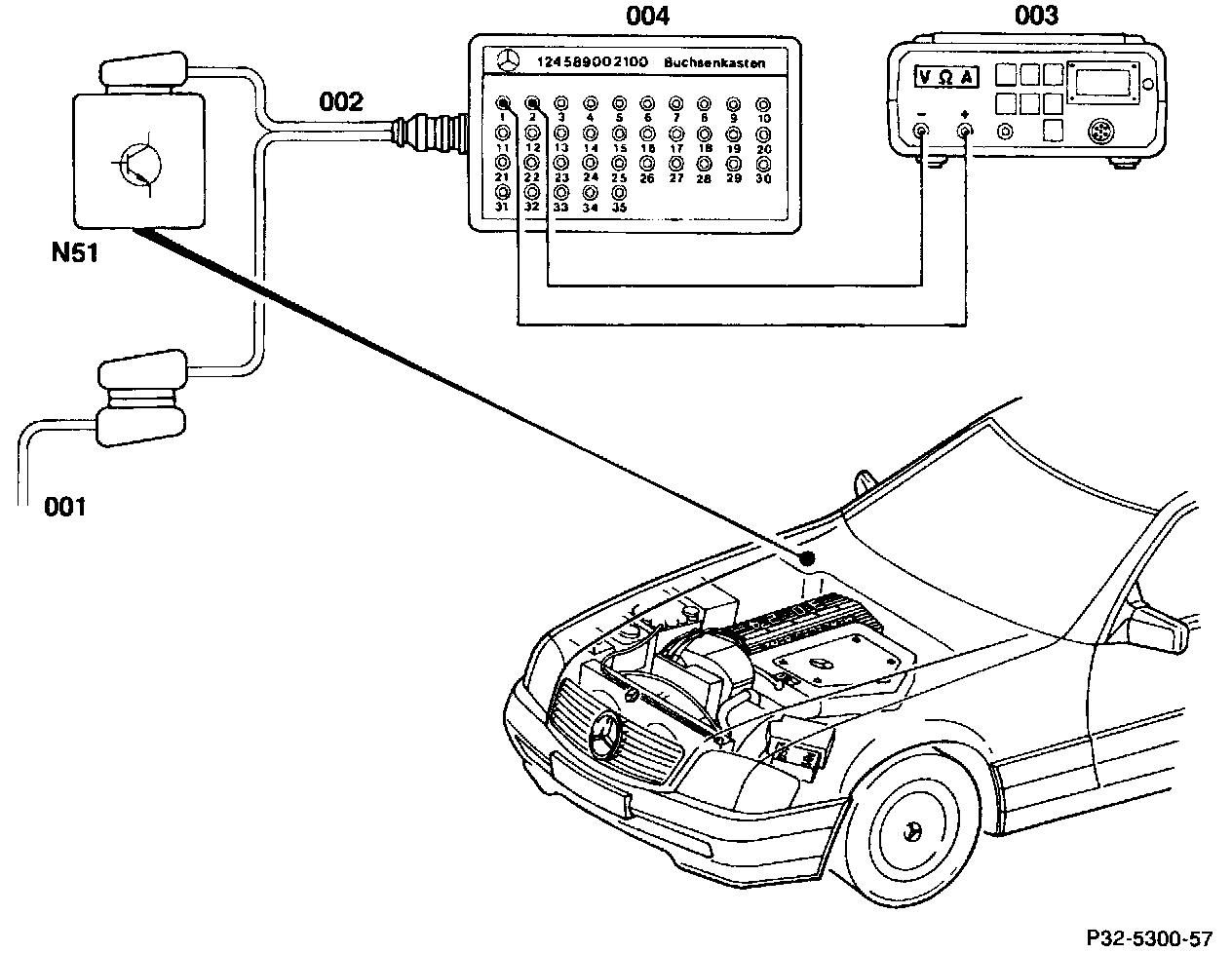

Connection Diagram - Socket Box



001 ADS control module connector
002 Test cable
003 Digital multimeter
004 Socket box (35-pole)
N51 ADS control module

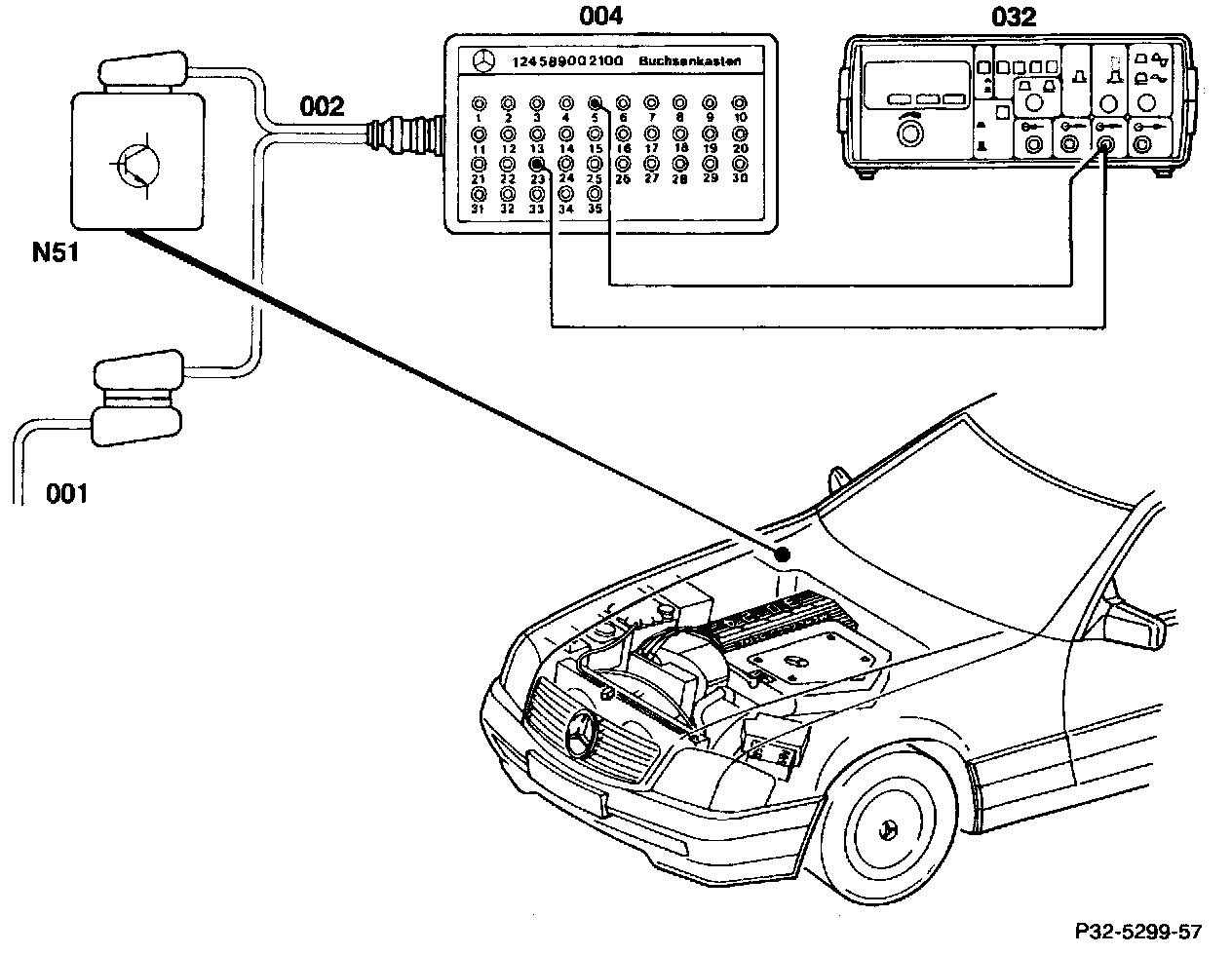

Connection Diagram - Signal Generator



001 ADS control module connector
002 Test cable
003 Digital multimeter
004 Socket box (35-pole)
032 Signal generator
N51 ADS control module
