Component Locations

Electrical Test Program - Component Locations

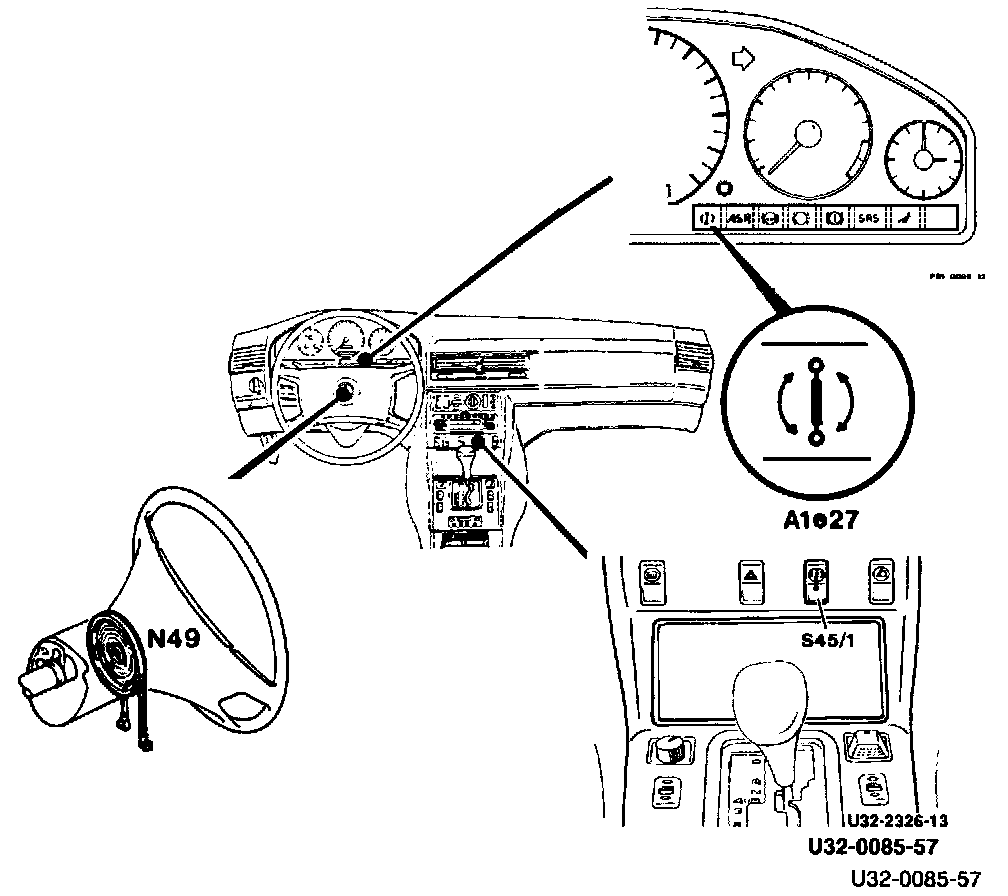

Components in Passenger Compartment



Alea7 ADS MIL
N49 Steering angle sensor
845/1 Comfort/sport switch

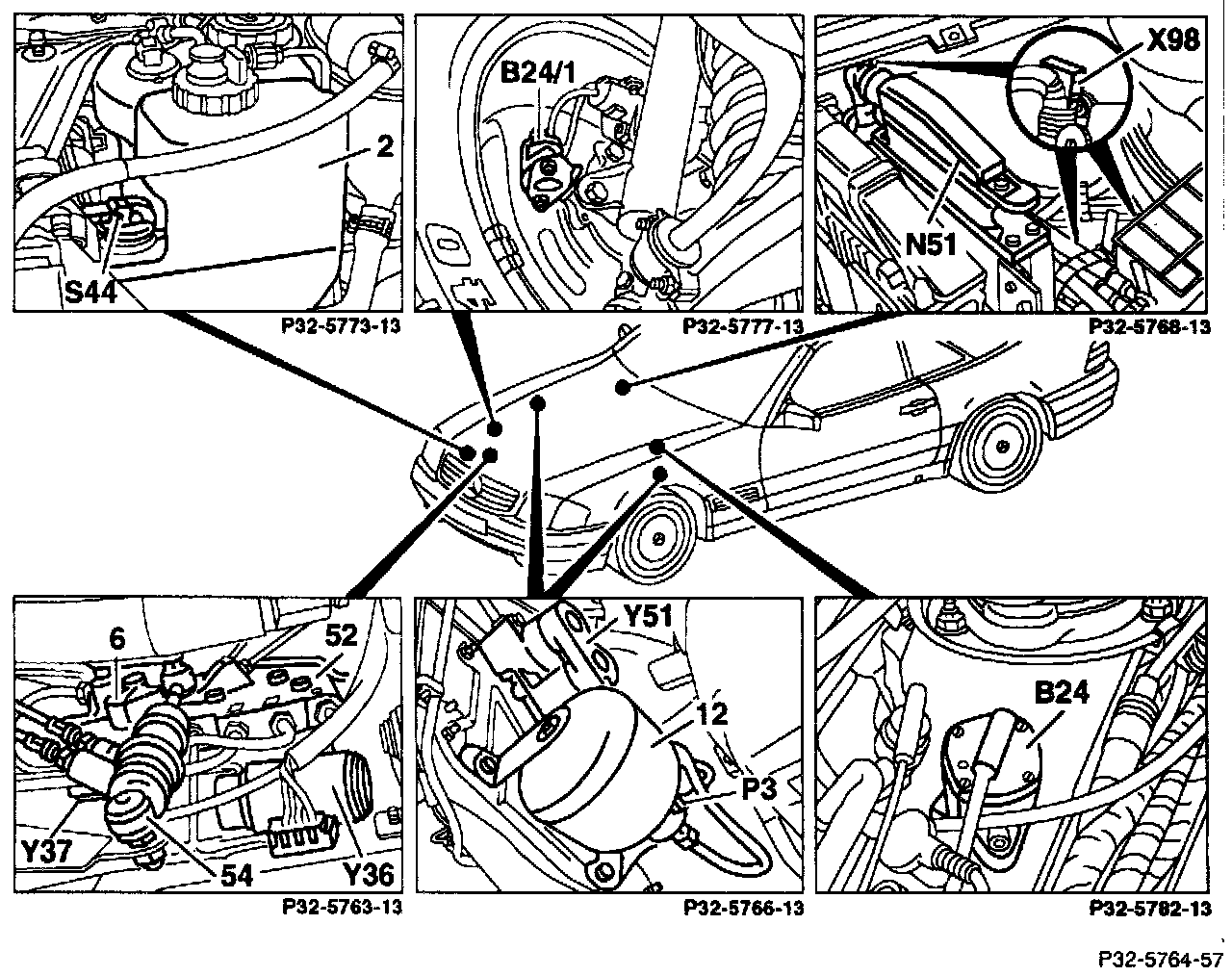

Components on Front Axle and in Engine Compartment



B24 Body acceleration sensor
B24/1 Wheel acceleration sensor
N51 ADS control module
S44 Oil level switch
X98 Comfort/sport switchover test connector (2-pole)
Y51 Left front axle damper valve assembly
Y52 Right front axle damper valve assembly

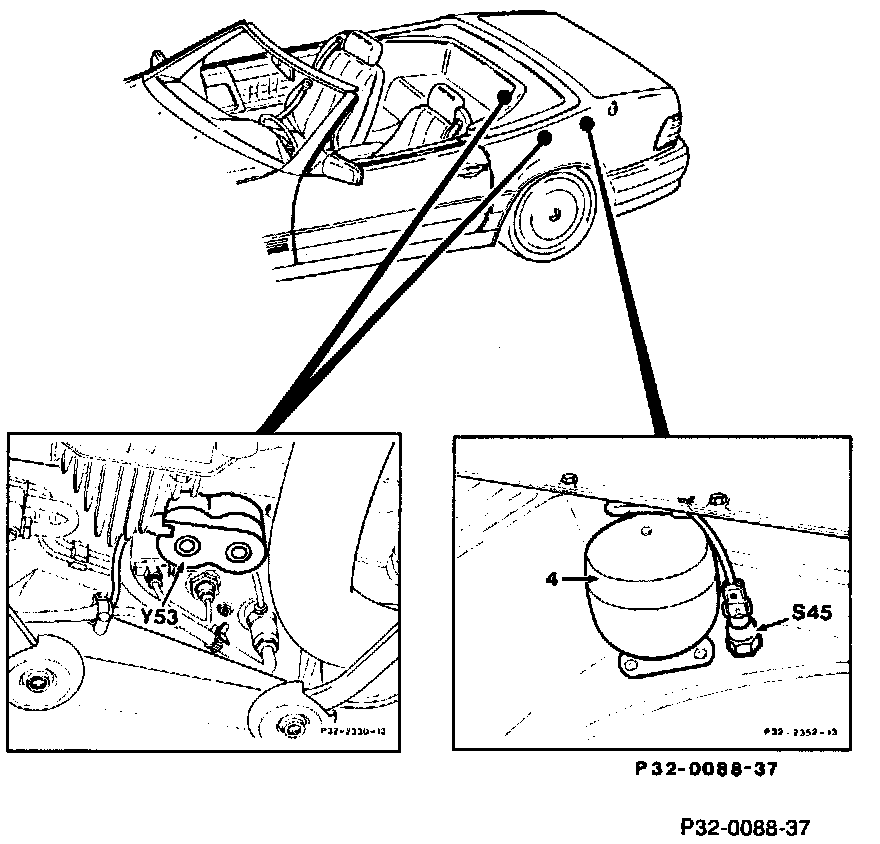

Components in Rear of Vehicle




S45 Load condition switch
Y53 Left rear axle damper valve assembly
Y54 Right rear axle damper valve assembly
