Retrofitting Compact Generator

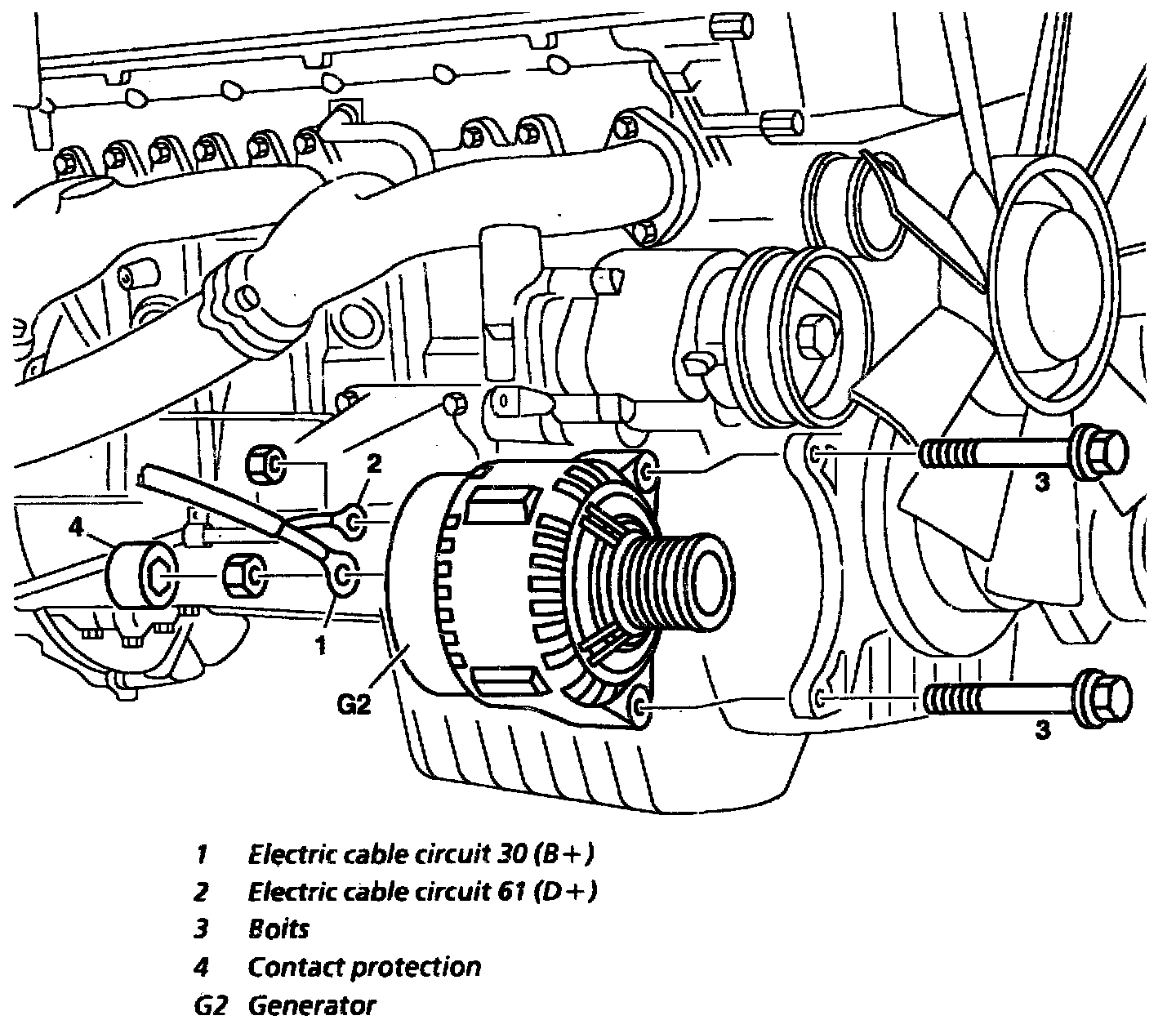

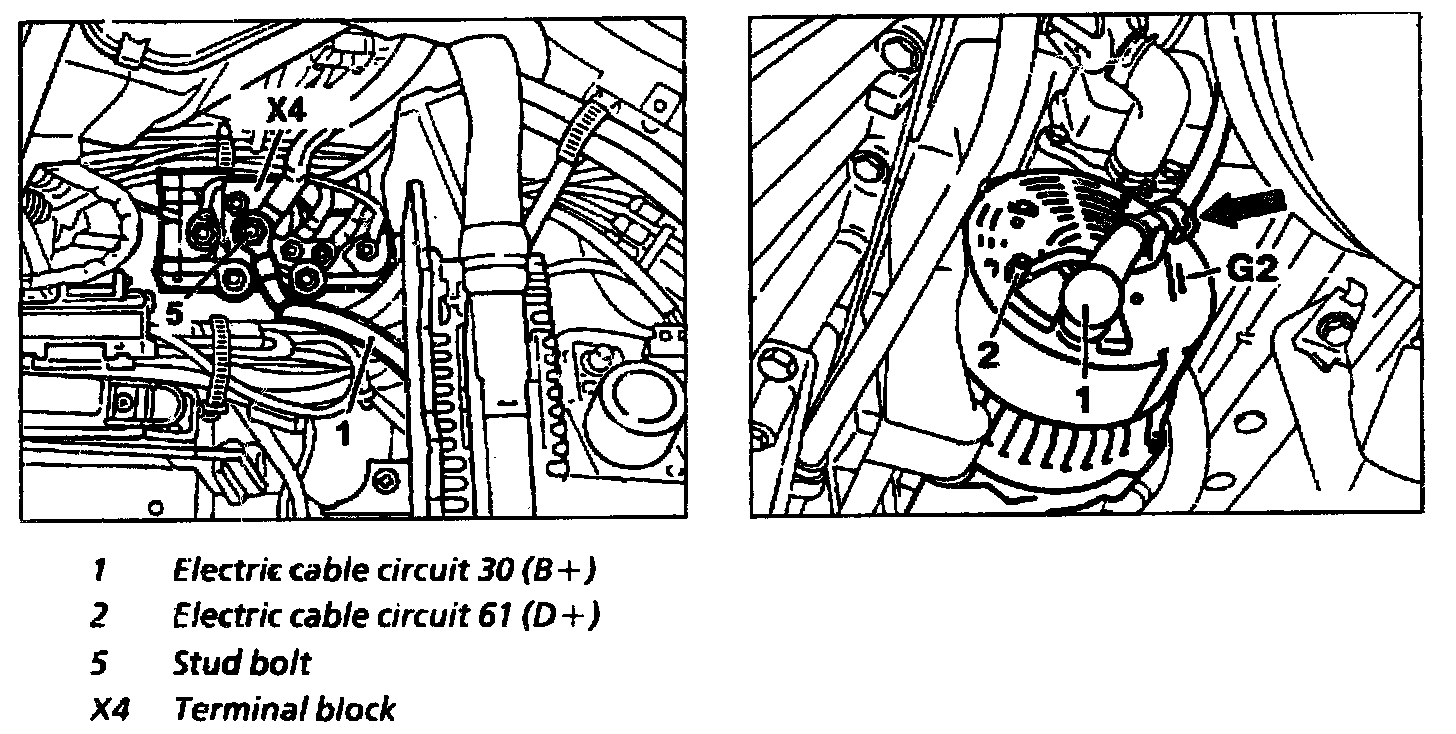

Component Identification

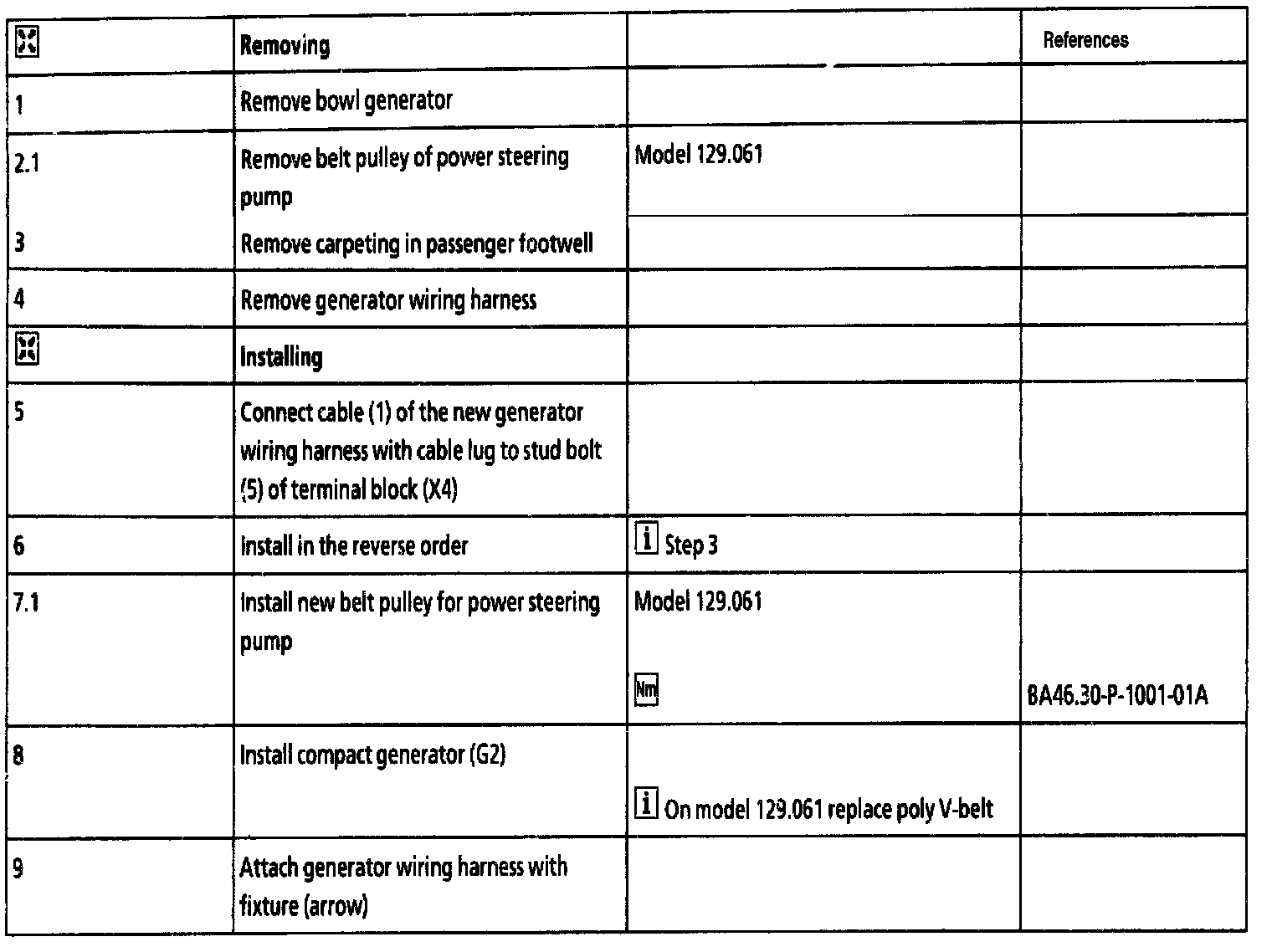

Removing/Installing

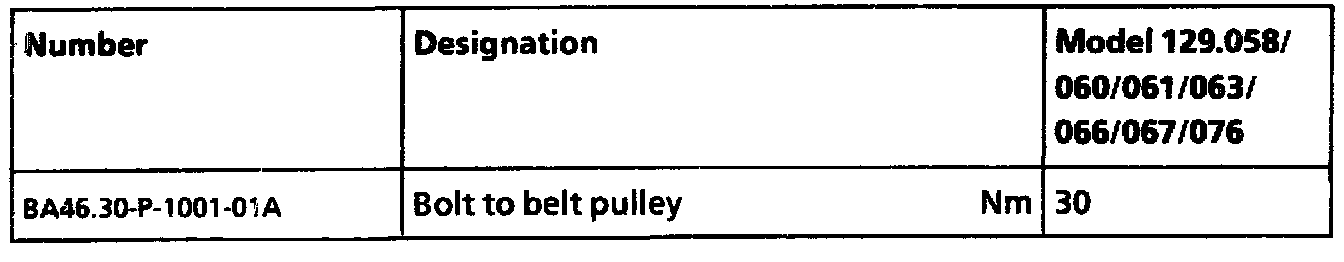

References (BA), Power steering pump

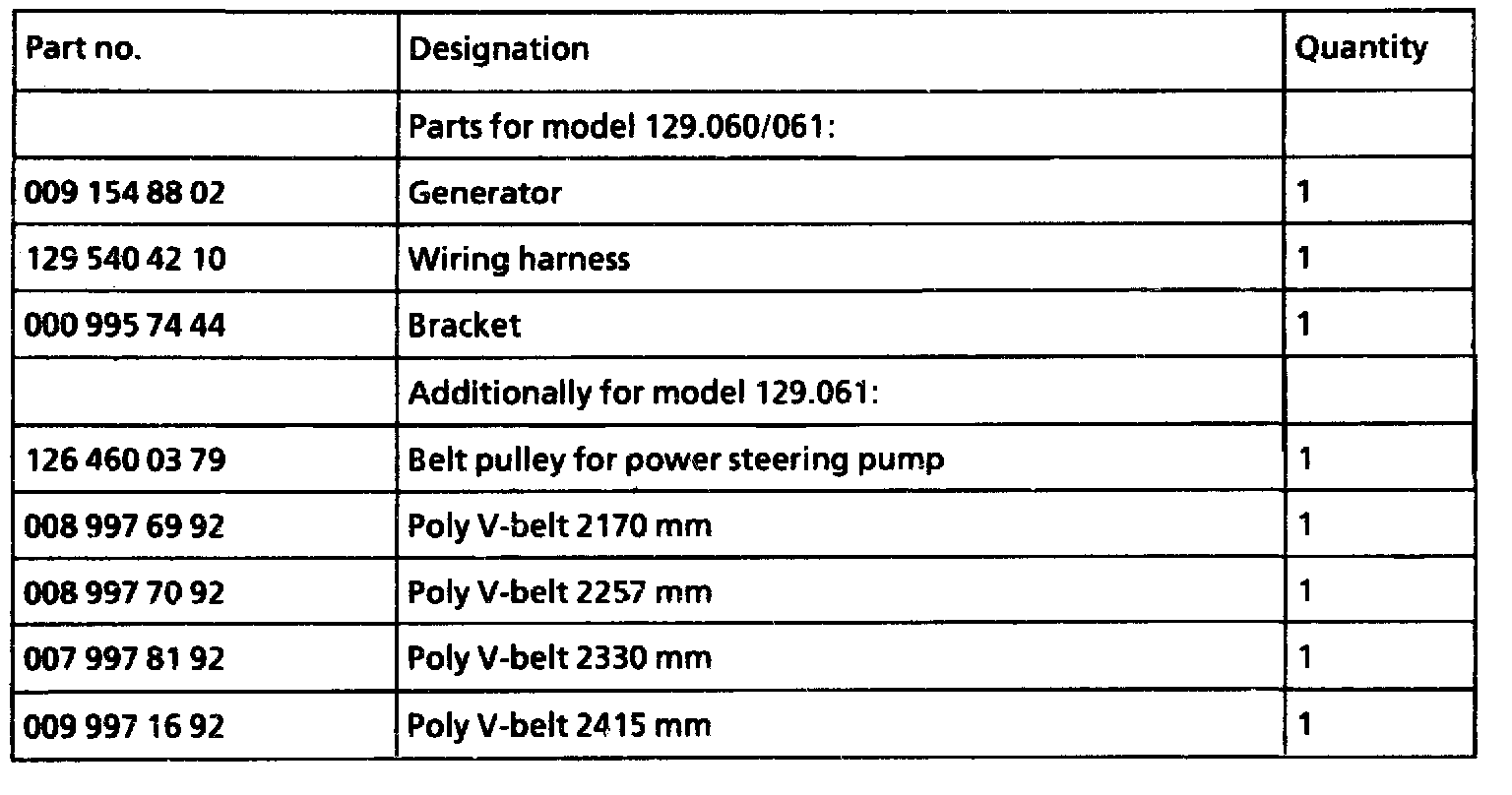

Parts order notes
