Connecting Rod Bolt

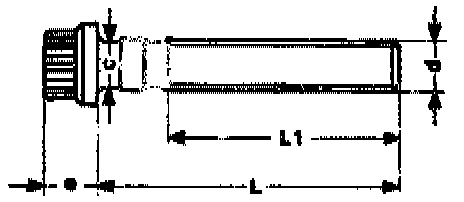

Dimensions Of Connecting Rod Bolt
Thread Pitch: 9 x 1 mm
Length (L) When New: 51.70-52.00 mm
Maximum Length (L): 52.90 mm
