Heater Core Temperature Sensor / Switch: Service and Repair

Control unit
remove. Service and Repair

2-pin connector (B10/2x) or (B10/3x)
detach.

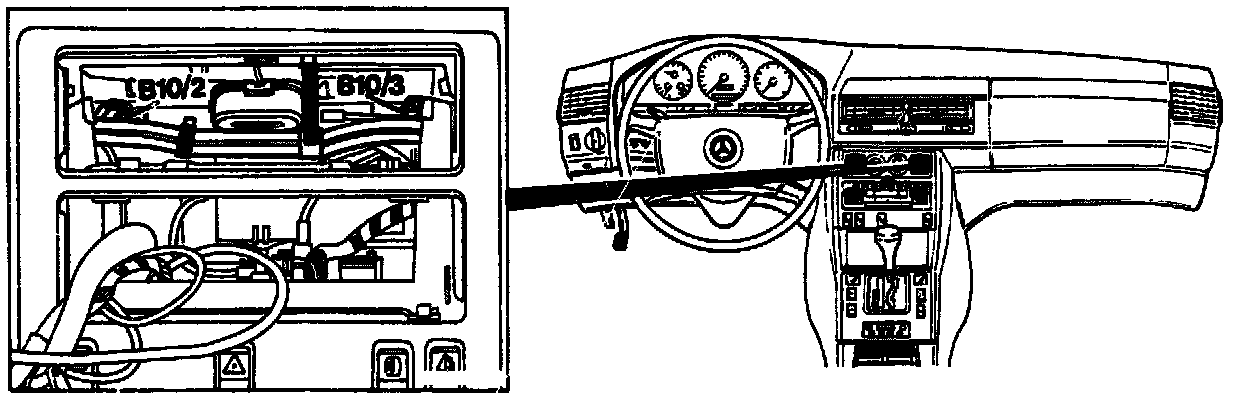

Heat exchanger temperature sensor (B10/2) or (B10/3)
withdraw.

Temperature sensor
test, renew if necessary.

Install
in reverse order.

Automatic climate control
test.
