Cabin Temperature Sensor / Switch: Service and Repair

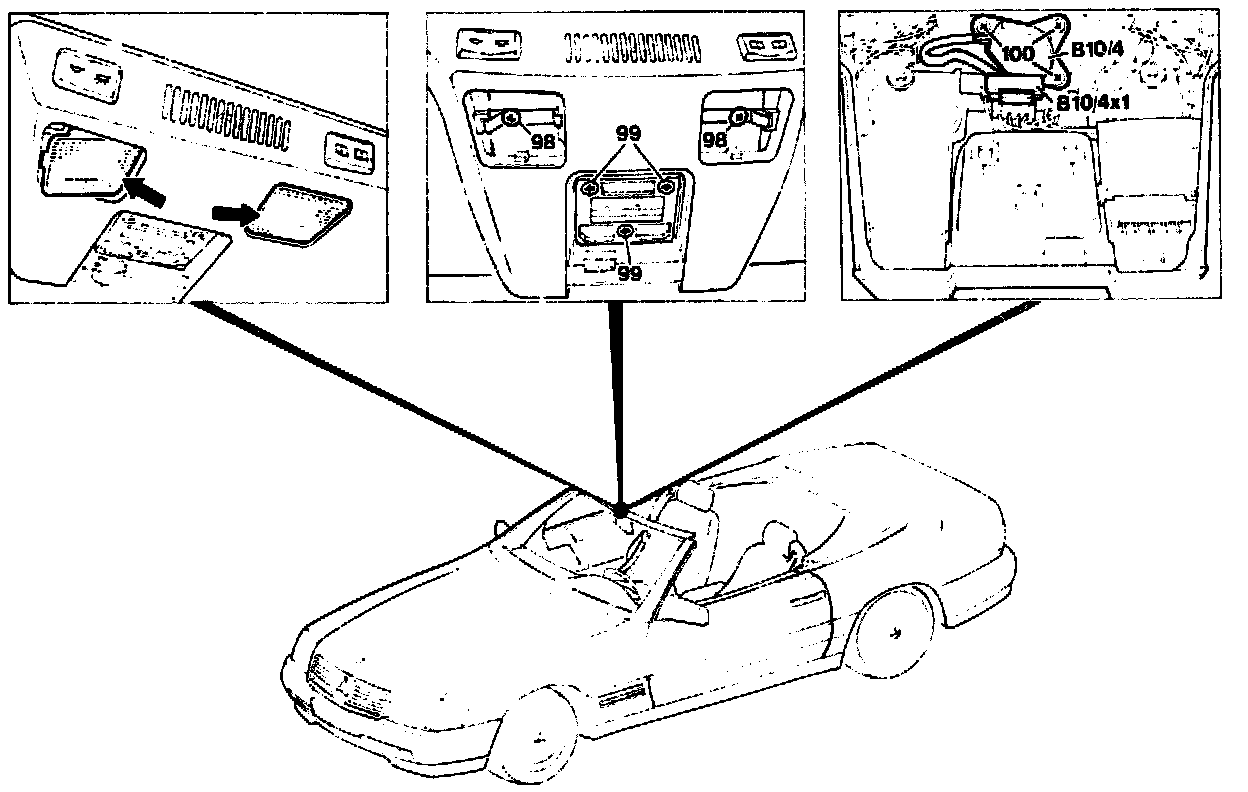

In-Car Temperature Sensor With Aspirator Blower






Interior rear-view mirror
release.

Both interior lamps up the way
press out (arrow).

Bolts (98) and (99)
unscrew.

Bolts (100)
unscrew, detach 4-pin connector (B10/4x1) and withdraw temperature sensor with fresh air blower.

Install
in reverse order.
