Engine - Coolant Temperature Sensor/Switch: Testing and Inspection

Trouble Shooting Procedure:

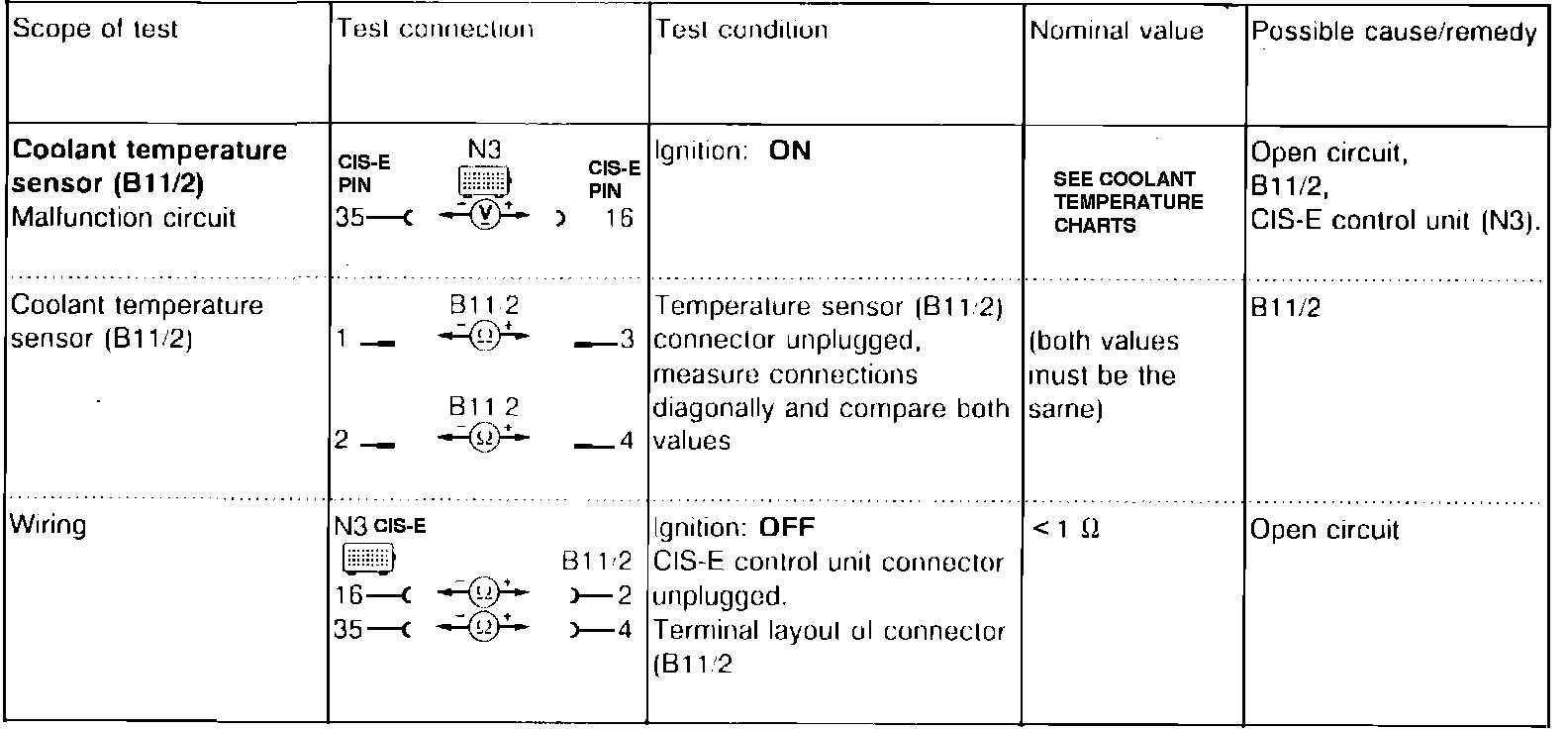

DIAGNOSTIC CHART

Temperature Sensor Table:





COOLANT TEMPERATURE SENSOR TABLE

Fig. 39 Coolant Temperature Sensor:





COOLANT TEMPERATURE SENSOR
