Testing (ETP Test Steps)

For explanation of symbols used within these tests, Connection and Use of Test Equipment

For component and connector locations, Component/Connector Locations

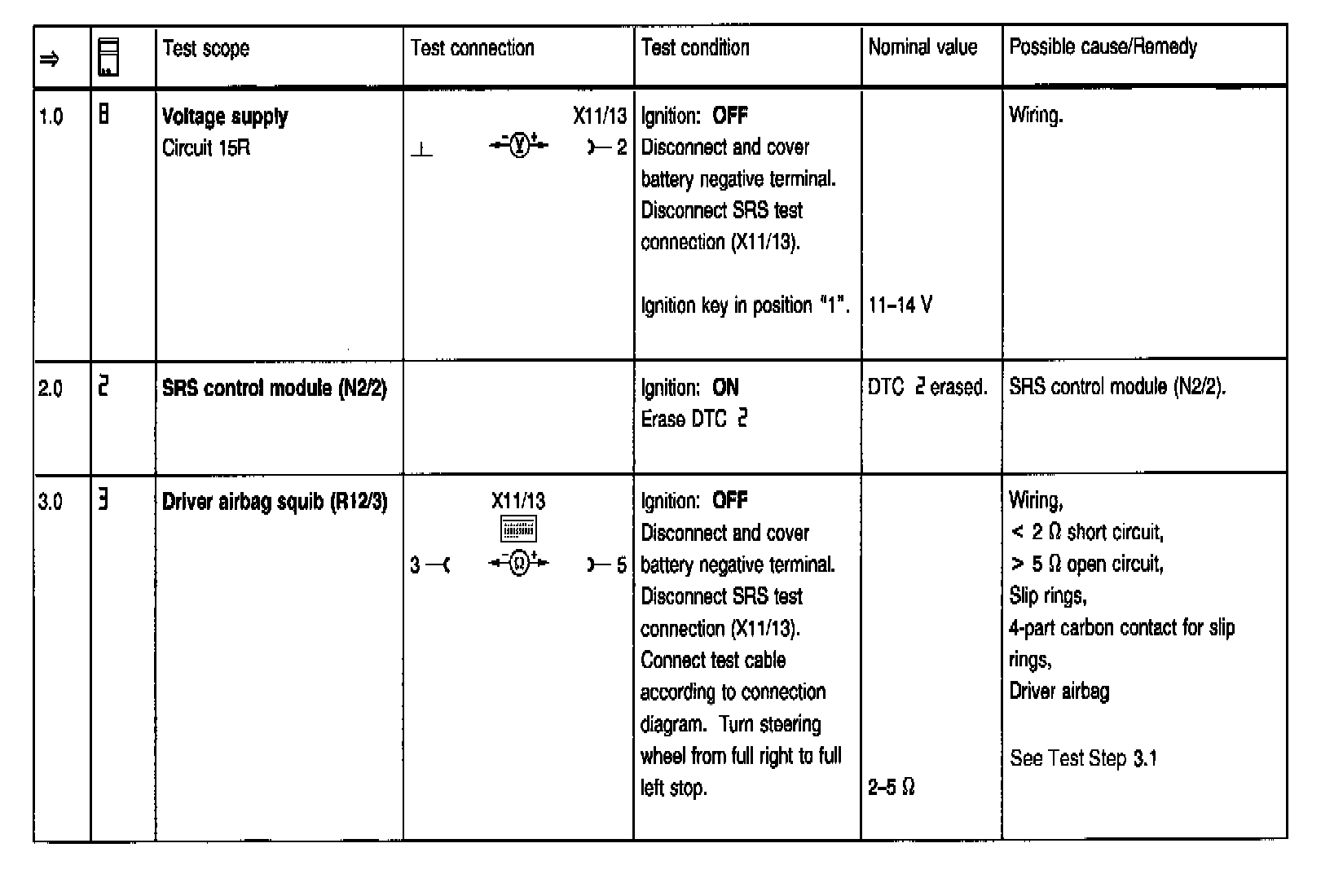

Test Steps 1.0, 2.0 & 3.0:

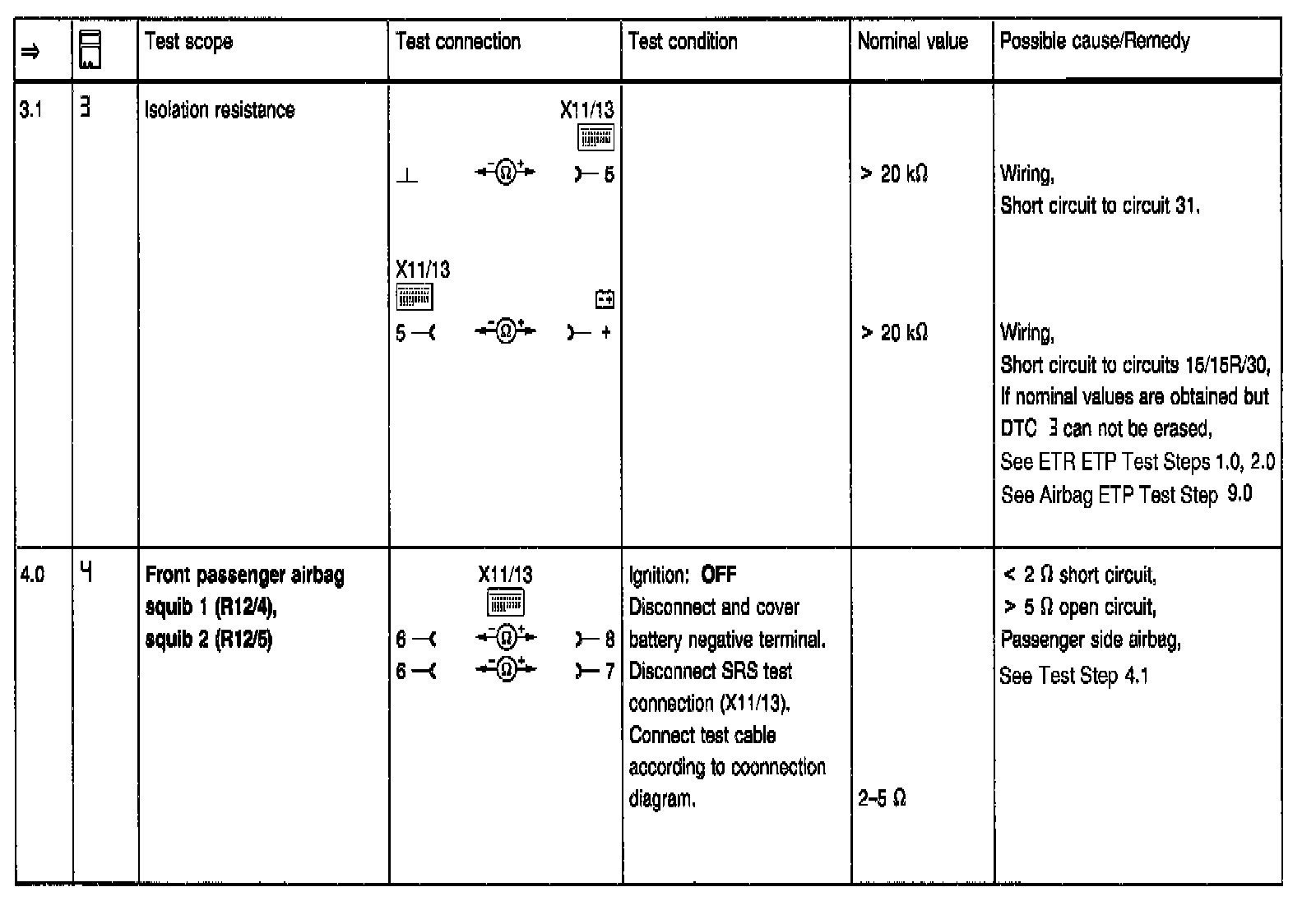

Test Steps 3.1 & 4.0:

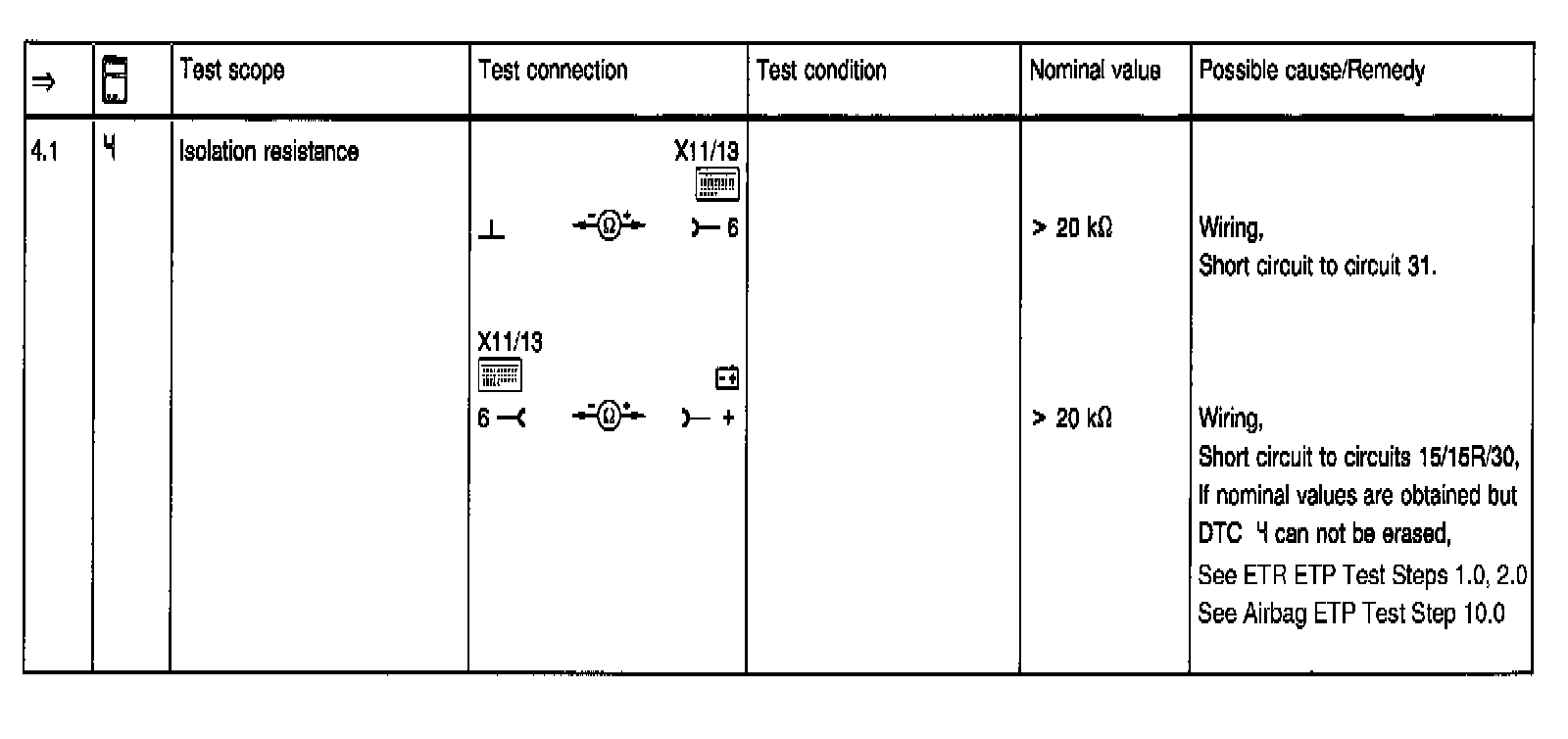

Test Step 4.1:

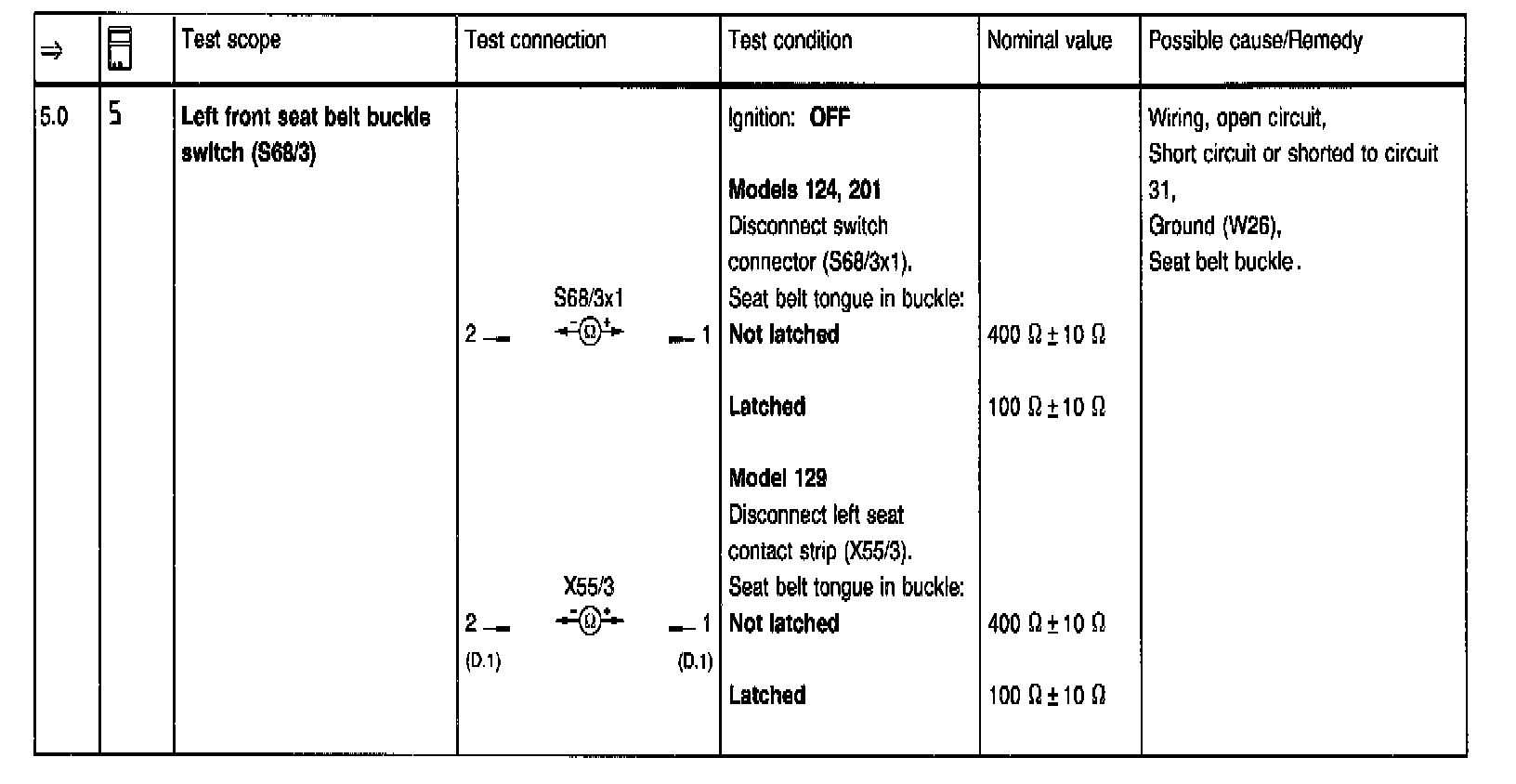

Test Step 5.0:

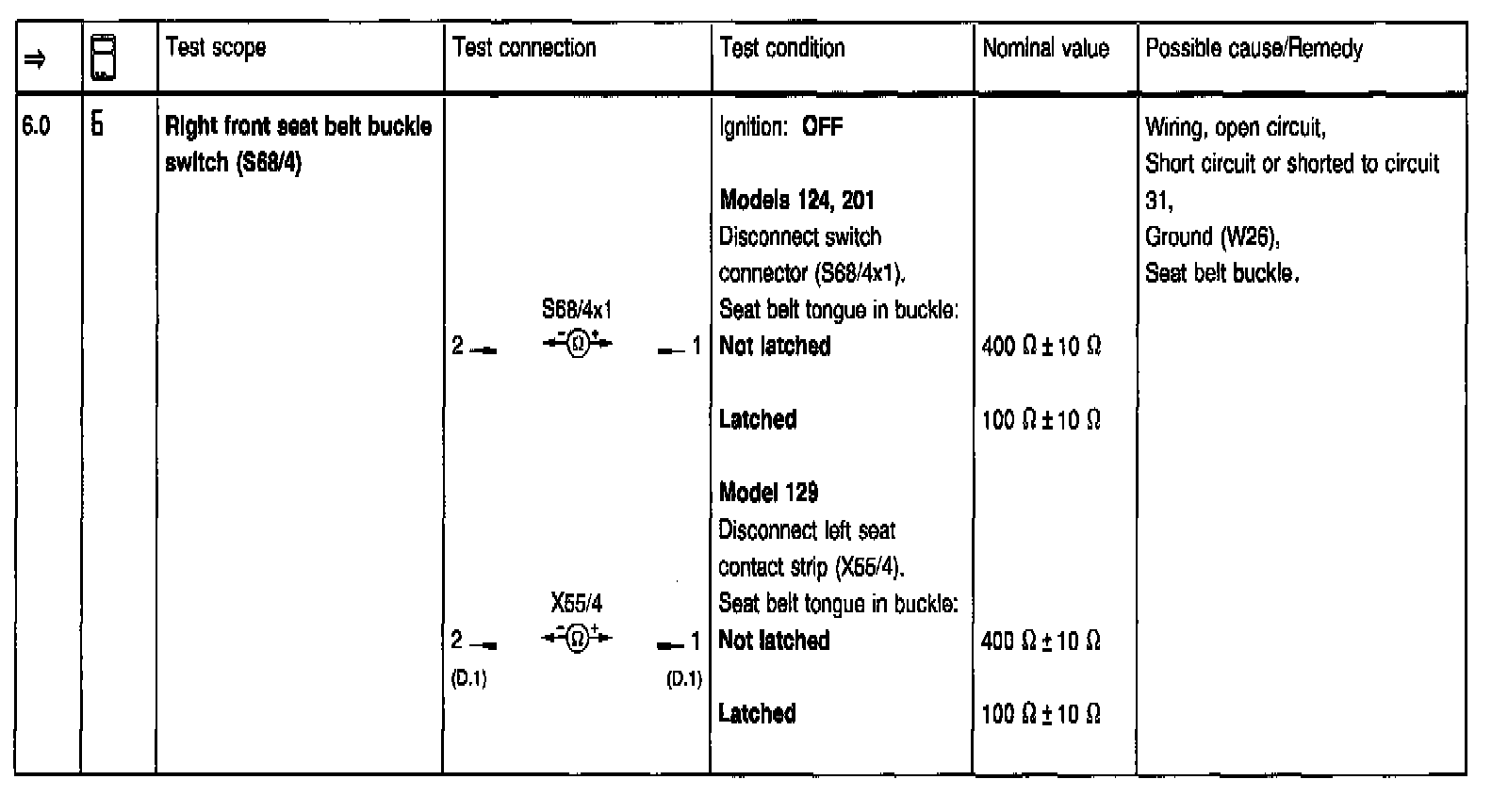

Test Step 6.0:

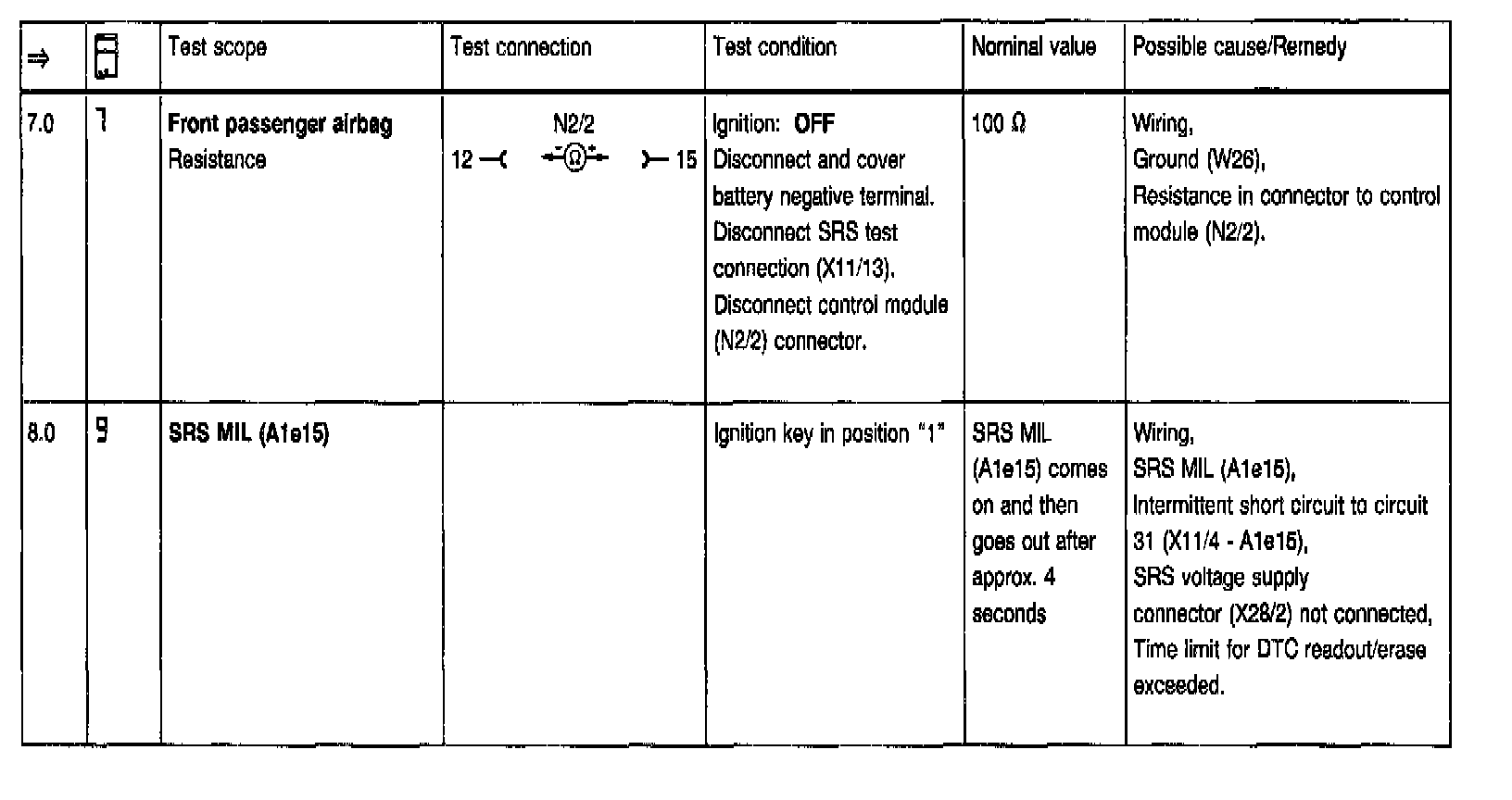

Test Steps 7.0 & 8.0:

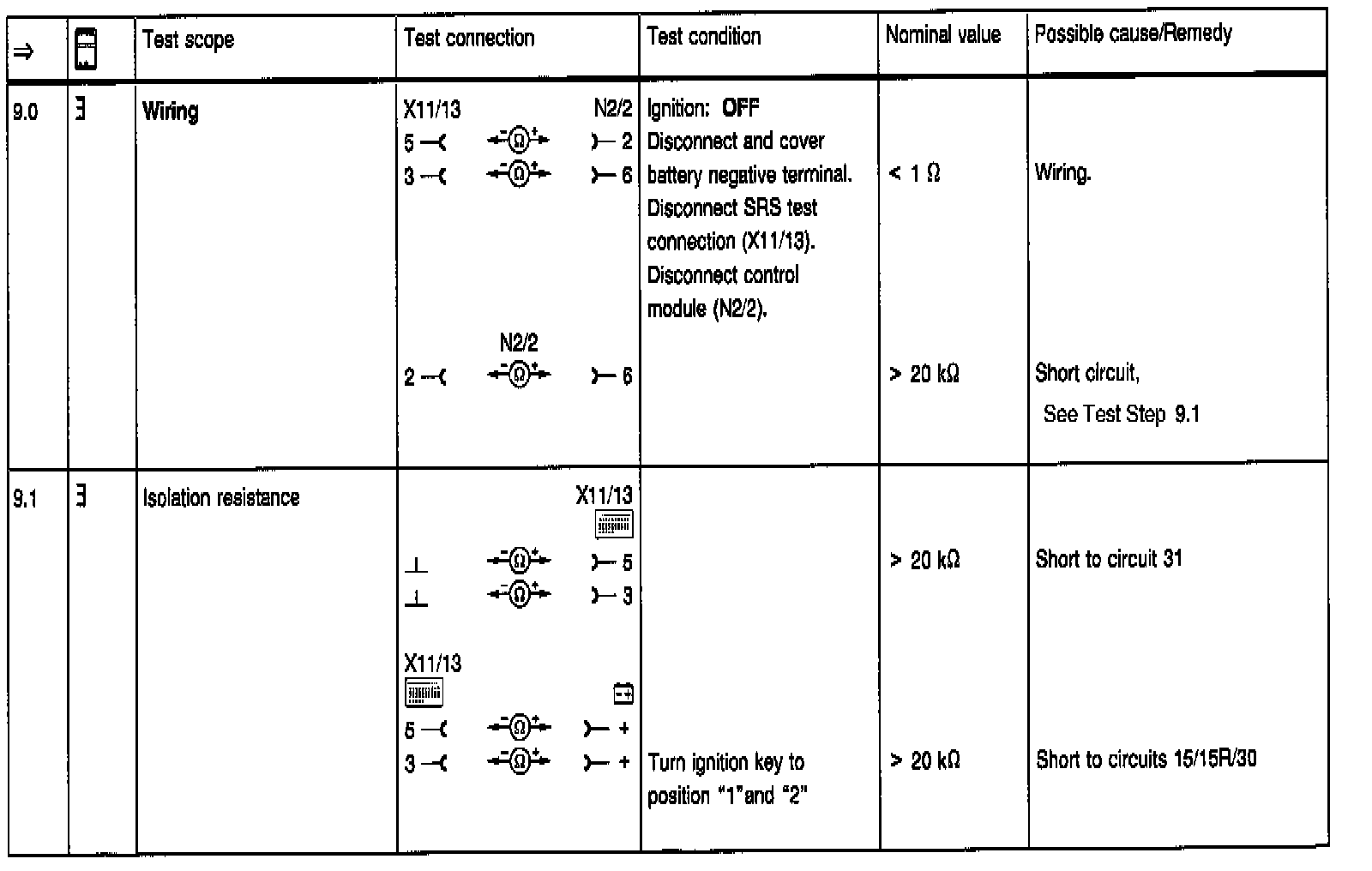

Test Steps 9.0 & 9.1:

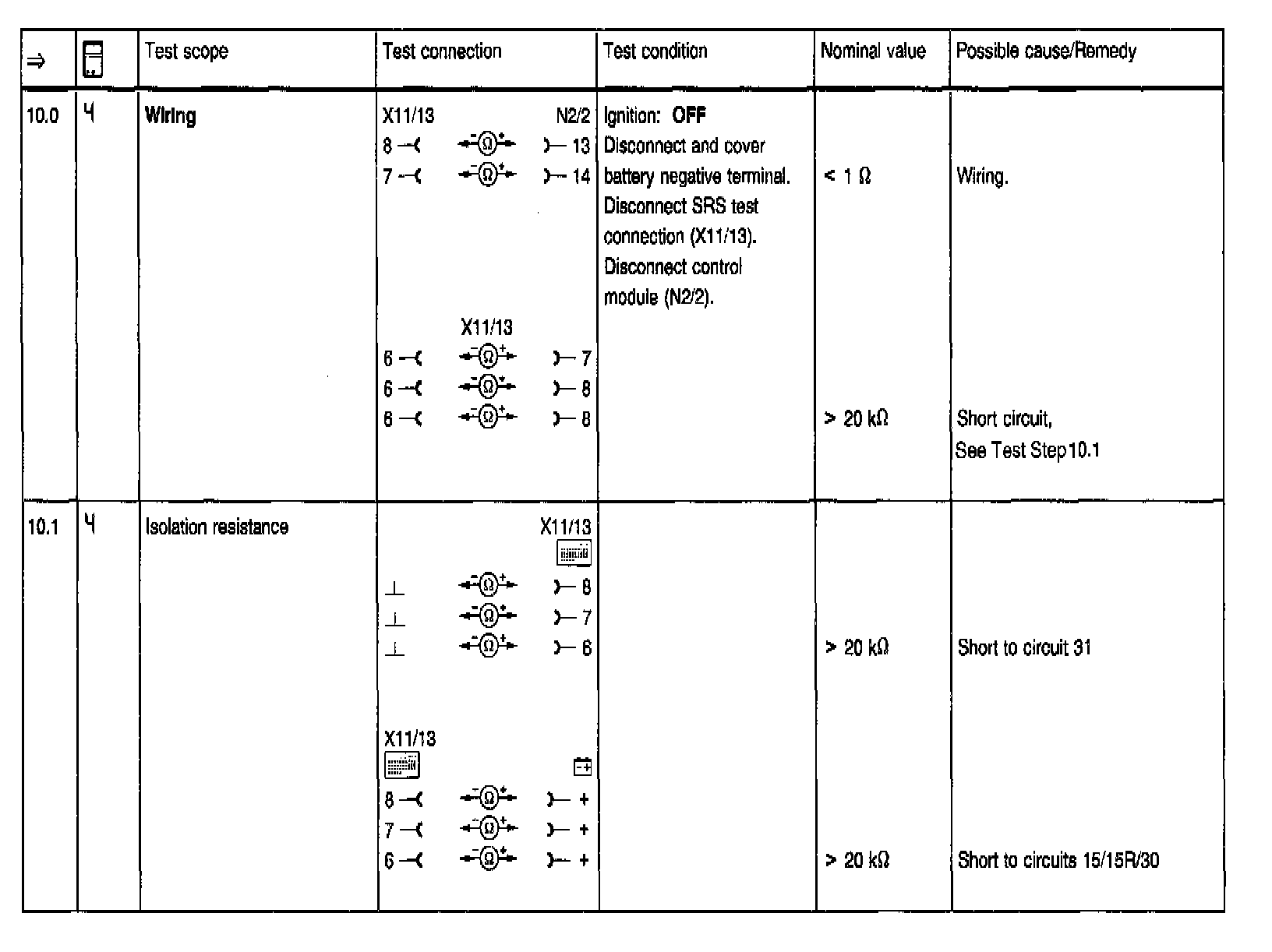

Test Steps 10.0 & 10.1:
