From Below

NOTE:

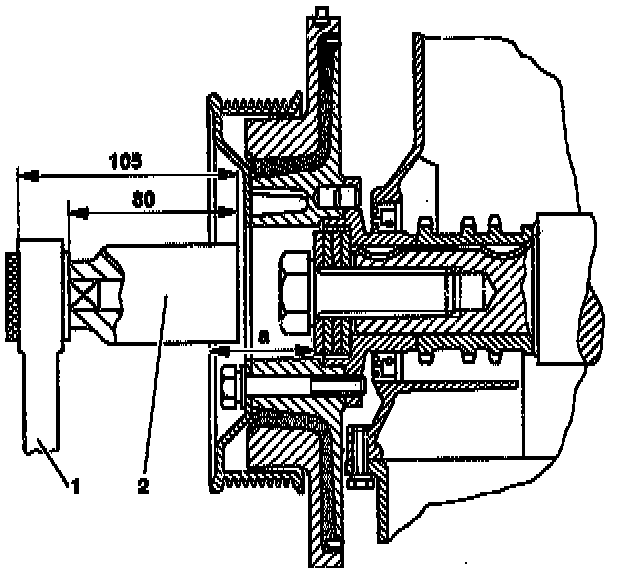

^ Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
^ Size a = 38 mm

1. Remove fan cowl.
2. Raise vehicle on lift platform.
3. Remove bottom engine compartment panel.

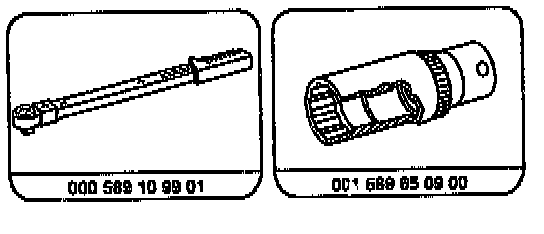

4. Rotate crankshaft with torque wrench (1) and wrench socket (2) 001 589 65 09 00 WAF 27 in direction of rotation of engine.
