Fuel Quantity Comparison Test

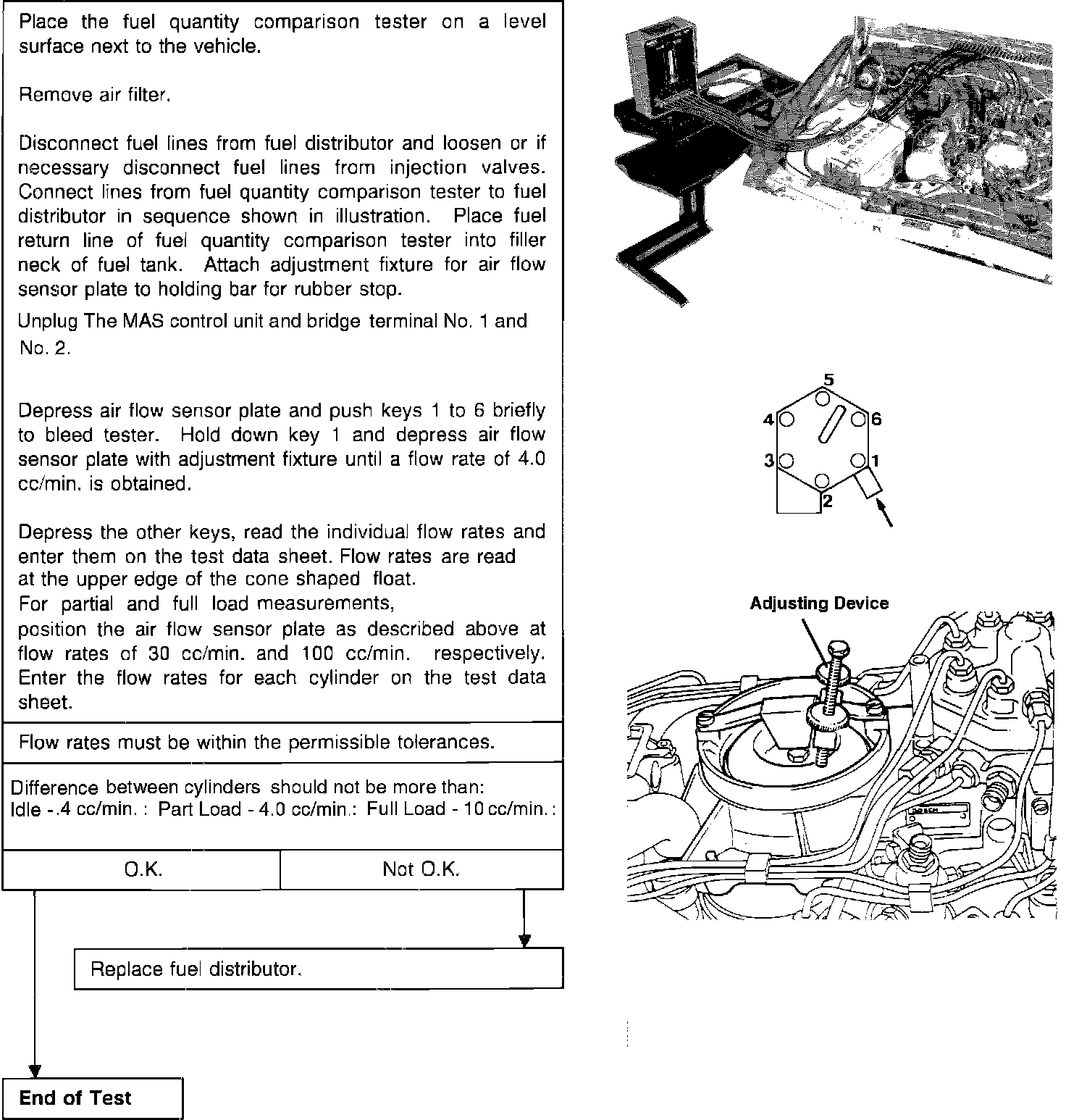

Fuel Quantity Comparison Test:





NOTE: Because of the construction of the metal fuel injector lines only the manufacture's method for conducting the FUEL QUANTITY COMPARISON TEST is covered in this procedure.
