CAN Bus (CC) PE00.19-U-2200YD
CAN Bus (CC) PE00.19-U-2200YD
CC

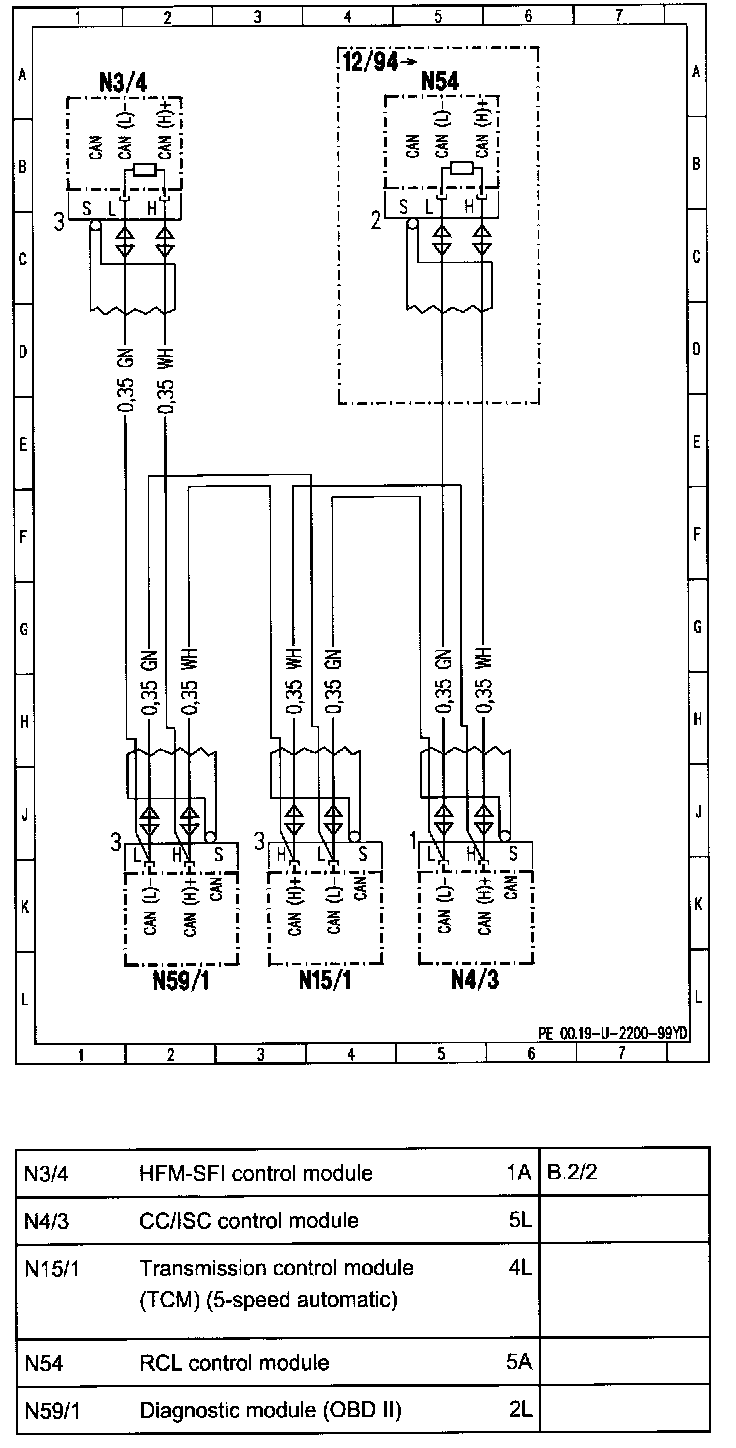

Wiring Diagram
PE00.19-U-2200YD:

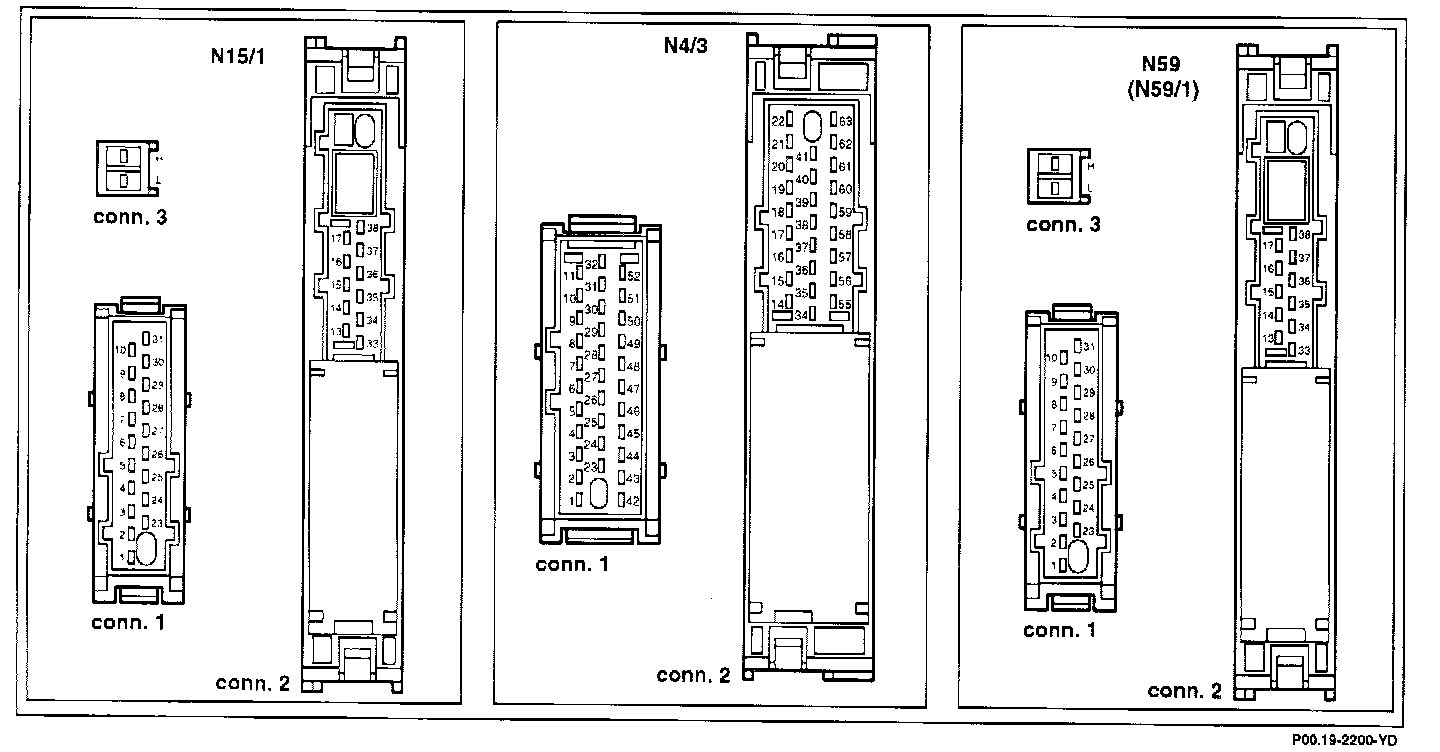

Connector Assignment:

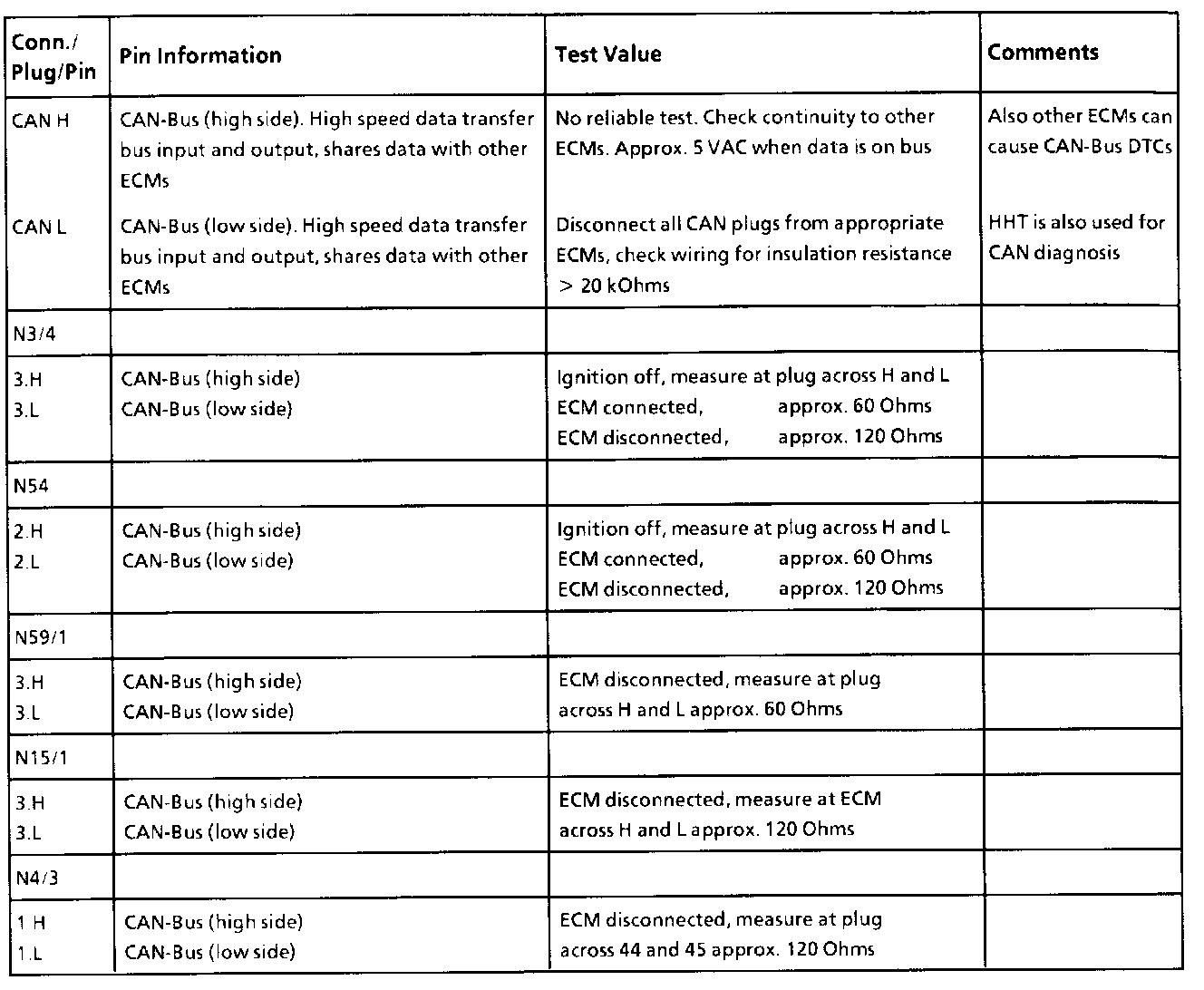

Pin Information:
All values measured to ground unless otherwise noted.
