Home >> Mercedes Benz >> 1990 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Central Electronics Box >> Service and Repair >> Components in Module Box, Identification

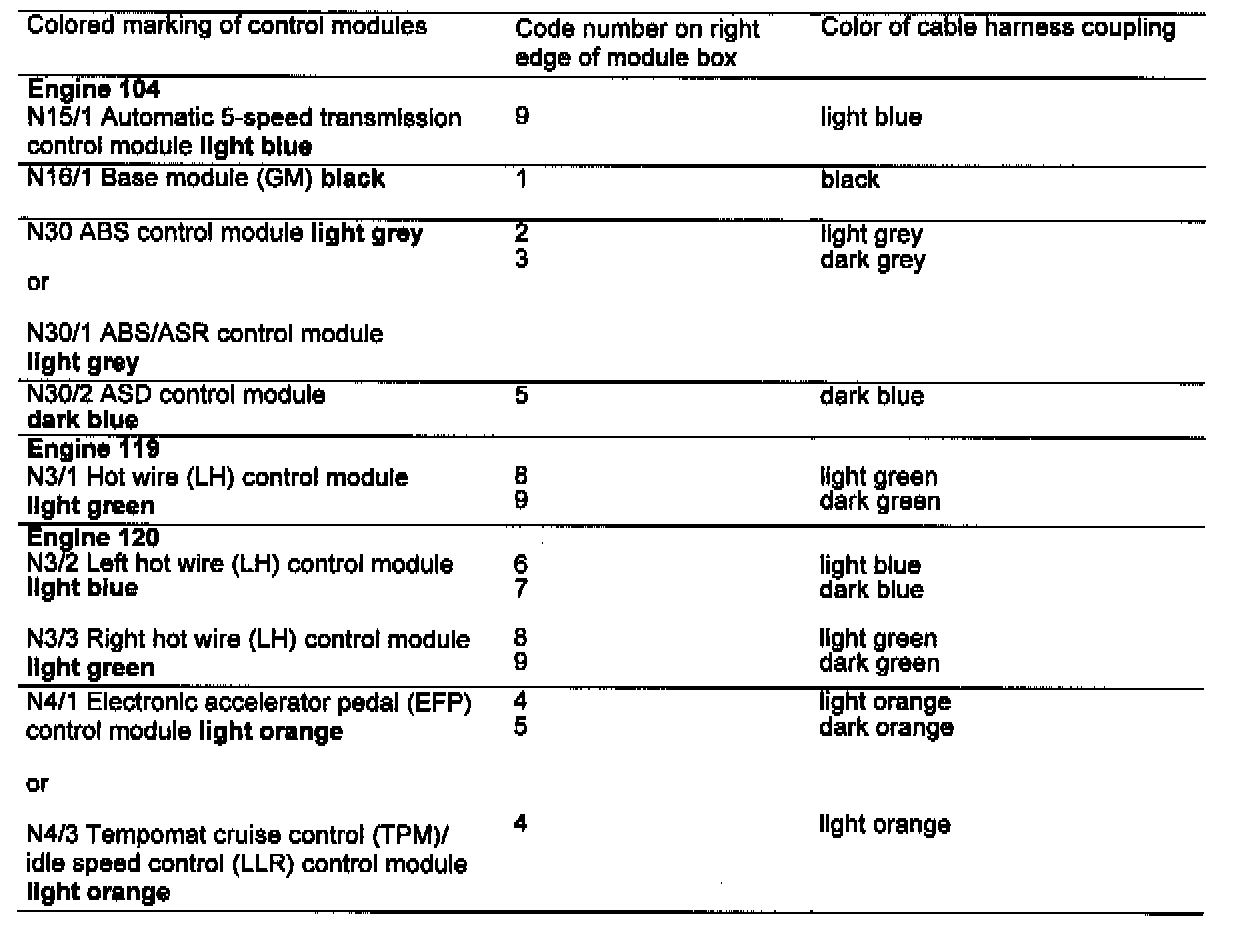

Components in Module Box, Identification

Identification:
