Headlamp Alignment Actuator: Service and Repair




Replacing Actuator For Headlamp Range Adjustment, Except Models with Xenon Headlamps

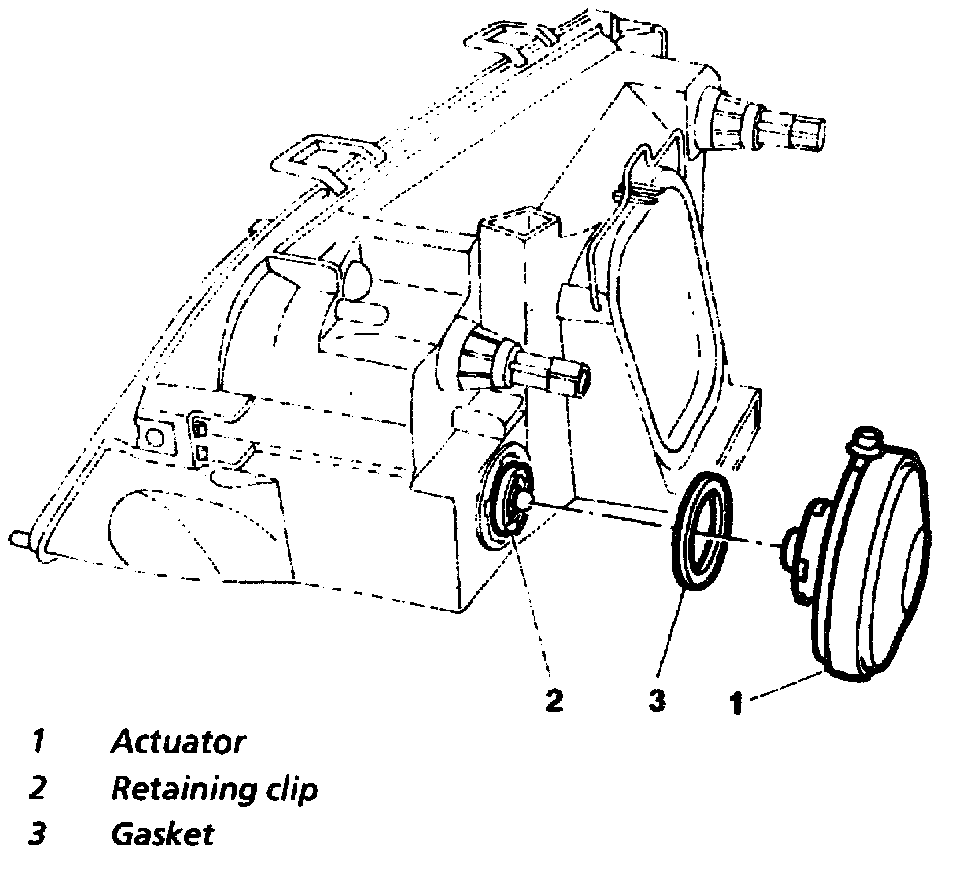

Component Identification:

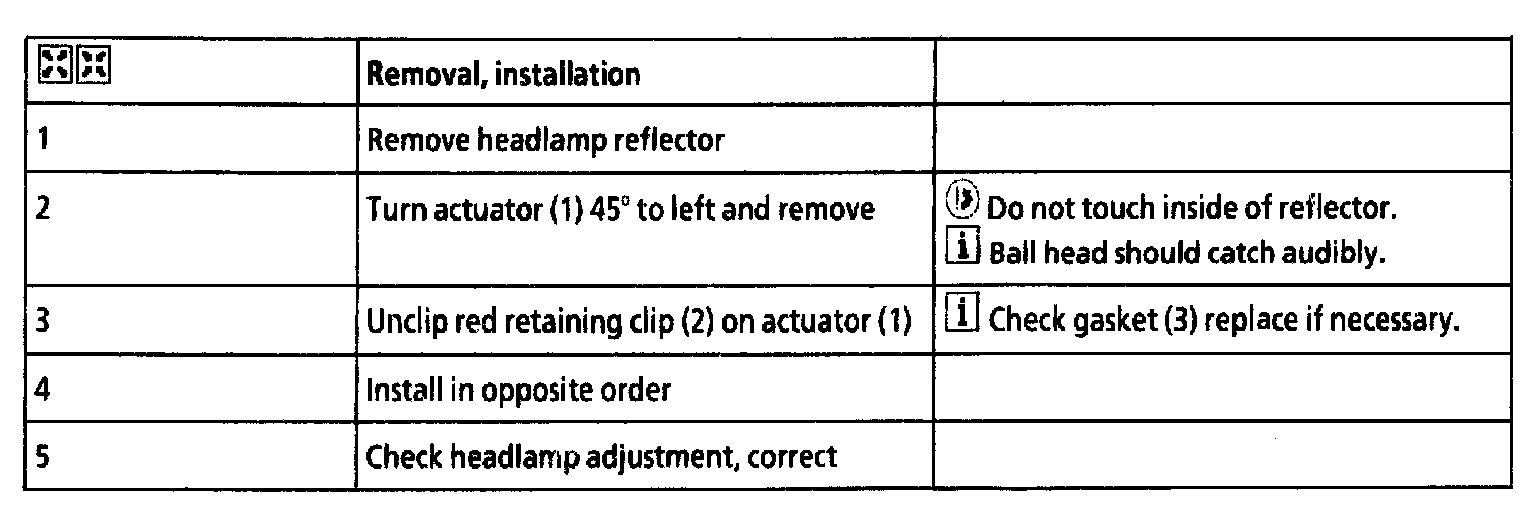

Removal/Installation:
