Component Locations

Electrical Test Program - Component Locations

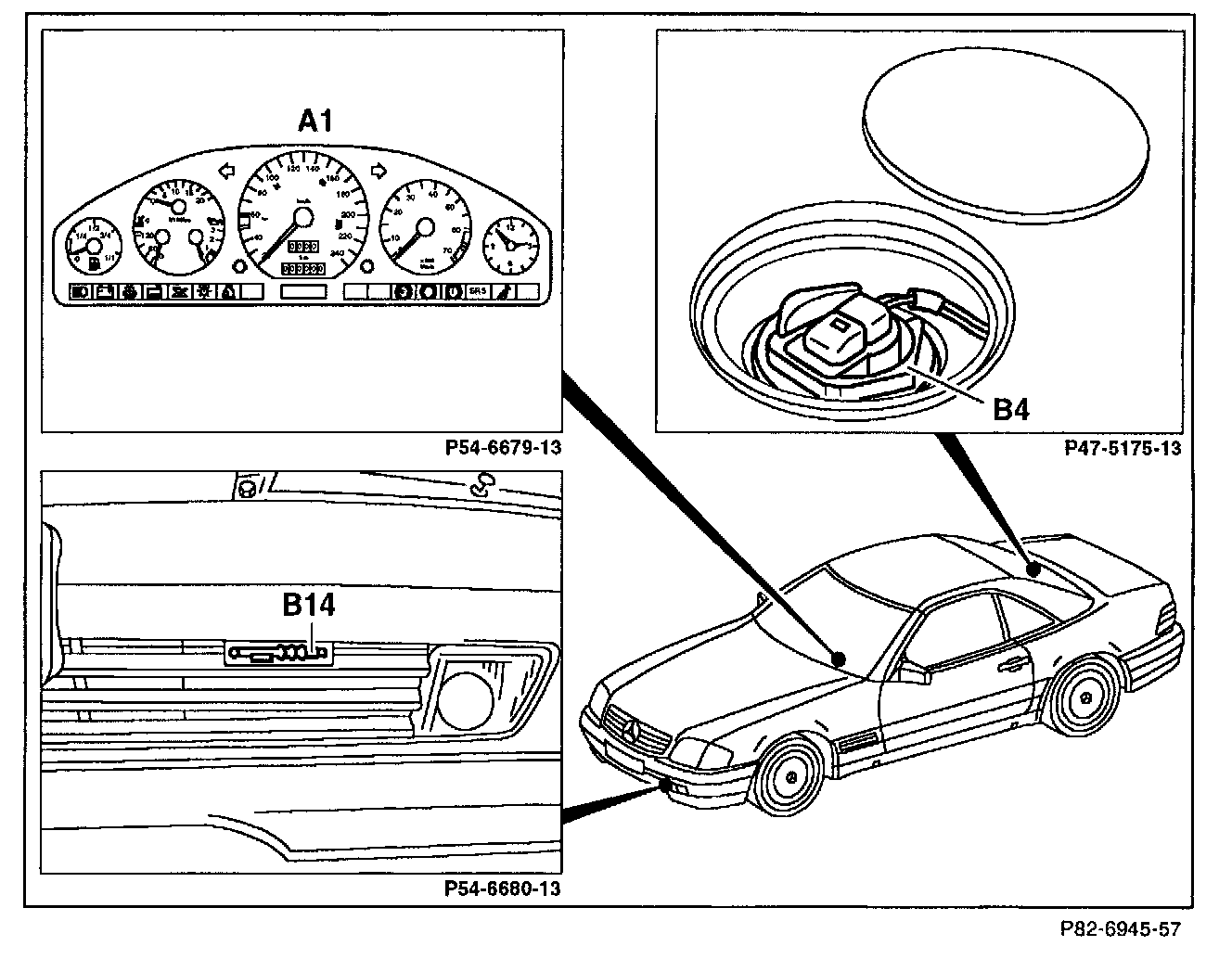

Figure 1
A1 Instrument cluster
B4 Fuel level sensor
B14 Outside temperature indicator temperature sensor

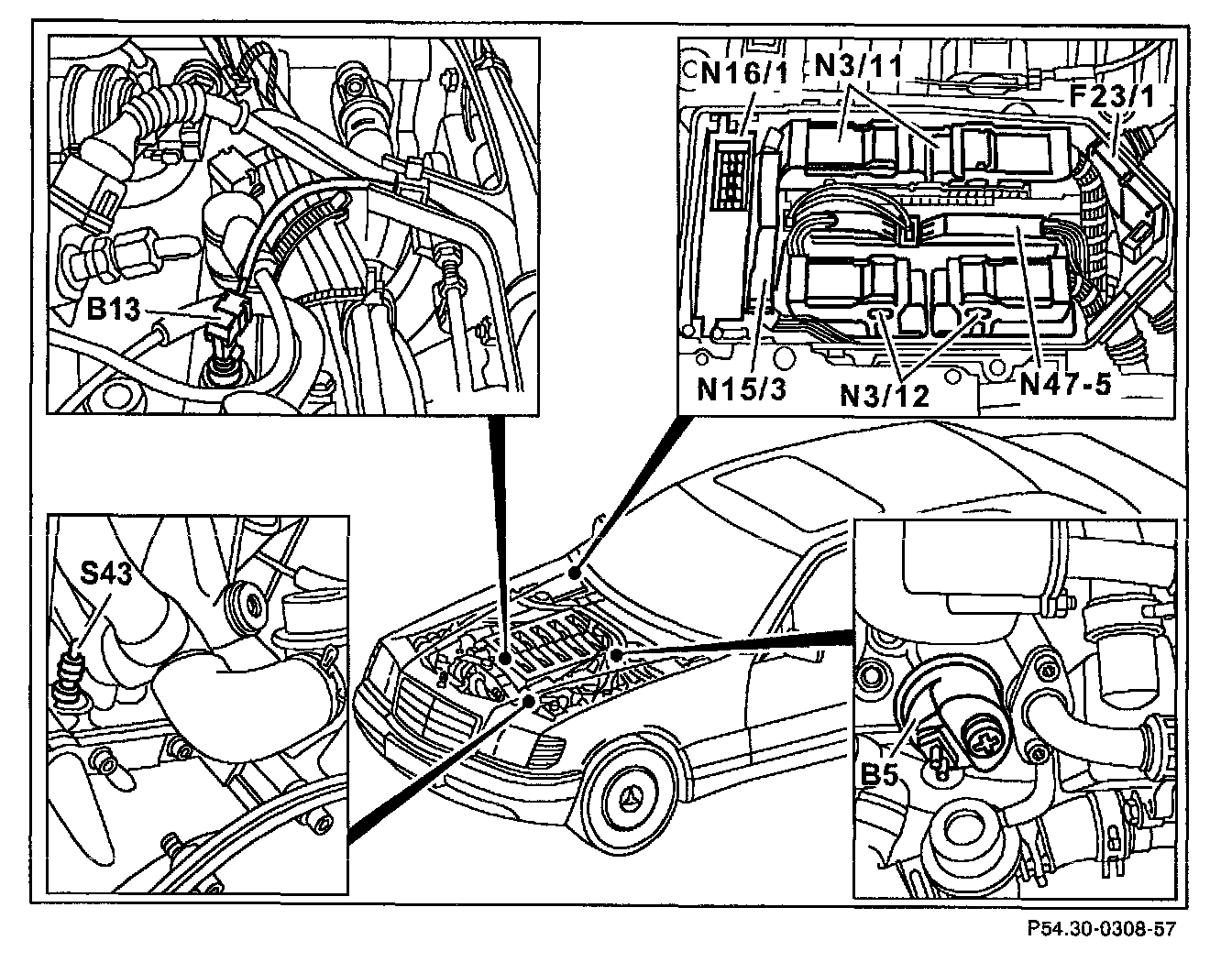

Figure 2
Vehicles with control module box (plastic)
B5 Oil pressure sensor
B13 ECT gauge sensor
N3/11 Left engine control module (ME-SFI)
N3/12 Right engine control module (ME-SFI)
N47-5 ESP/SPS control module
S43 Oil level switch
