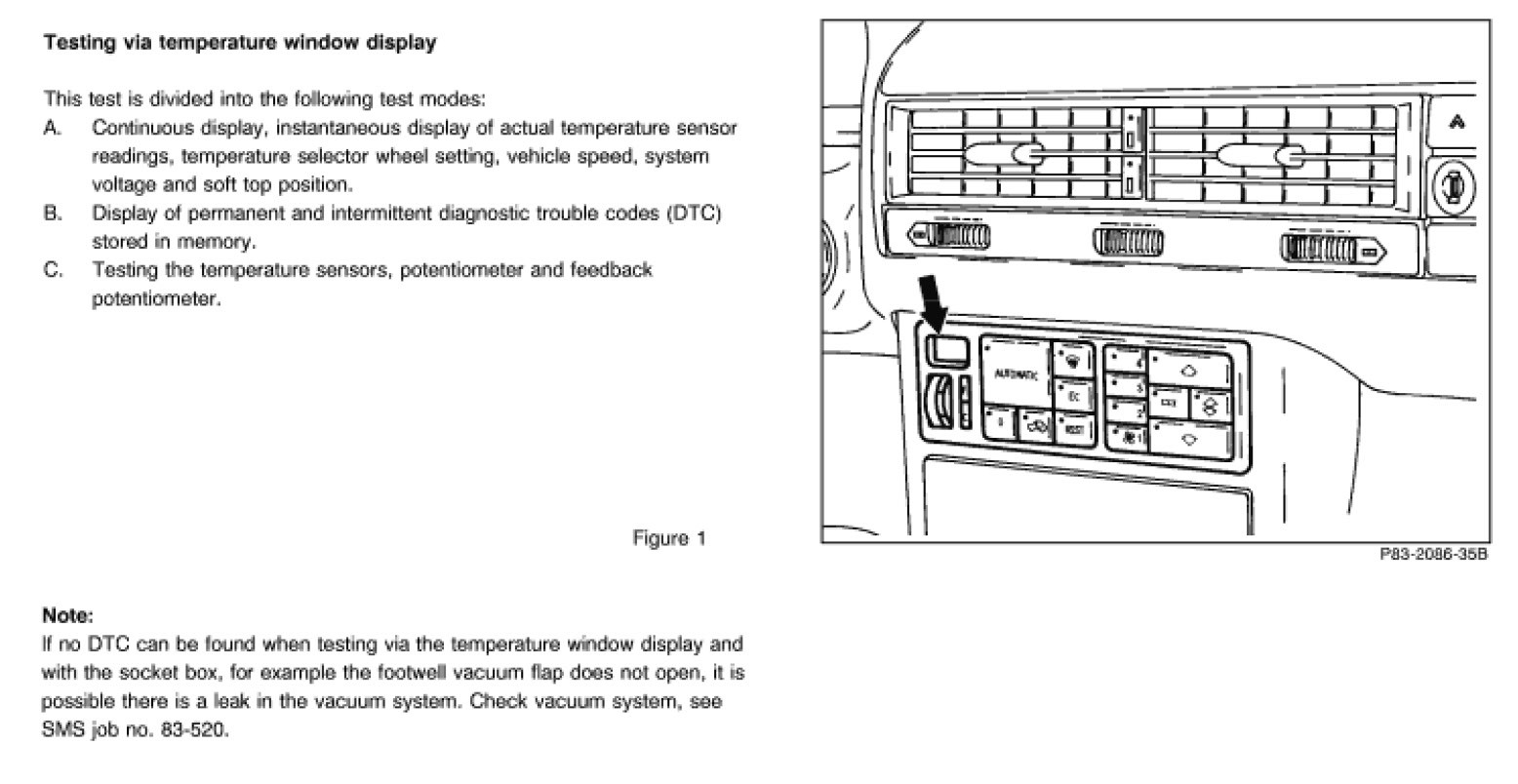

Displaying & Reading Trouble Codes (DTC Memory)
Air Conditioning (A/C)
Models 129 up to MY 1997
Diagnostic trouble Code Memory [11]

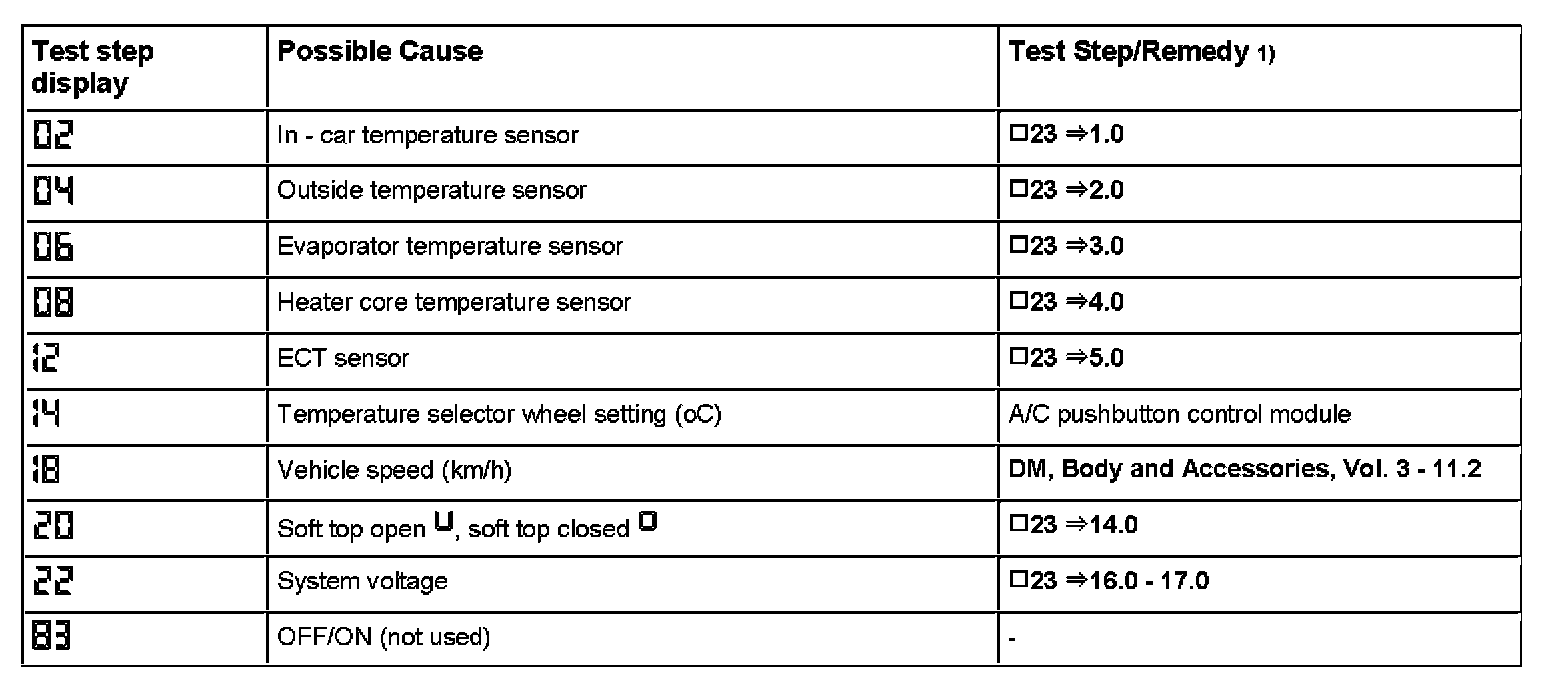

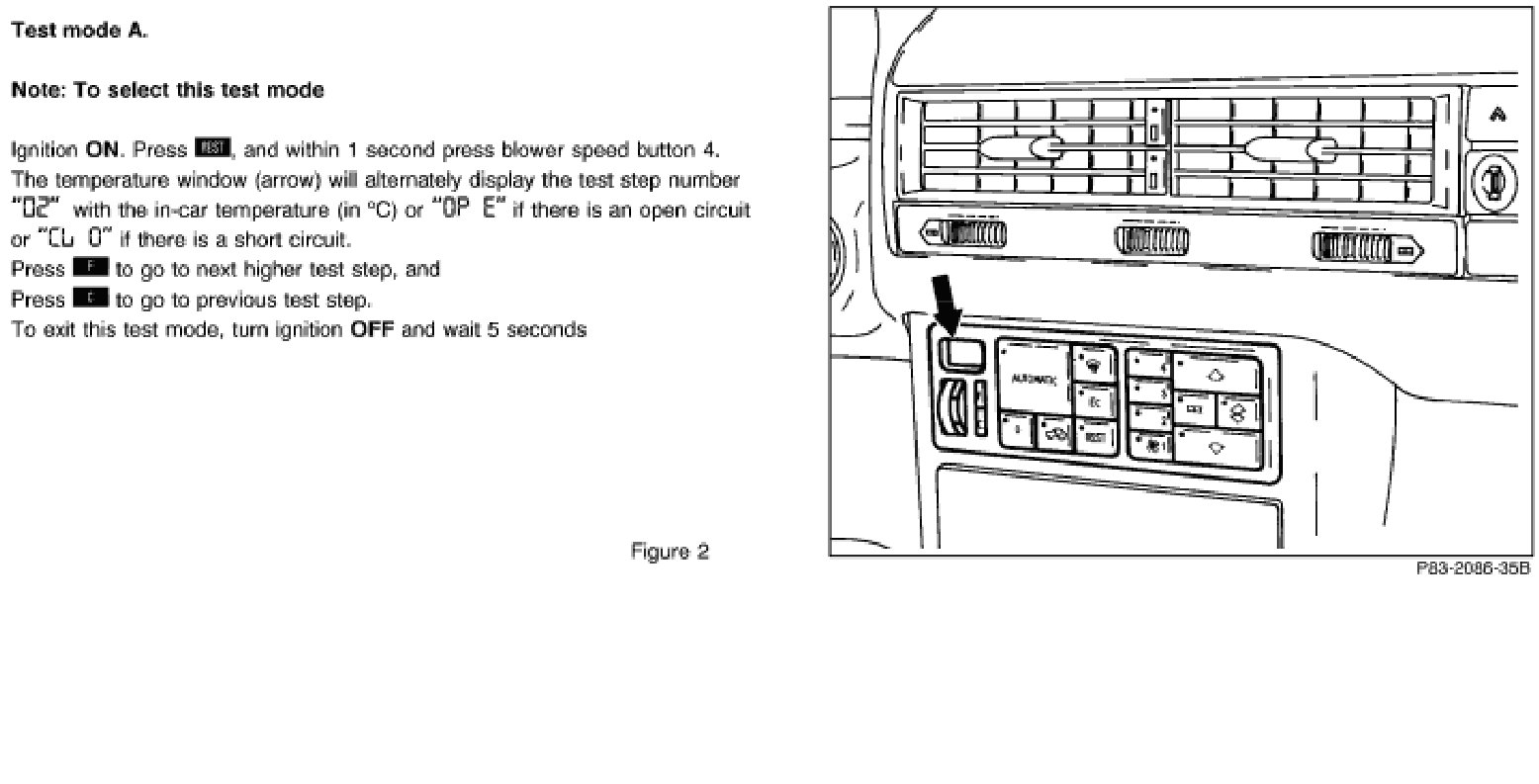

Test Mode A
02 - 83:

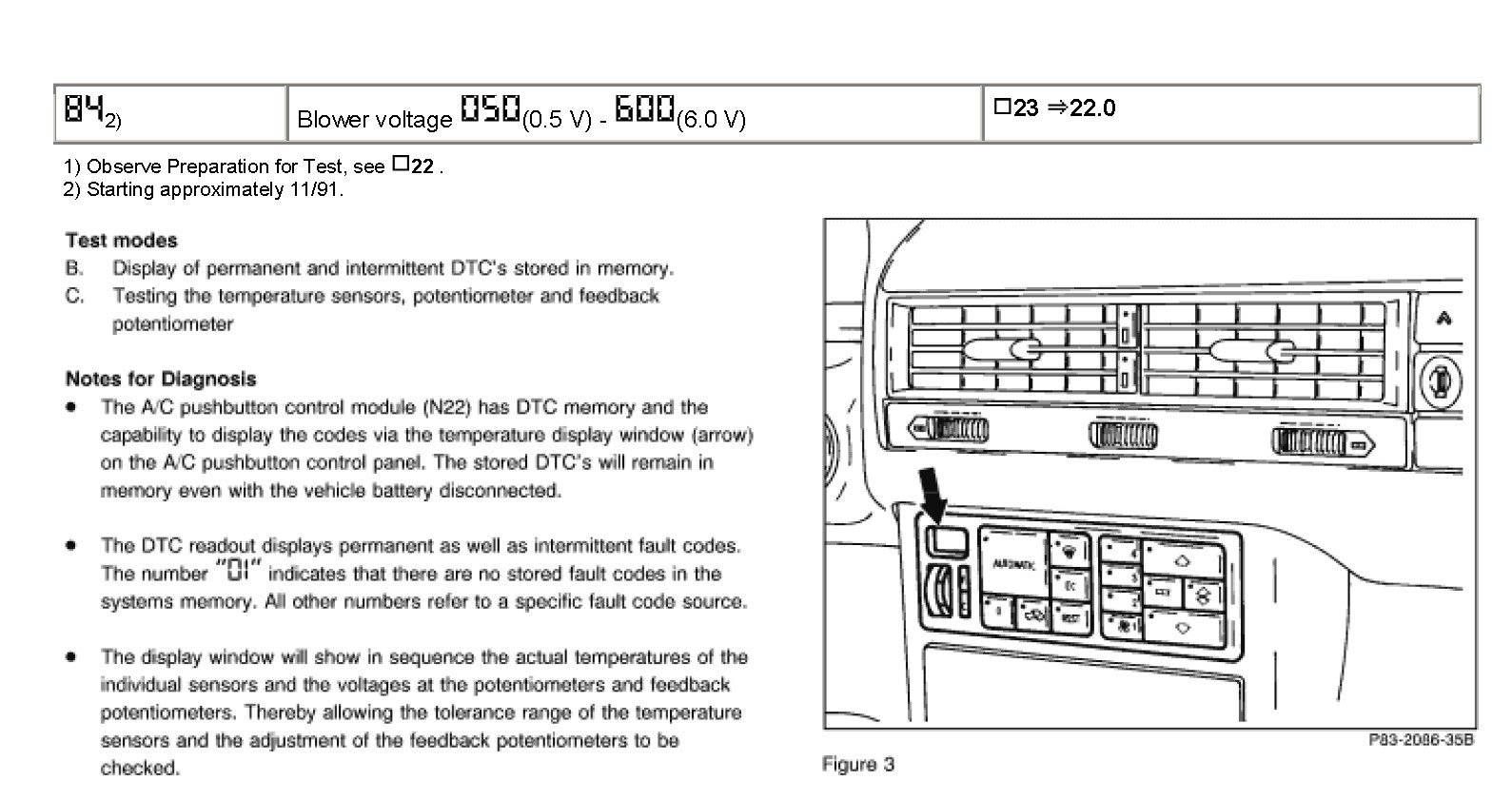

Test Modes B and C

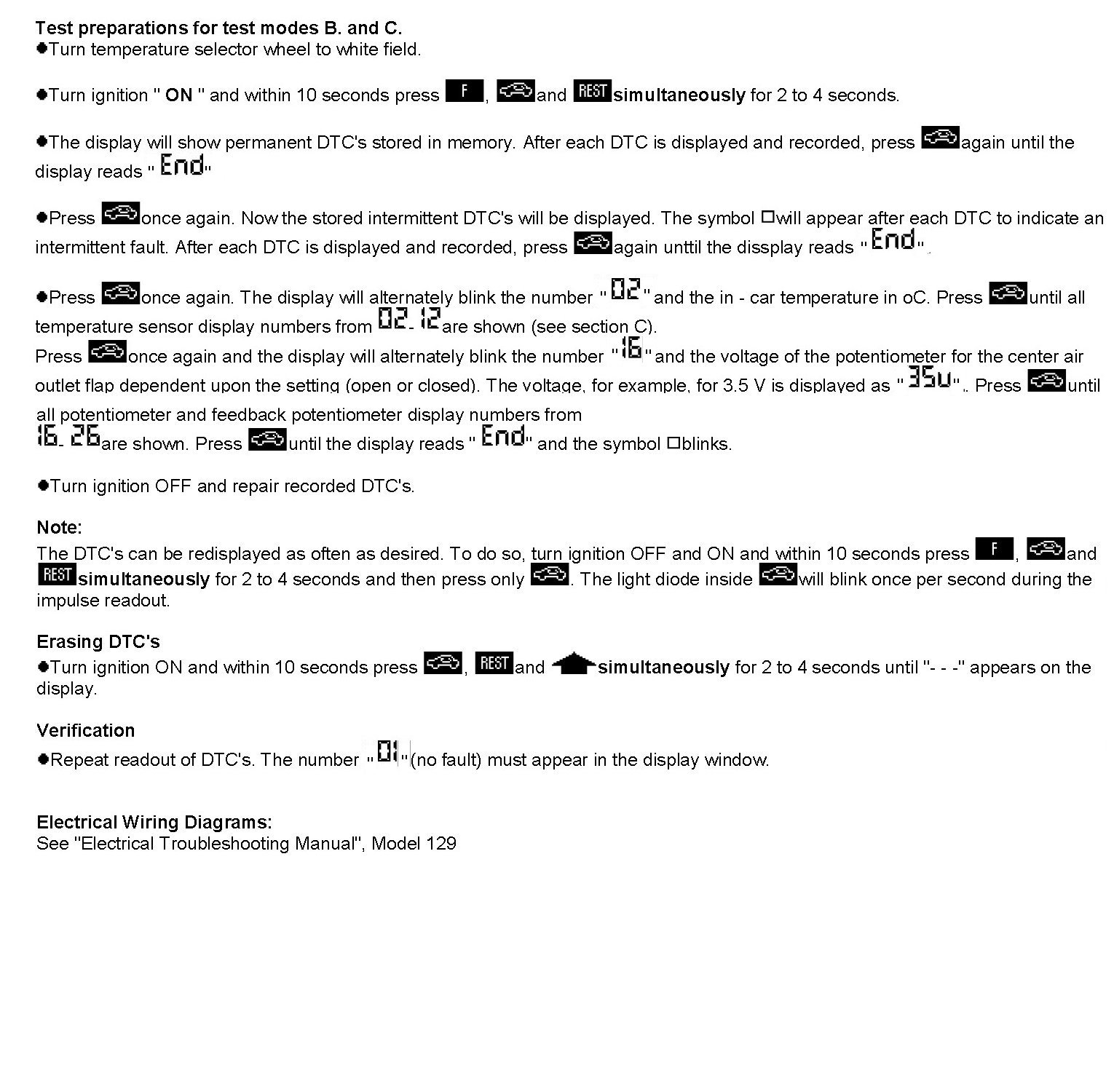

Test Preparations For Test Modes B And C:

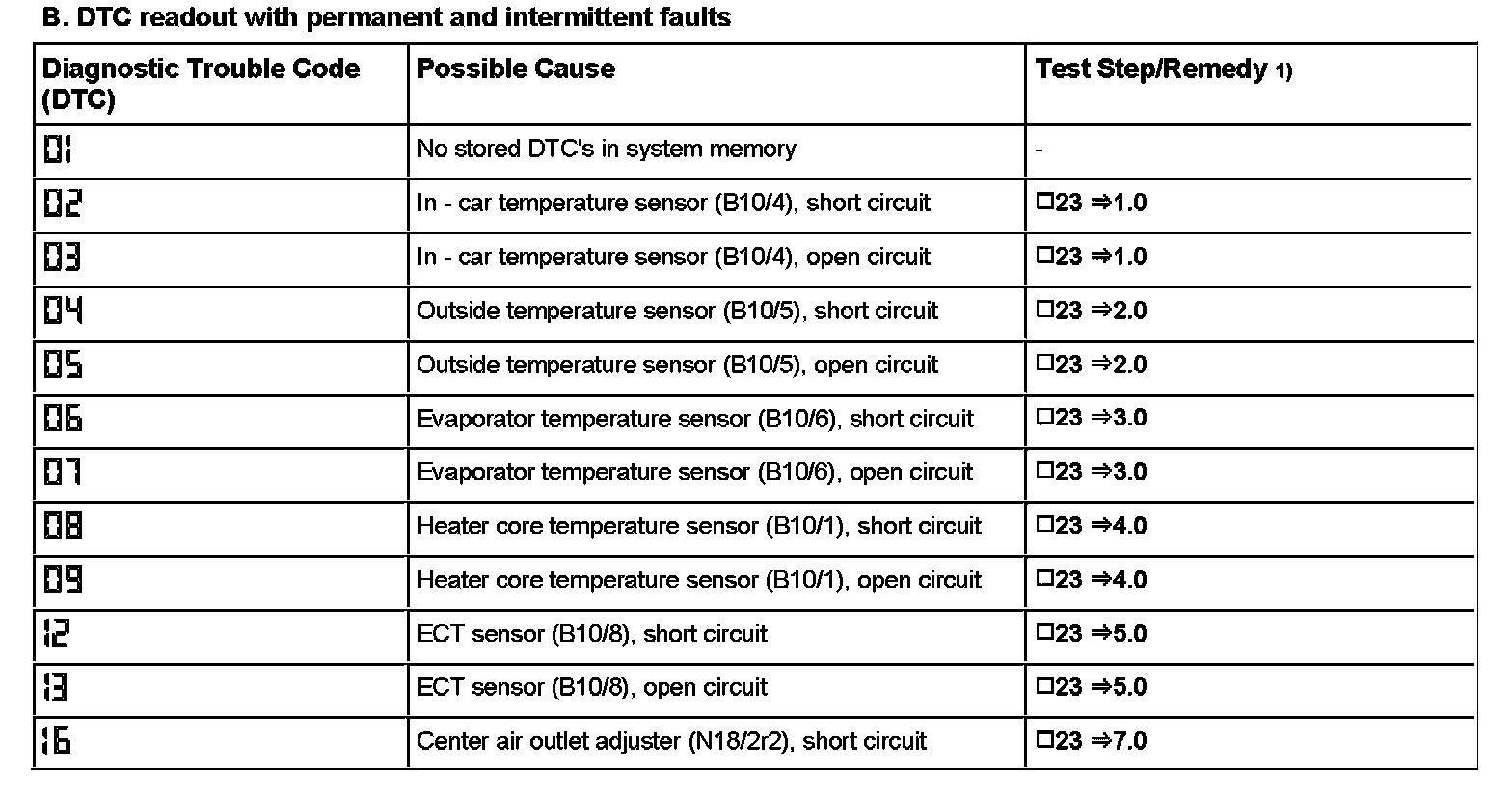

B. DTC Readout with permanent and intermittent faults
01 - 16:

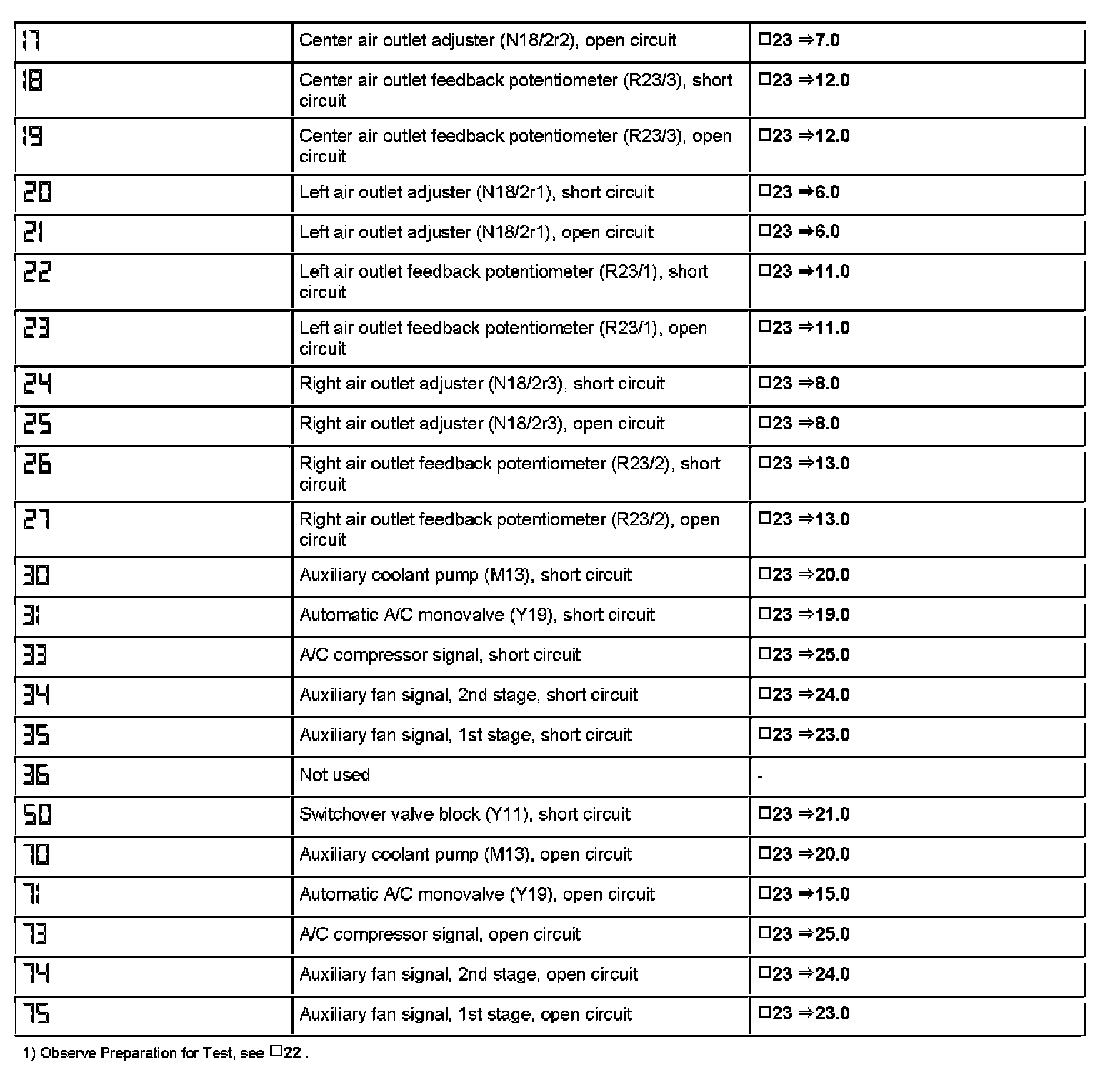

17 - 75:

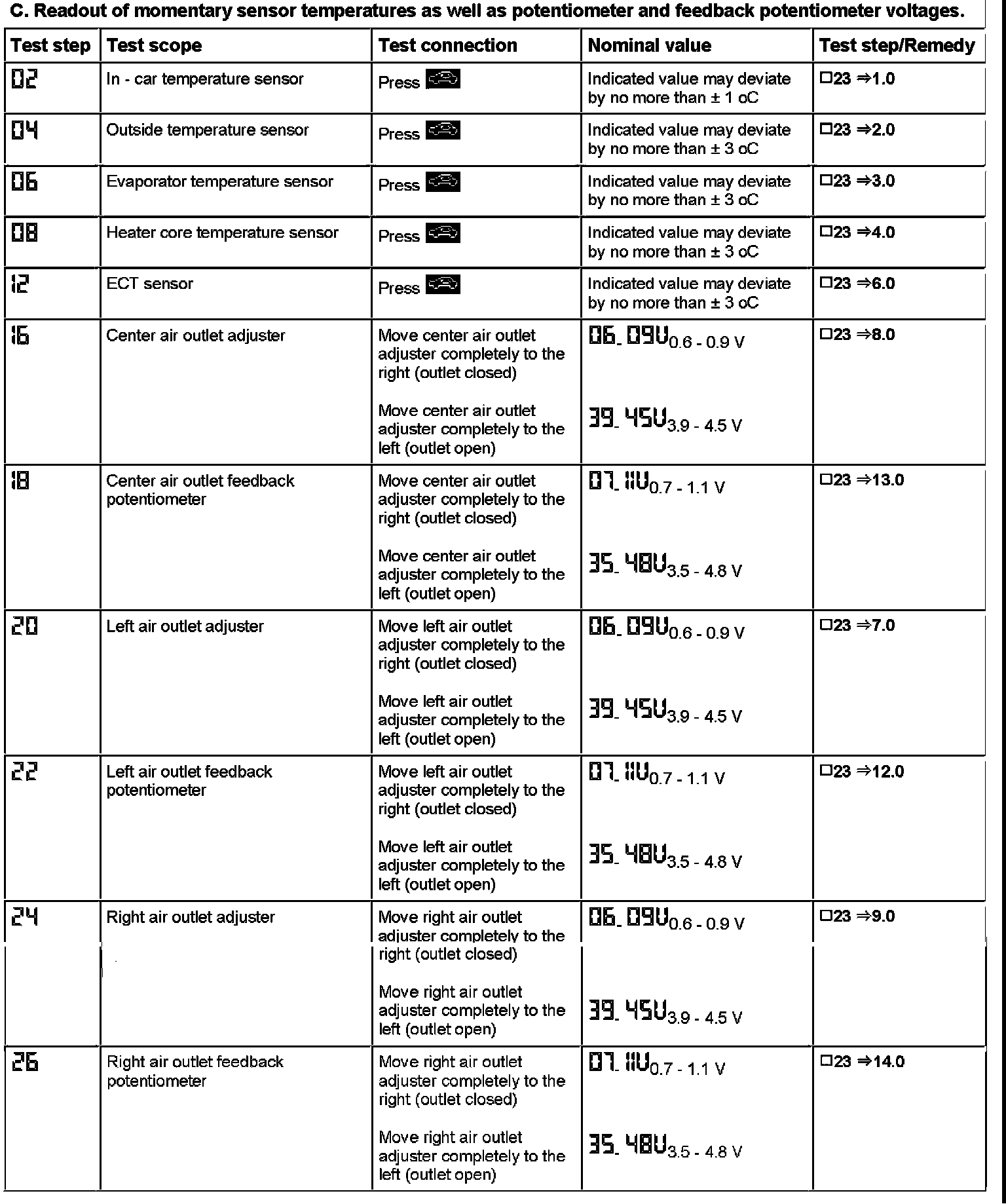

C. Readout of momentary sensor temperatures as well as potentiometer and feedback potentiometer voltages.
