300SL (129.061) L6-3.0L (104.981)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Electrical Test Program [ETP]
>>
ETP - Component Locations [21]
ETP - Component Locations [21]
Air Conditioning (A/C)
Models 129 up to MY 1997

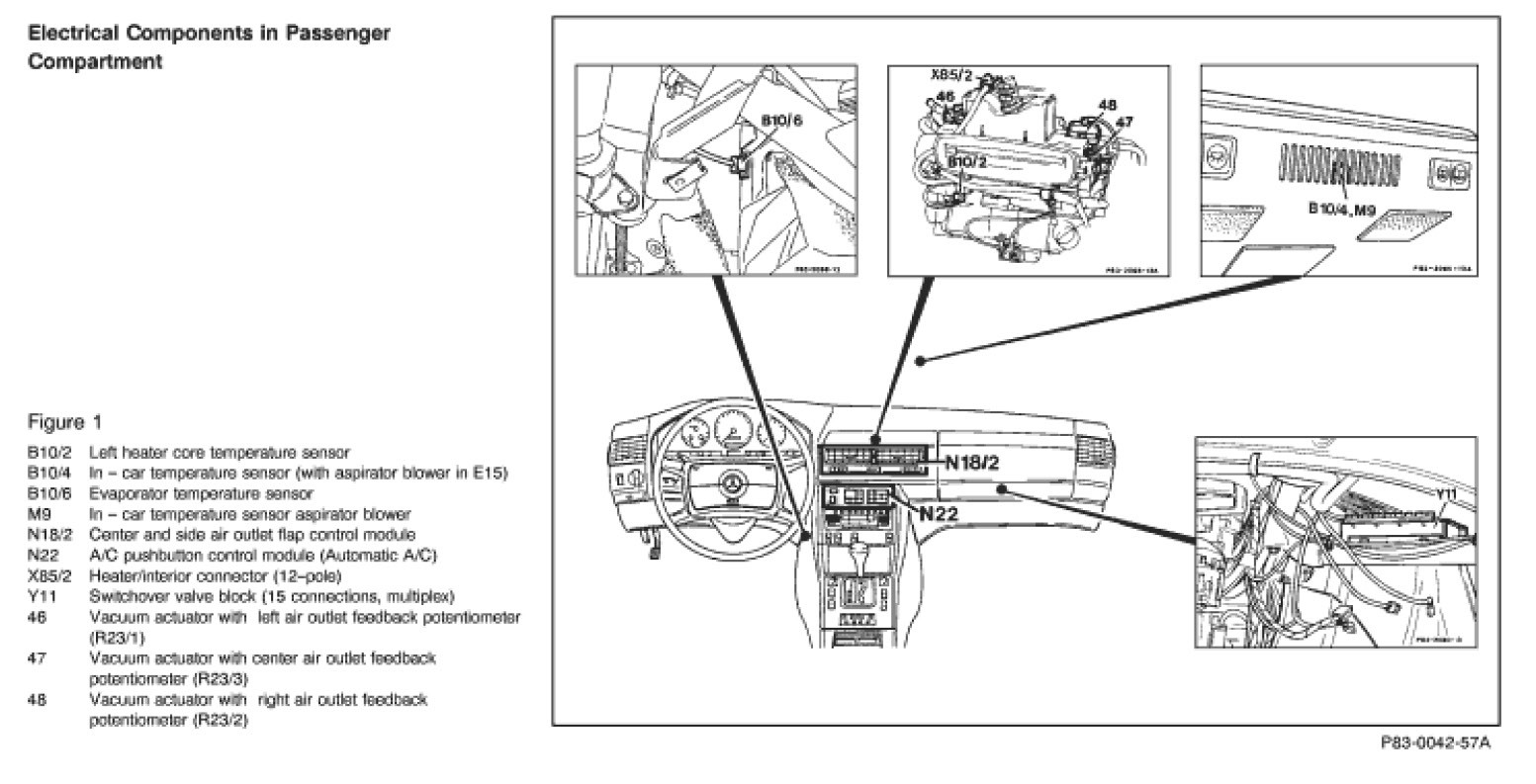

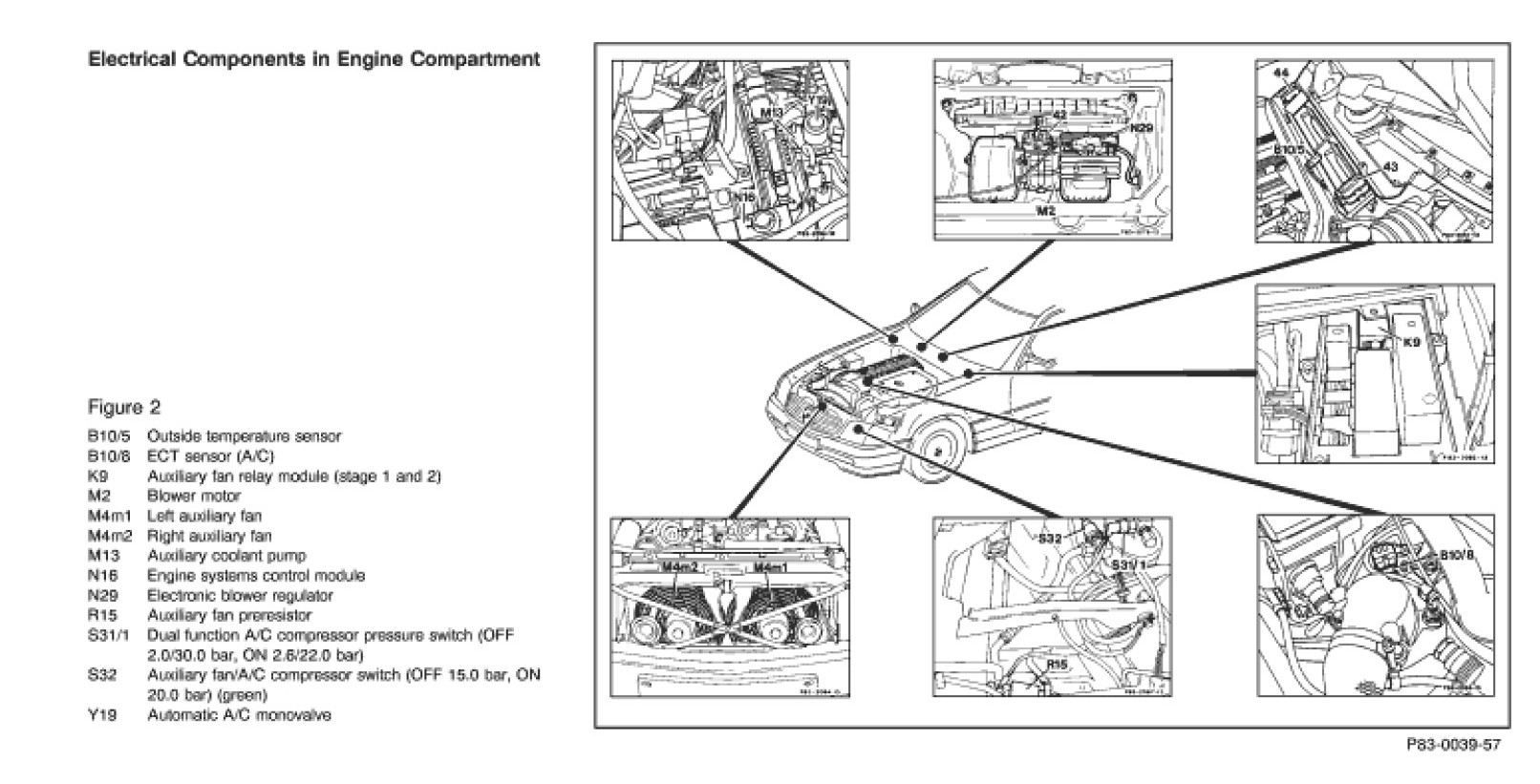

Electrical Test Program (ETP) - Component Locations
