Component Locations In Passenger Compartment

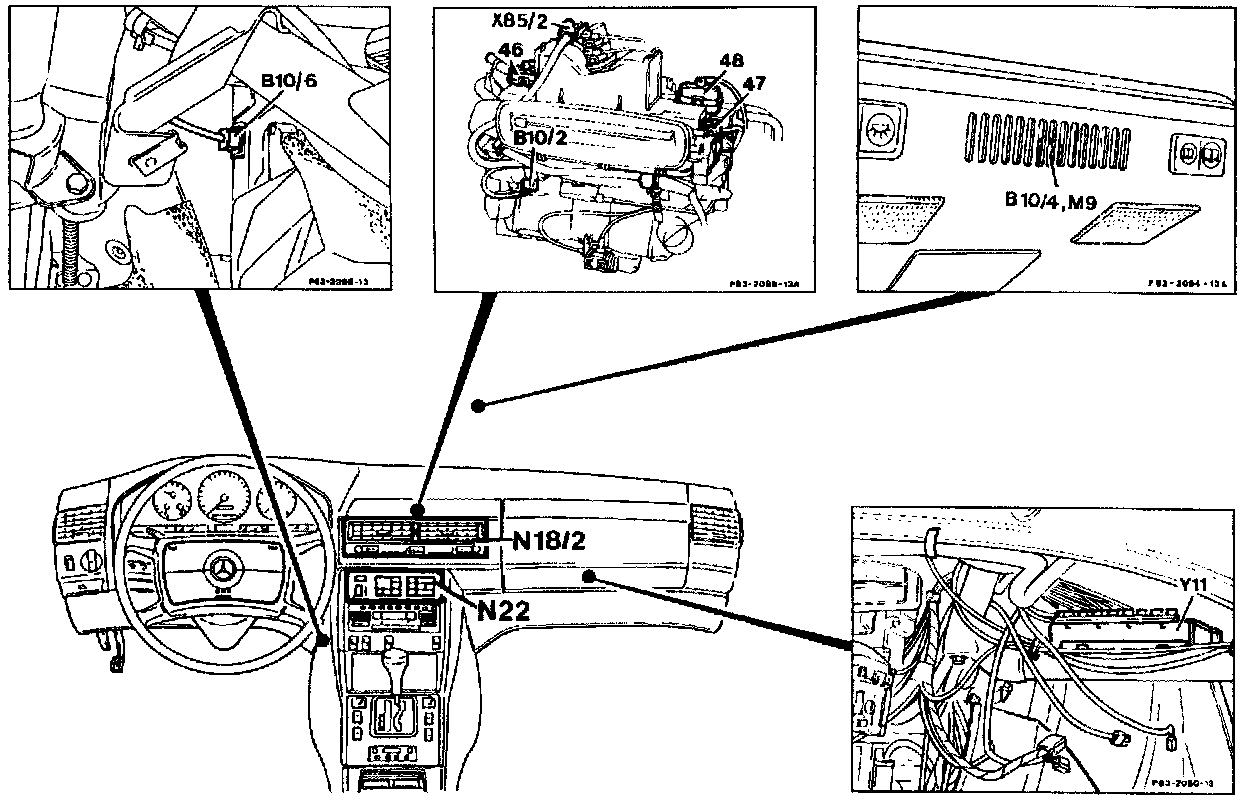

Electrical Components In Passenger Compartment:

Image Reference:
B10/2 Left heater core temperature sensor
B10/4 In - car temperature sensor (with aspirator blower in E15)
B10/6 Evaporator temperature sensor
M9 In - car temperature sensor aspirator blower
N18/2 Center and side air outlet flap control module
N22 A/C pushbutton control module (Automatic A/C)
X85/2 Heater/interior connector (12-pole)
Y11 Switchover valve block (15 connections, multiplex)
46 Vacuum actuator with left air outlet feedback potentiometer (R23/1)
47 Vacuum actuator with center air outlet feedback potentiometer (R23/3)
48 Vacuum actuator with right air outlet feedback potentiometer (R23/2)
