Component Locations In Engine Compartment

Electrical Components In Engine Compartment:

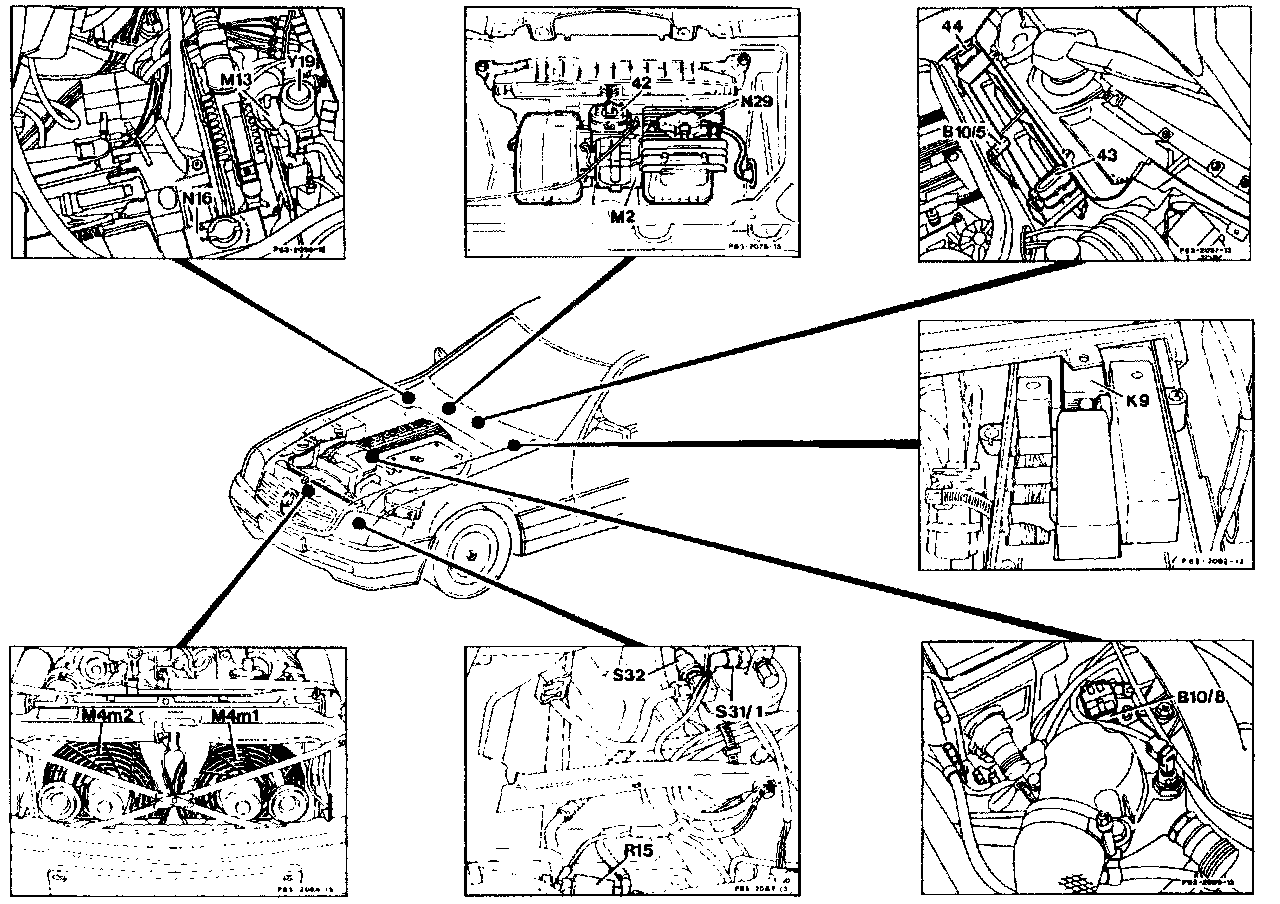

Image Reference:
B10/5 Outside temperature sensor
B10/8 ECT sensor (A/C)
K9 Auxiliary fan relay module (stage 1 and 2)
M2 Blower motor
M4m1 Left auxiliary fan
M4m2 Right auxiliary fan
M13 Auxiliary coolant pump
N16 Engine systems control module
N29 Electronic blower regulator
R15 Auxiliary fan preresistor
S31/1 Dual function A/C compressor pressure switch (OFF 2.0/30.0 bar, ON 2.6/22.0 bar)
S32 Auxiliary fan/A/C compressor switch (OFF 15.0 bar, ON 20.0 bar) (green)
