Matching Camshaft Adjuster Parts

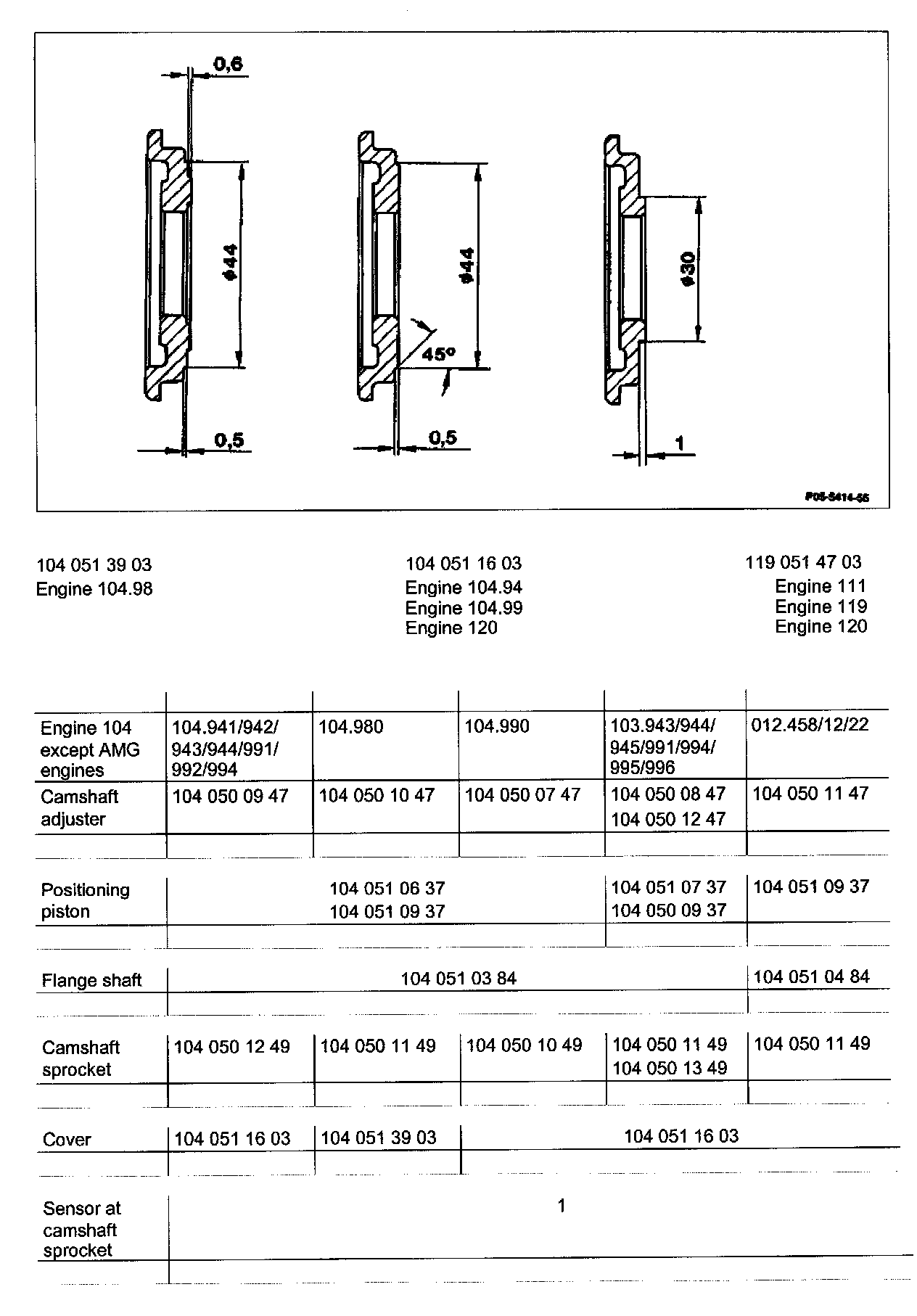

Matching camshaft adjuster parts

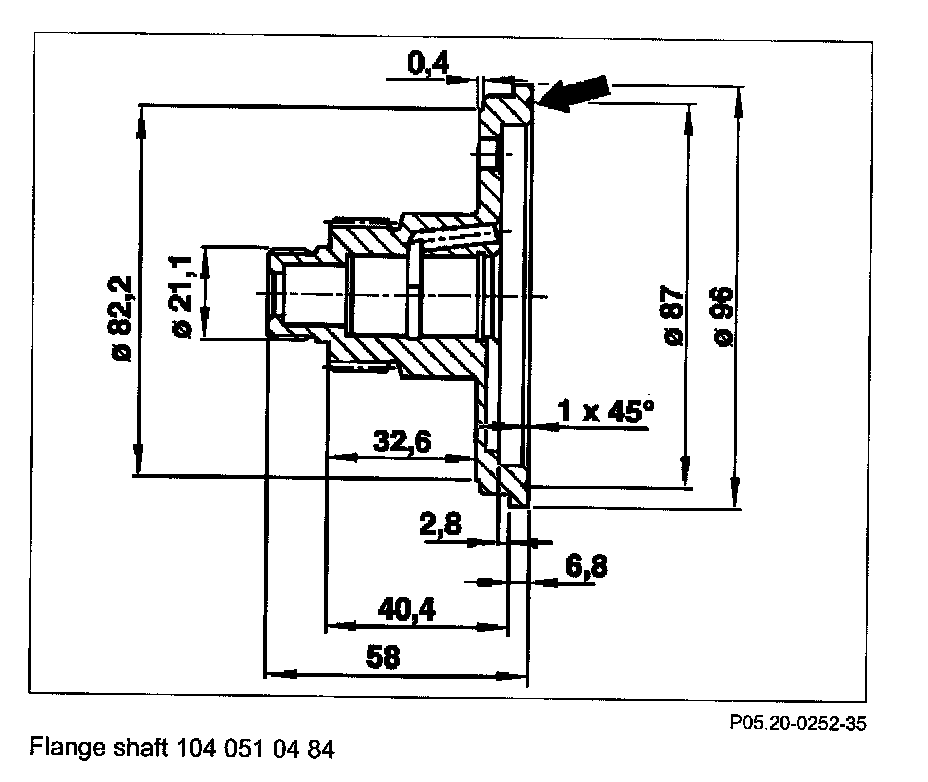

Flange shaft

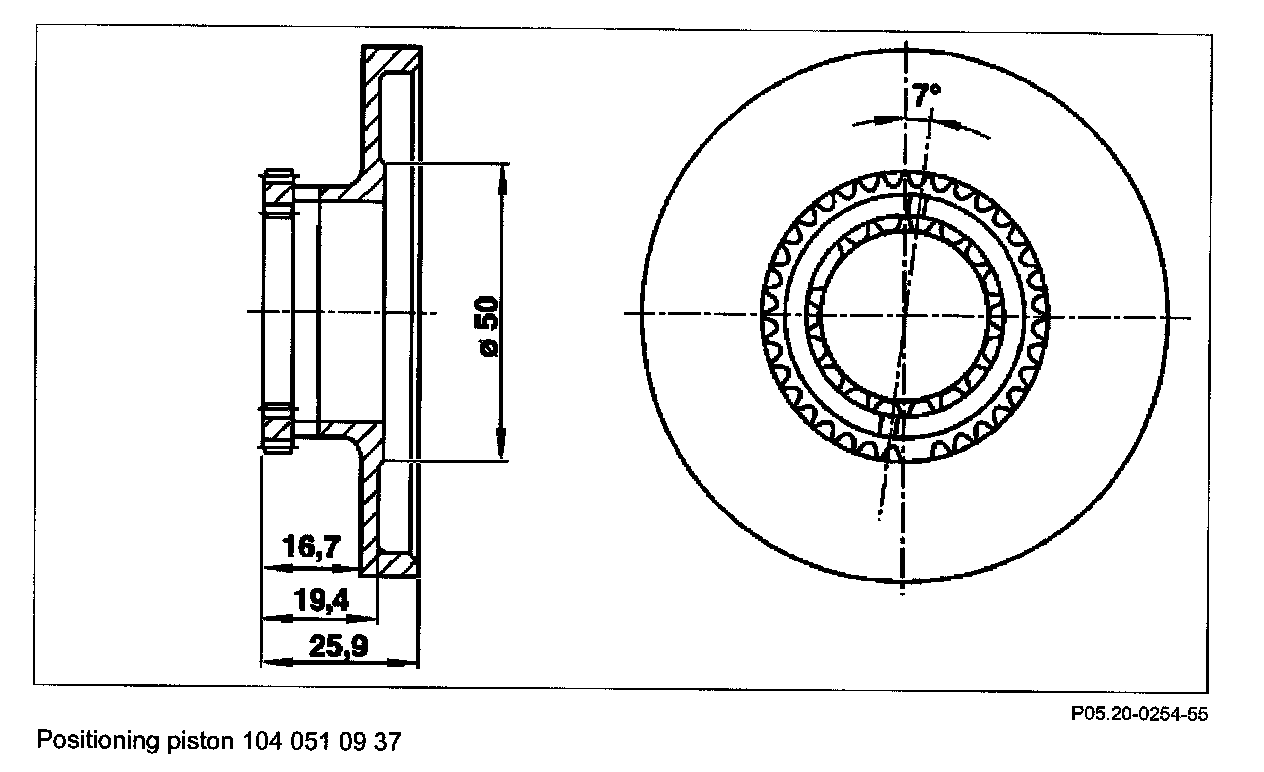

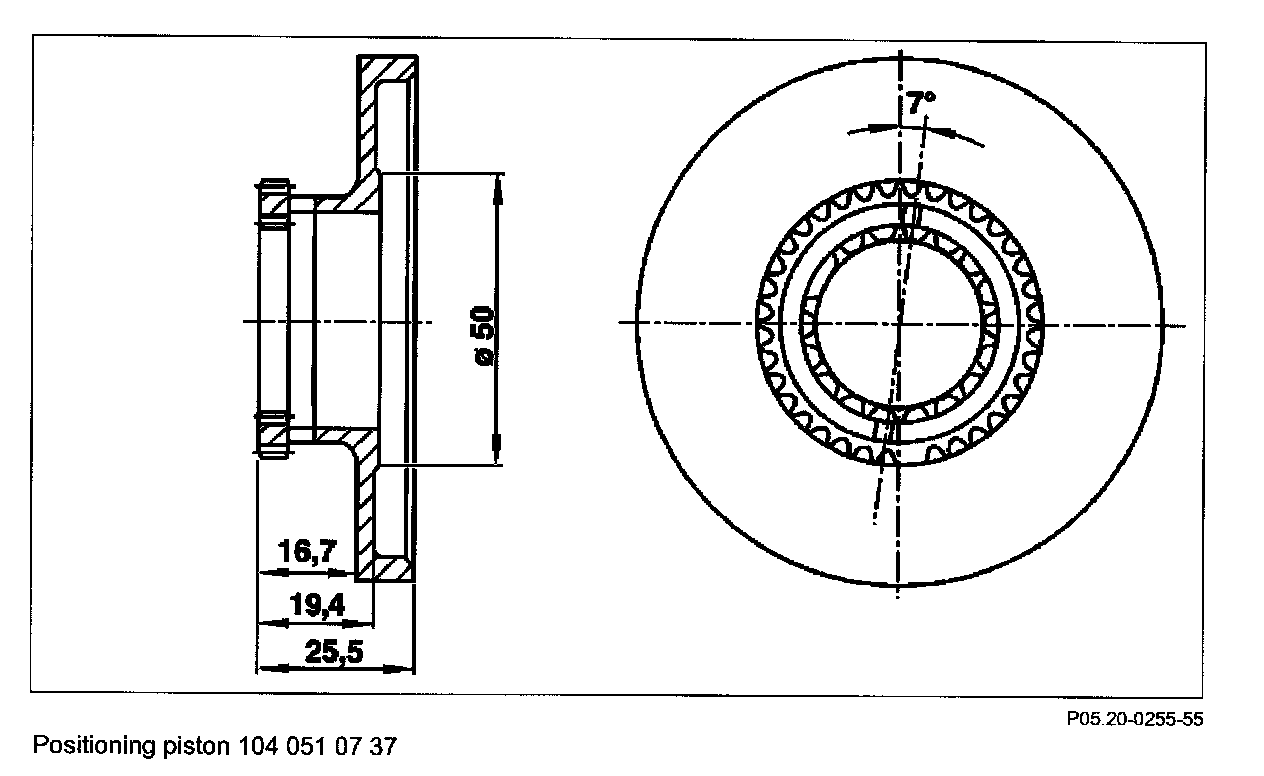

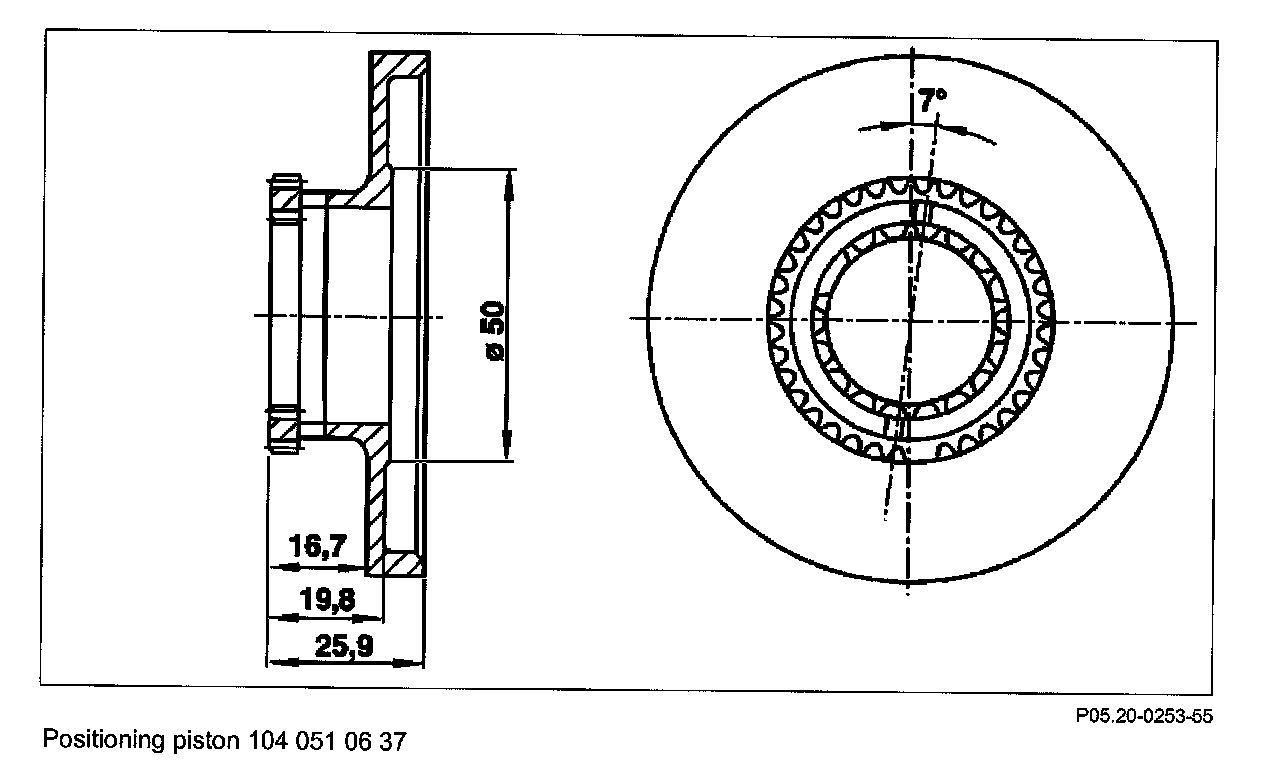

Positioning piston

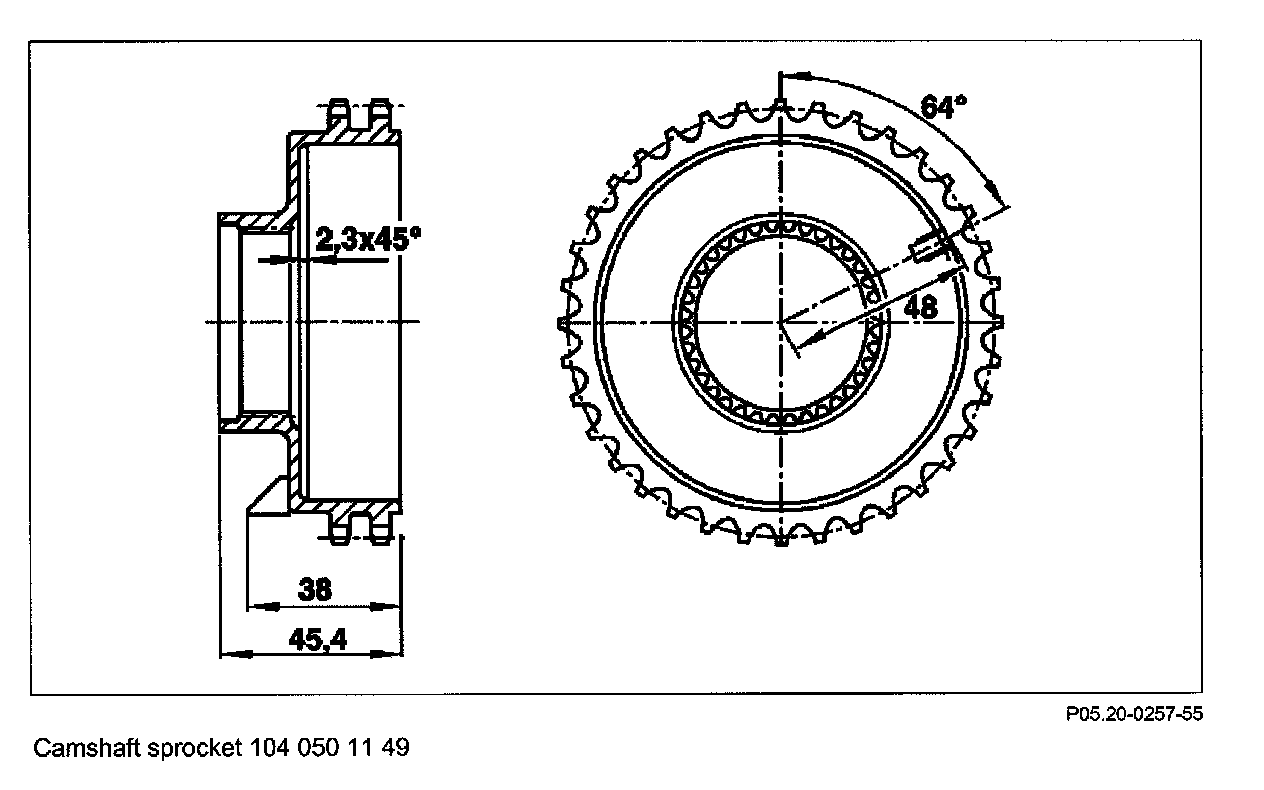

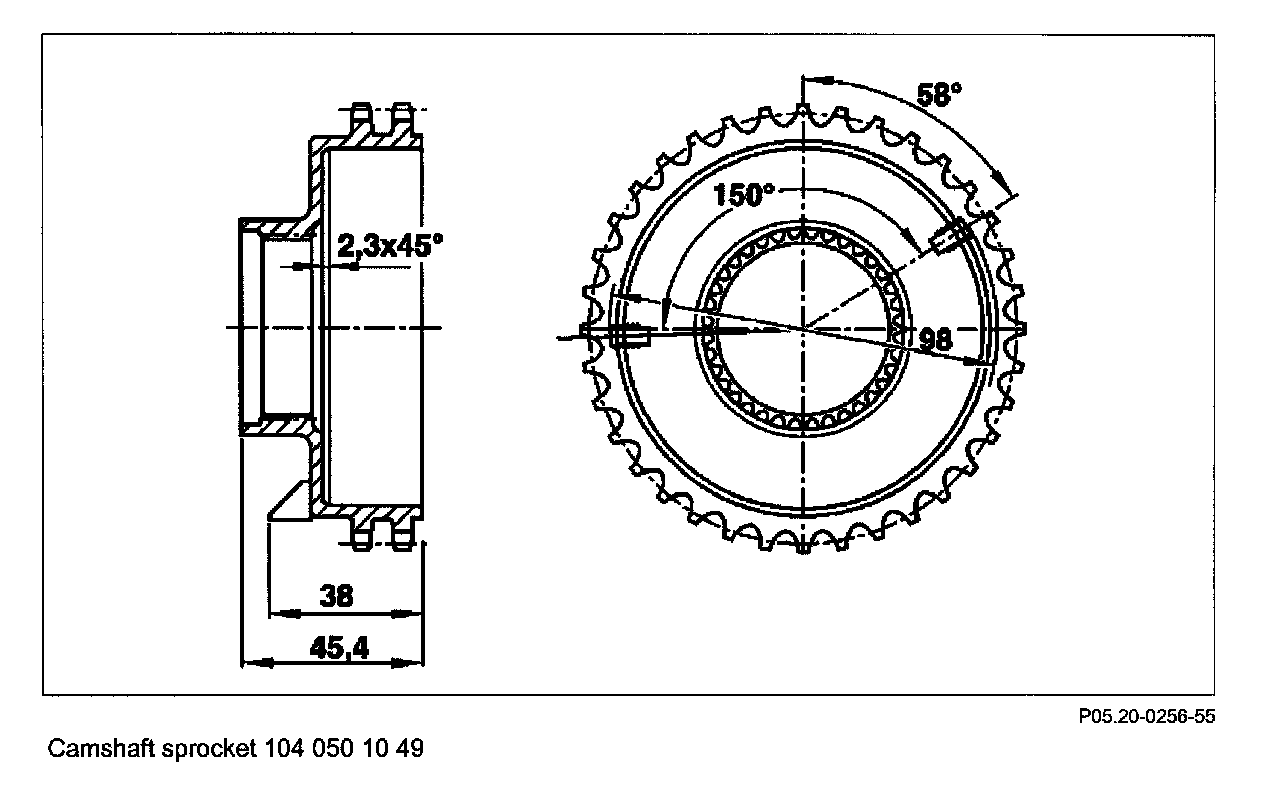

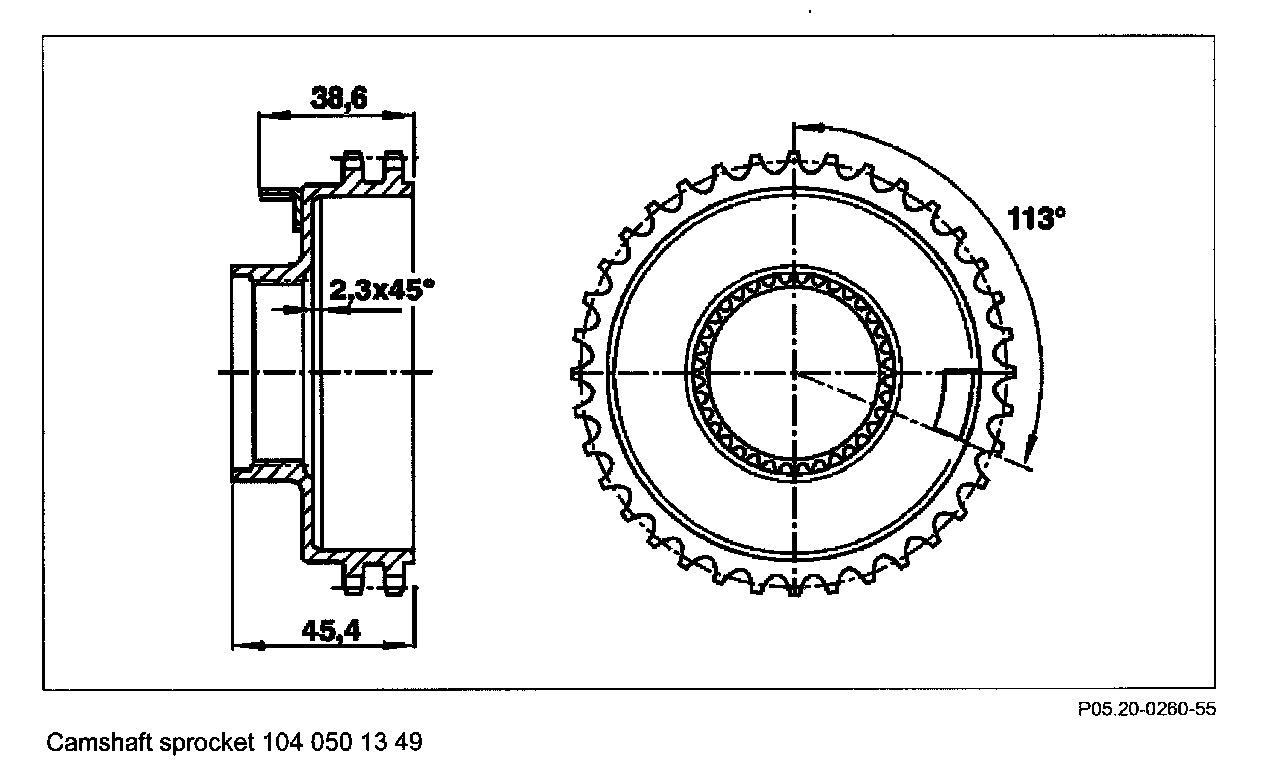

Camshaft sprocket


















Cover
