Circuit 87 Wiring PE00.19-U-2740YA
Circuit 87 Wiring PE00.19-U-2740YA

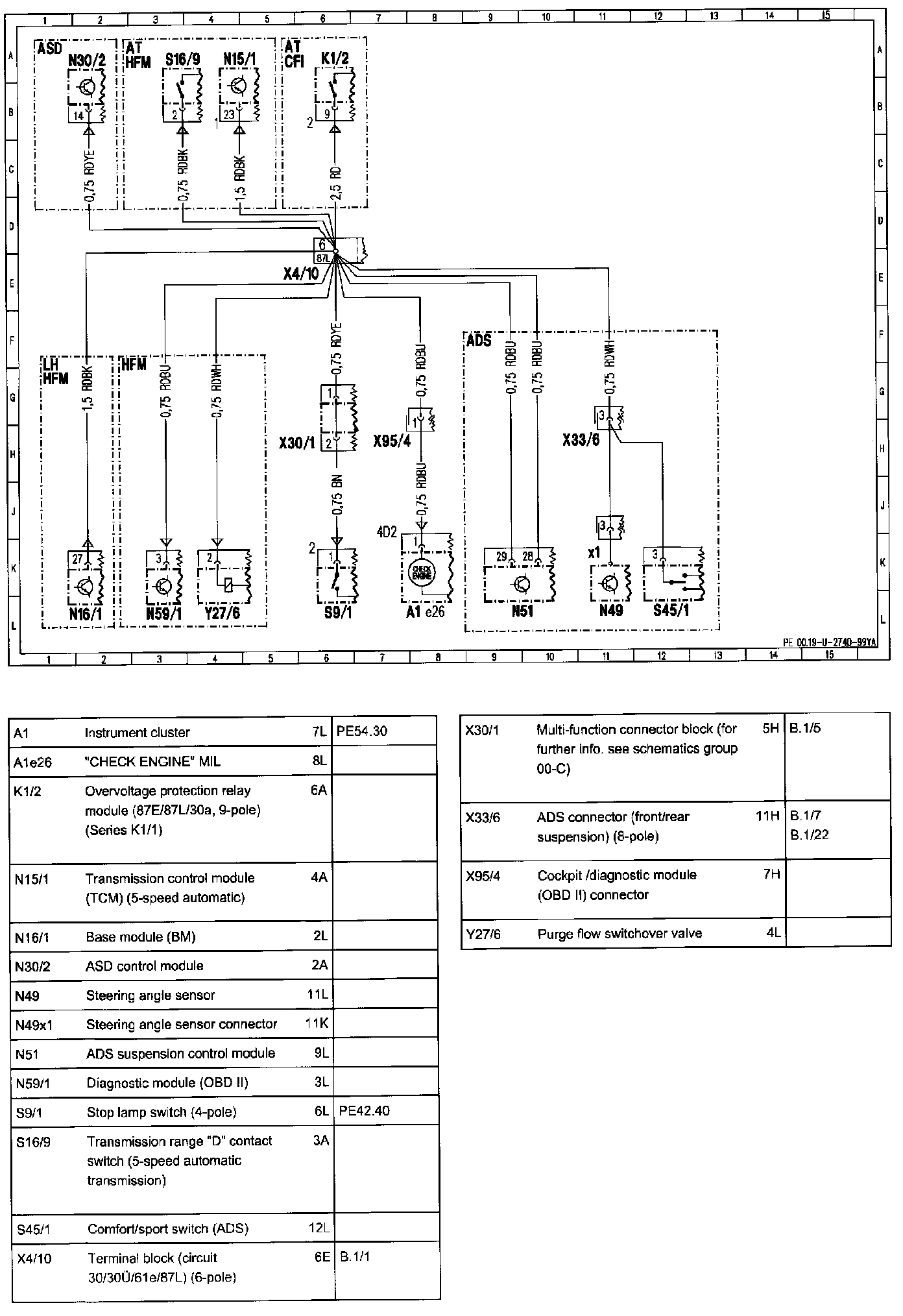

Wiring Diagram
PE00.19-U-2740YA:

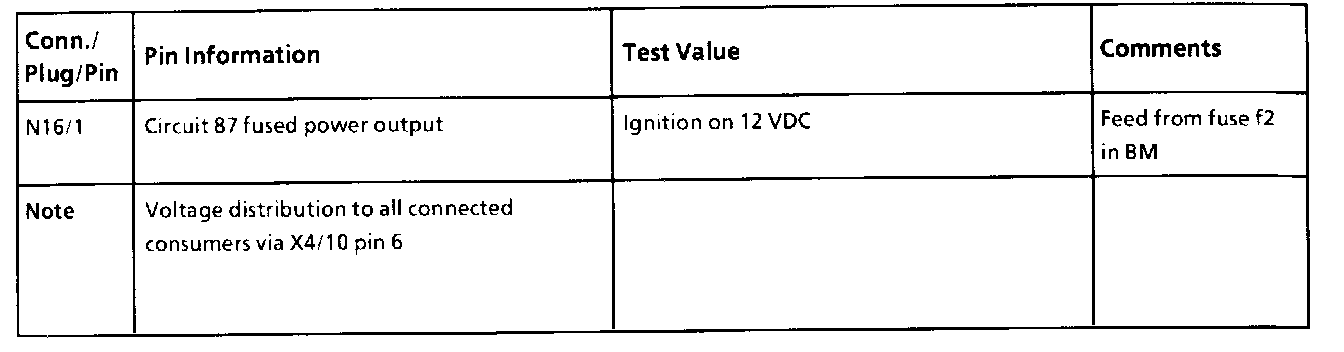

Pin Information:
All values measured to ground unless otherwise noted.
