Engine Systems Control Module (ESCM) PE54.21-U-2700YA

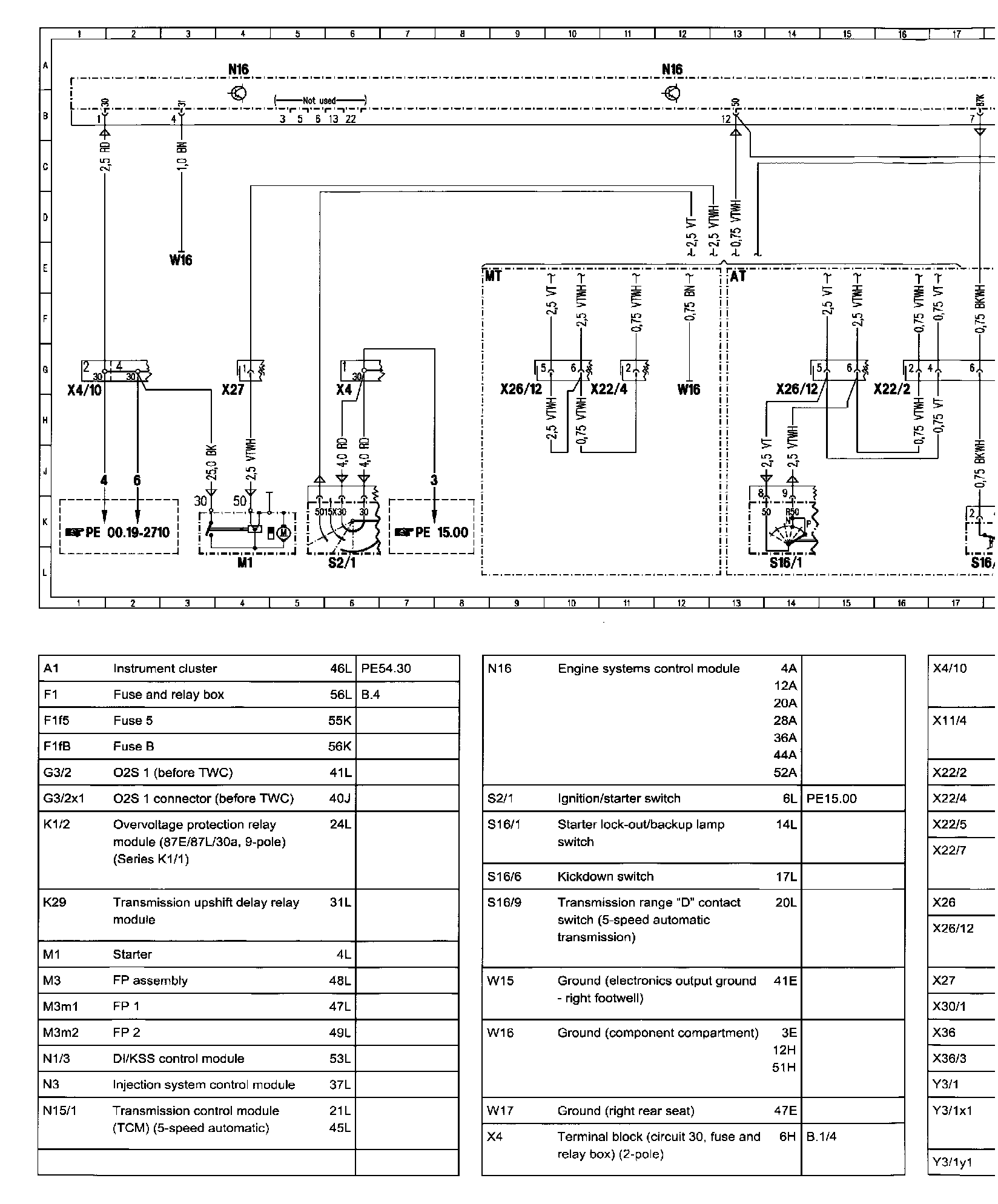

Wiring Diagram

F6u�R�PE54.21-U-2700YA - ESCM:

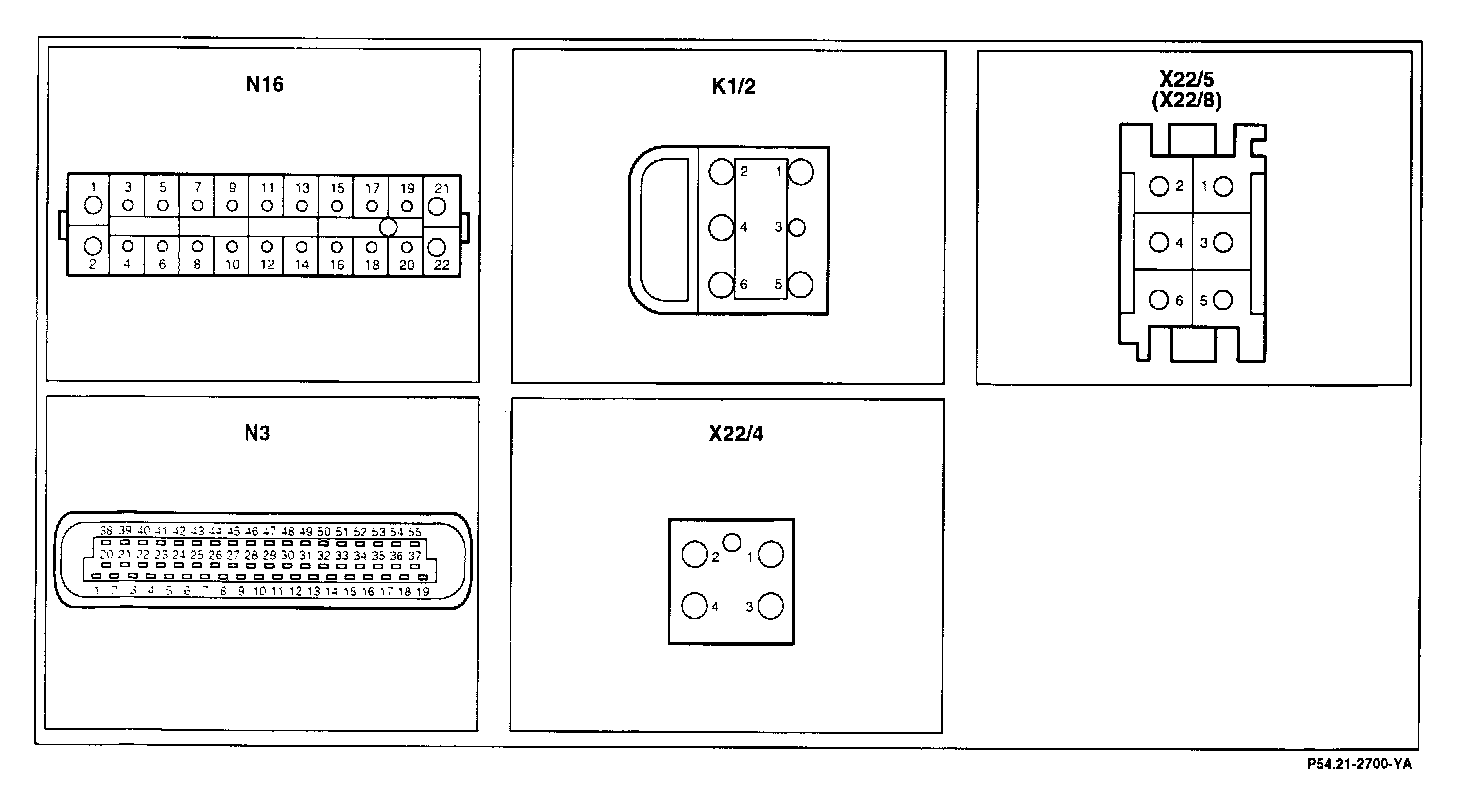

Connector Assignment:

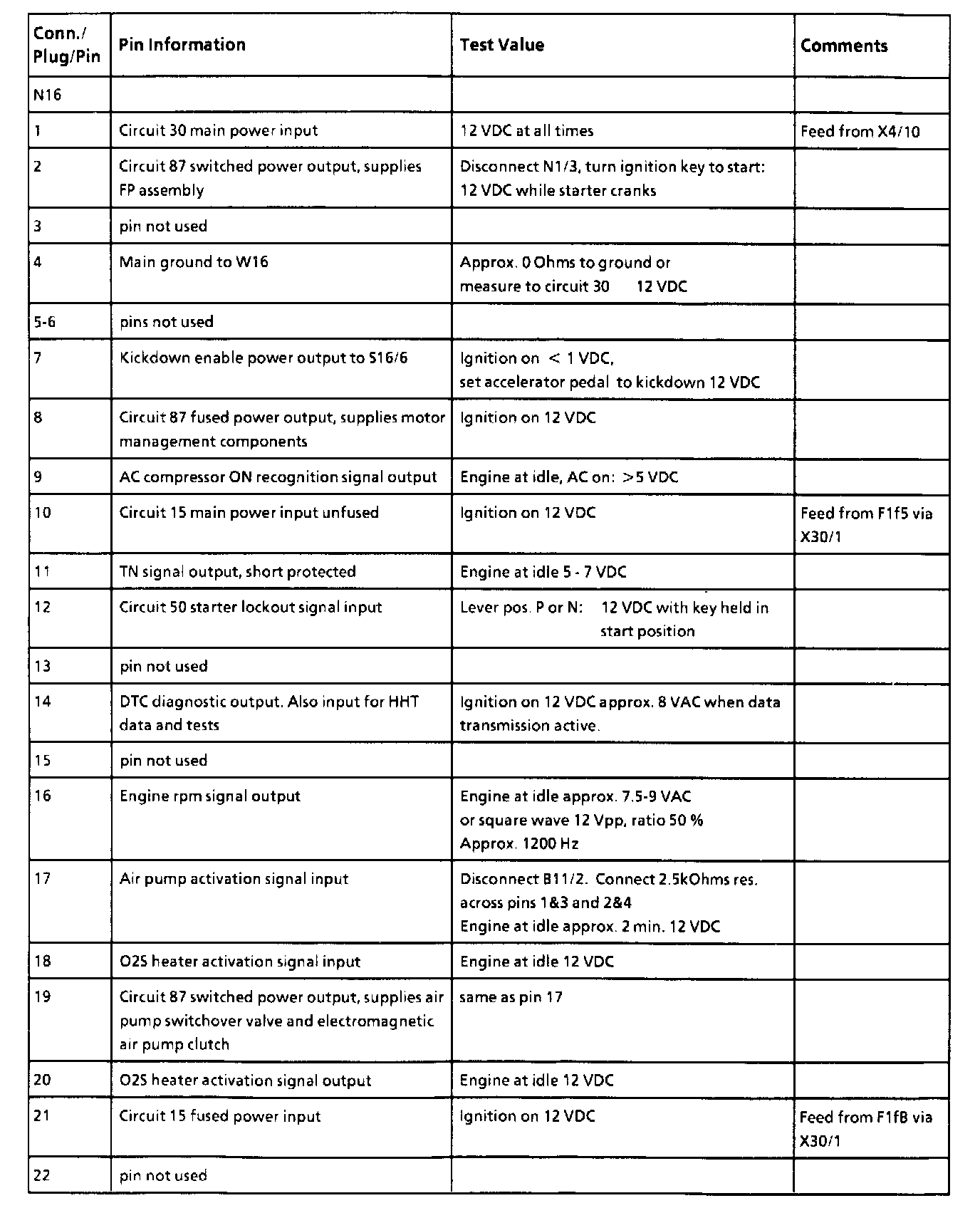

Pin Information:






All values measured to ground unless otherwise noted.
