Mercedes Benz
>>
1990
>>
300SL (129.061) L6-3.0L (104.981)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Turn Signal/Hazard Warning Lamps PE82.10-U-2200YA
Turn Signal/Hazard Warning Lamps PE82.10-U-2200YA

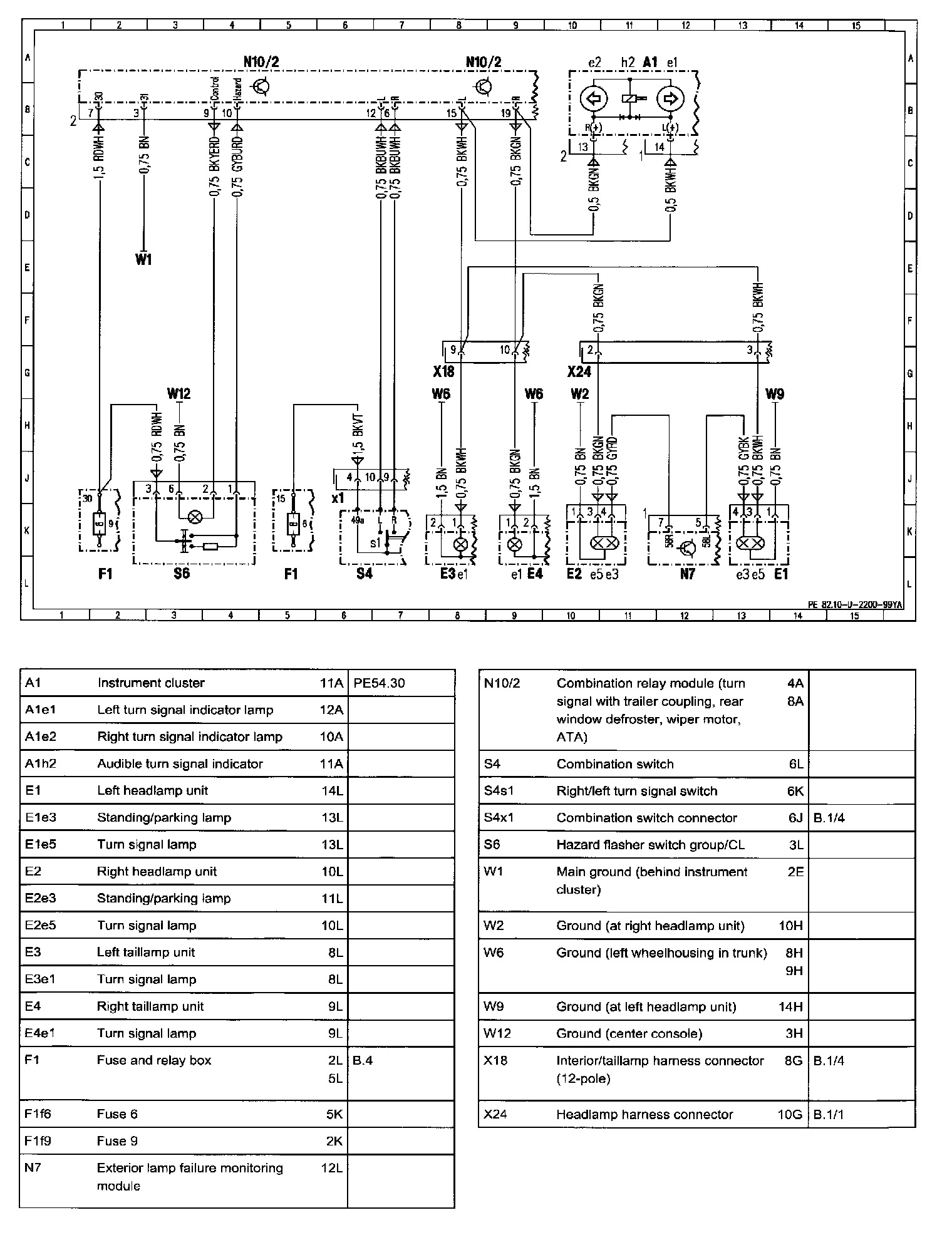

Wiring Diagram
PE82.10-U-2200YA:
Connector Assignment:
Pin, Information:
All values measure to ground unless otherwise noted.
