Engine Combustion
CFI Fuel Injection and Ignition System

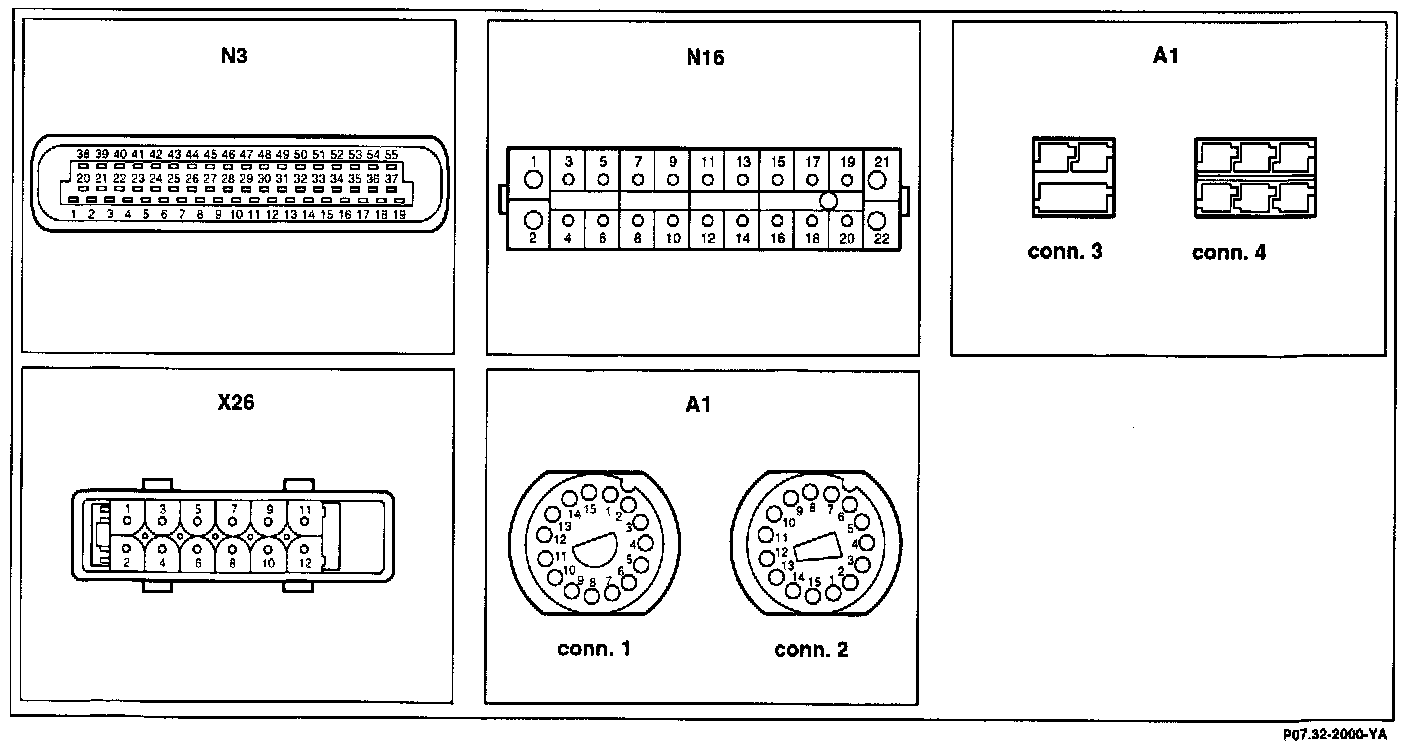

Connector Assignment:

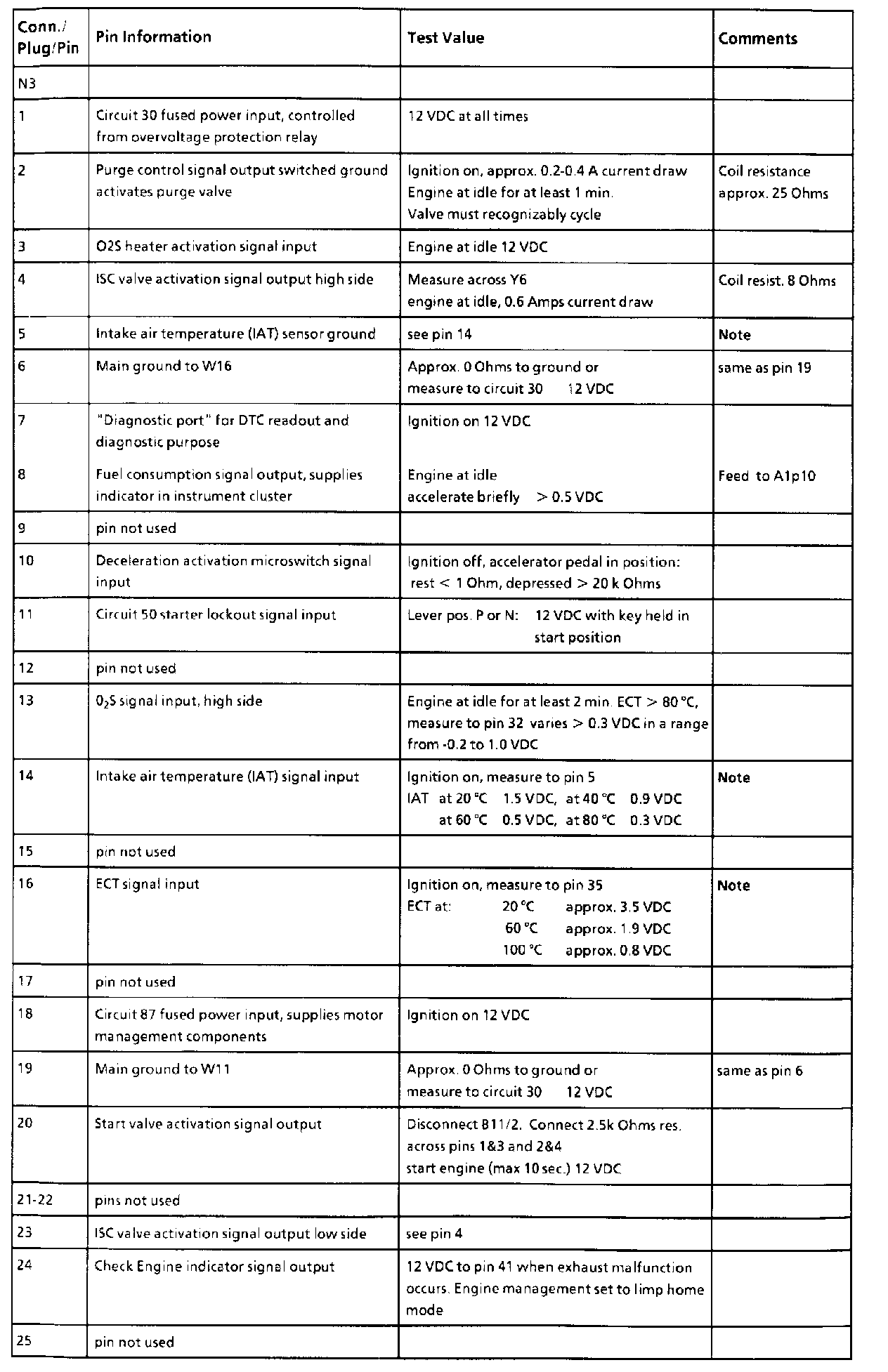

Pin Information, Part 1:

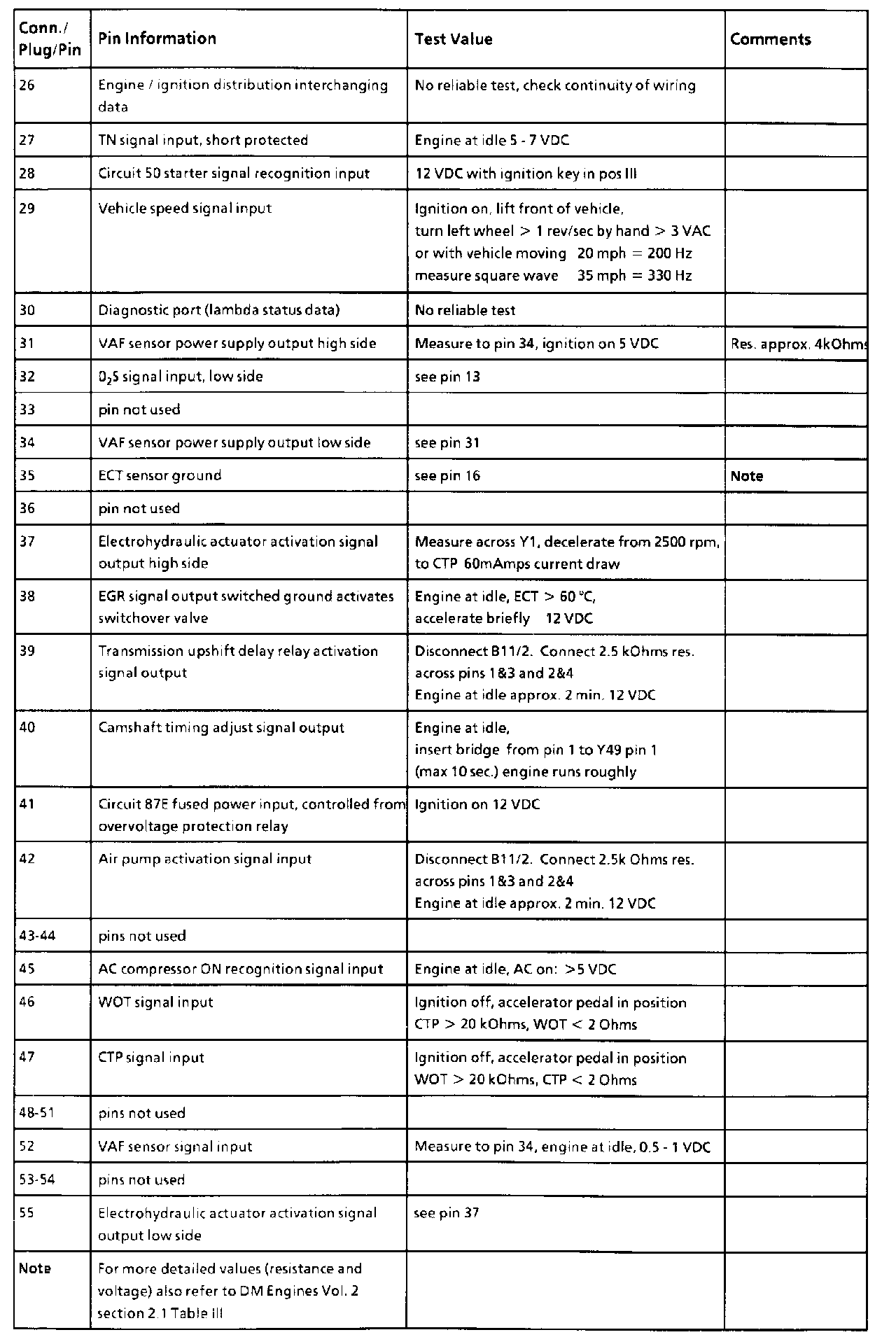

Pin Information, Part 2:
All values measure to ground unless otherwise noted
CFI Fuel Injection and Ignition System
All values measure to ground unless otherwise noted
