Automatic Locking Differential (ASD)




Automatic Locking Differential (ASD)

Models 124.128, 129.061, 201 (up to 5/92)

Hydraulic Test Program [HTP]

Preparation for Test

1. Ignition: OFF
2. Check oil level in oil reservoir, correct if necessary.

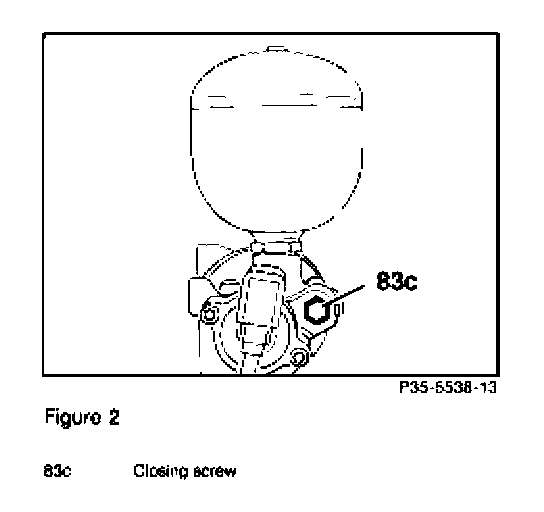

3. Release system pressure.

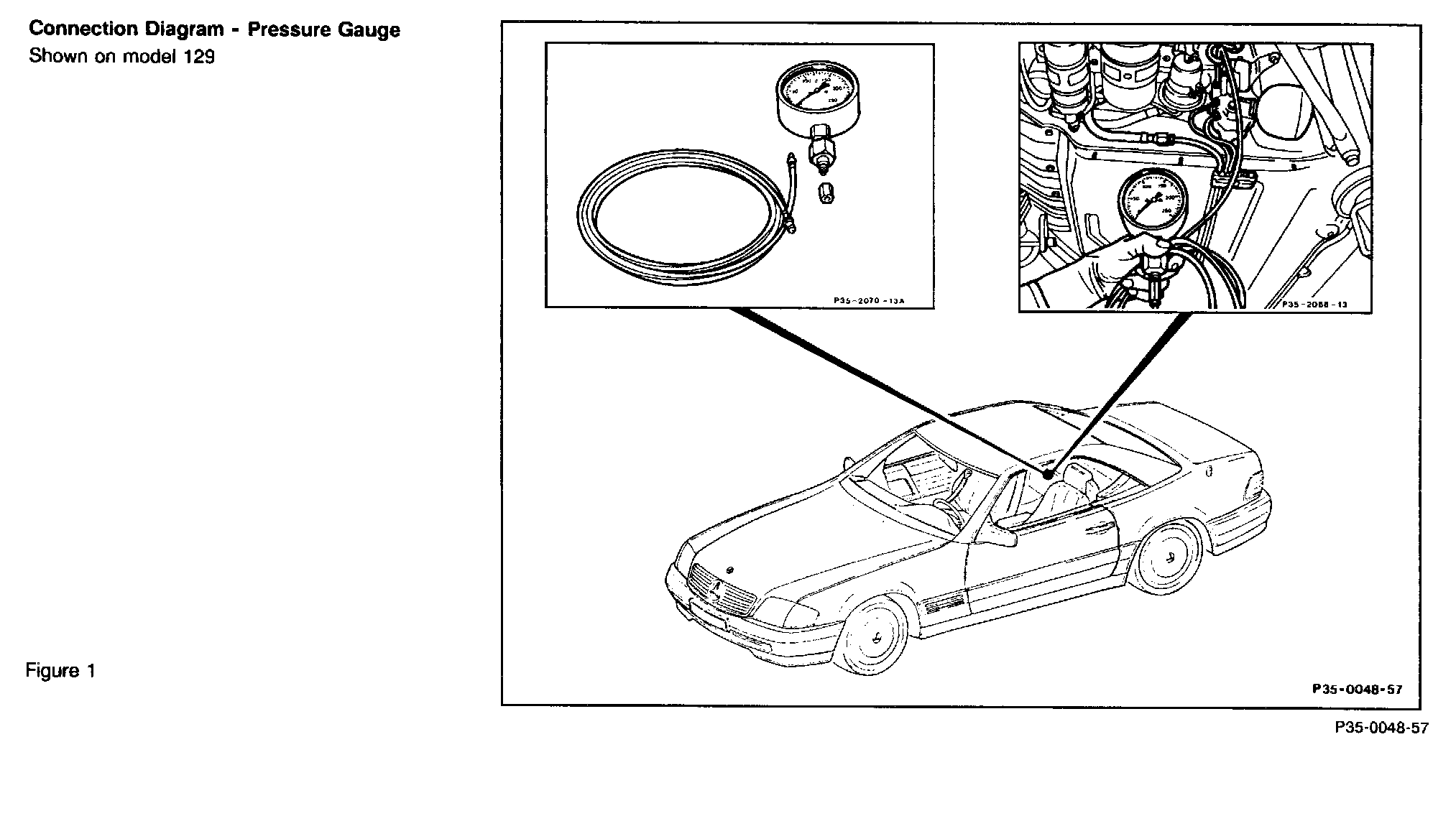

4. Connect the pressure gauge to pressure relaese screw on hydraulic unit according to connection diagram.

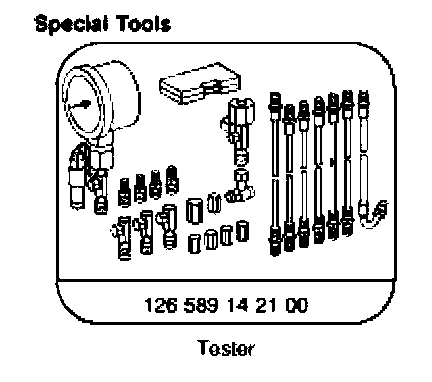

Special Tools:
