Automatic Locking Differential (ASD)

Automatic Locking Differential (ASD)

Models 124.128, 129.061, 201 (up to 5/92)

Electrical Test Program [ETP]

Preliminary work:
Diagnosis - Diagnostic Trouble Code (DTC) Memory 11 Displaying & Reading Trouble Codes (DTC Memory)

1. Ignition: OFF
2. Remove plastic cover.
3. Disconnect ASD control module (N30/2).

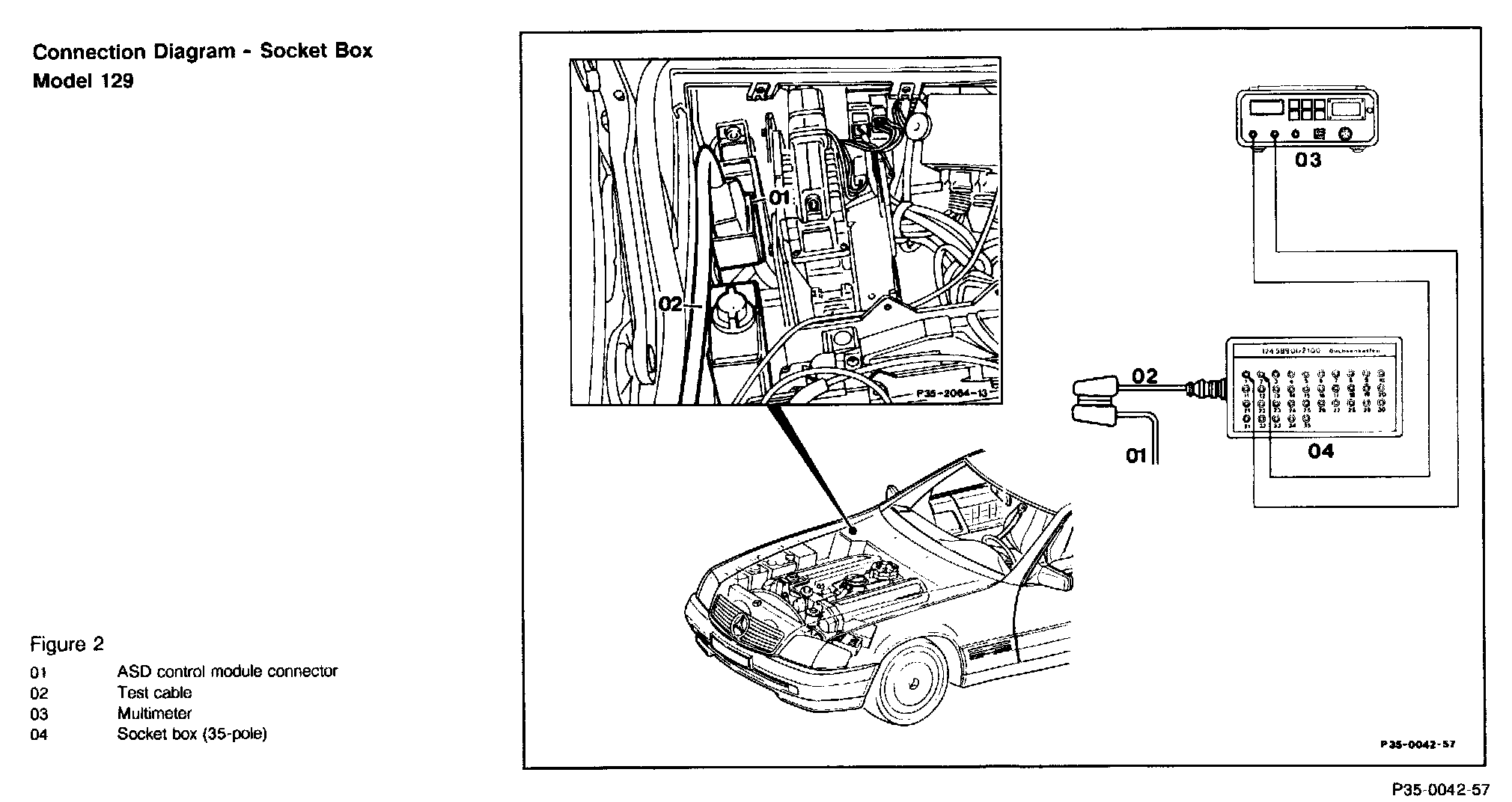

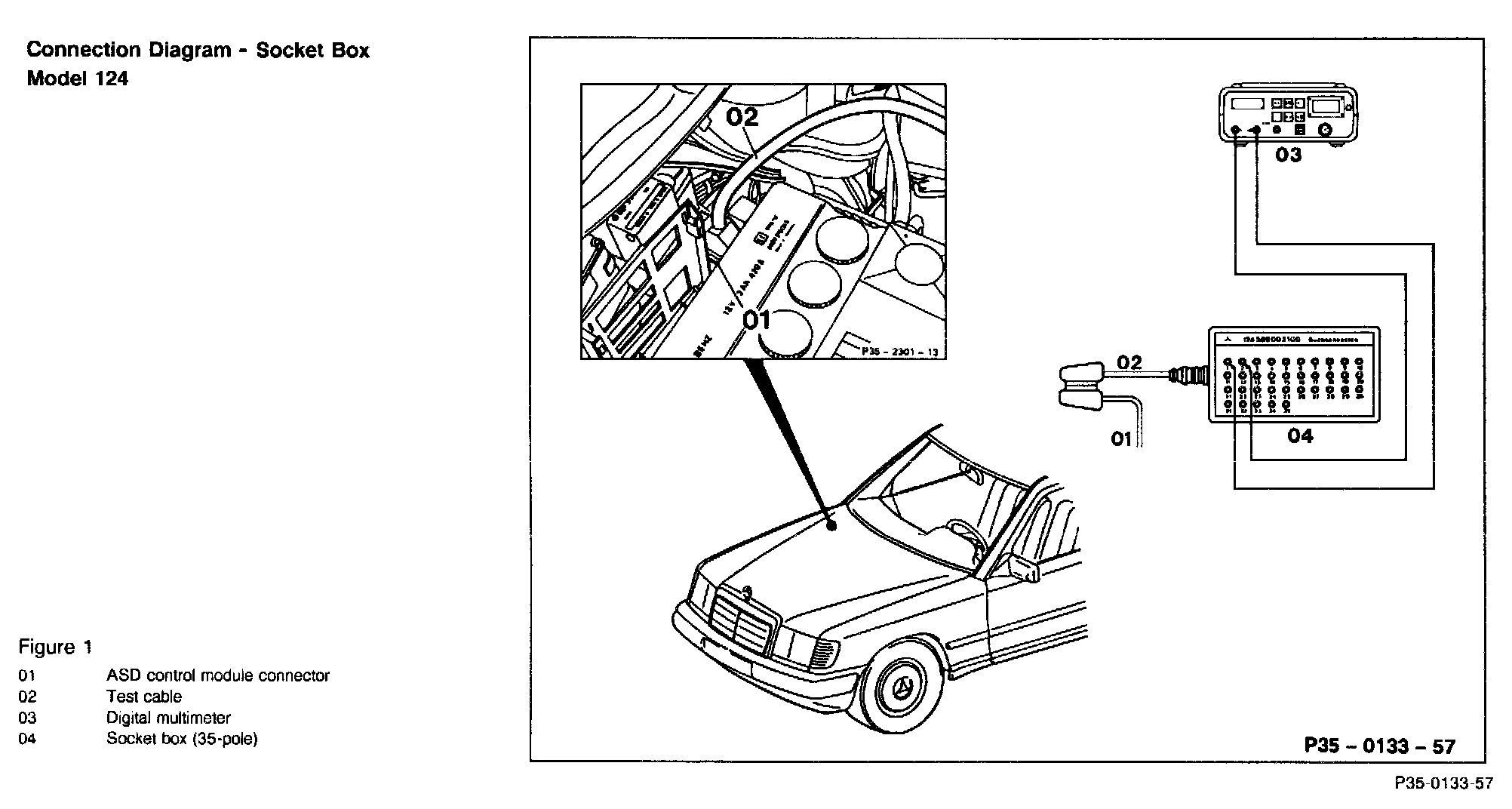

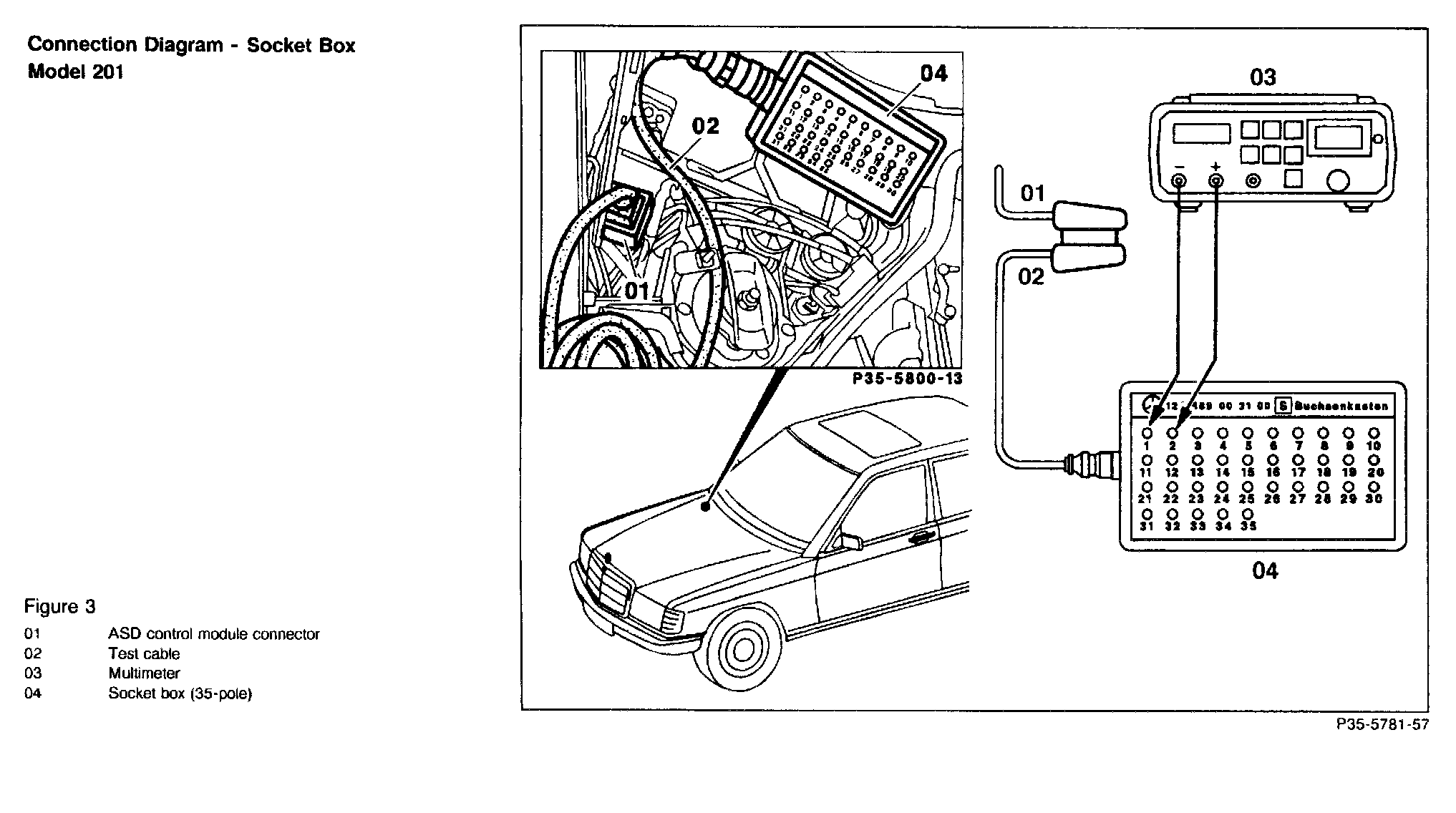

3. Connect socket box (04) with test cable (02) according to connection diagram.

Special Tools:

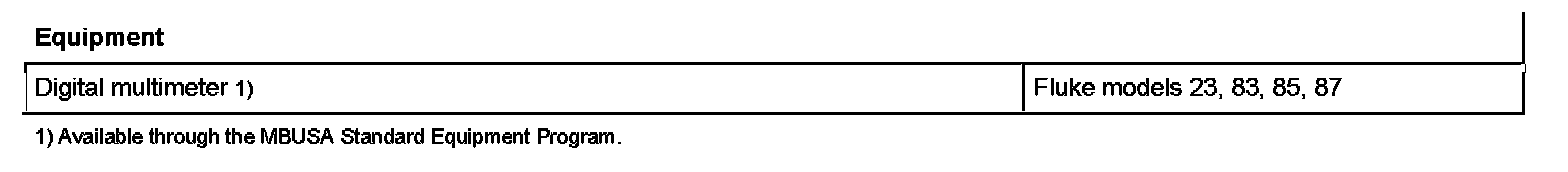

Equipment:
