Home >> Mercedes Benz >> 1990 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests (Electrical Test Program [ETP]) >> ETP - Component Locations [21] >> Automatic Locking Differential (ASD)

Automatic Locking Differential (ASD)




Automatic Locking Differential (ASD)

Models 124.128, 129.061, 201 (up to 5/92)

Electrical Test Program [ETP]

Component Locations

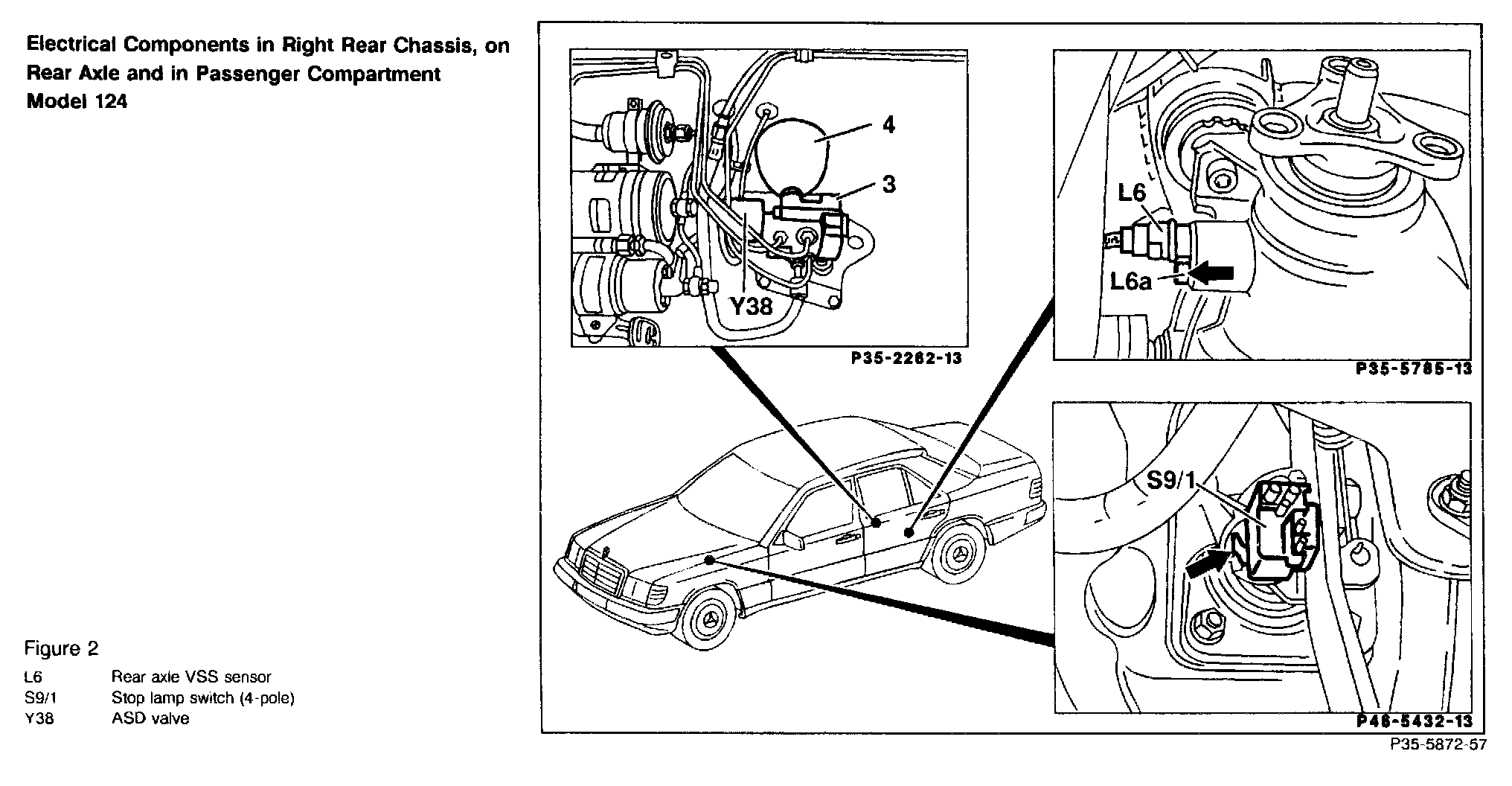

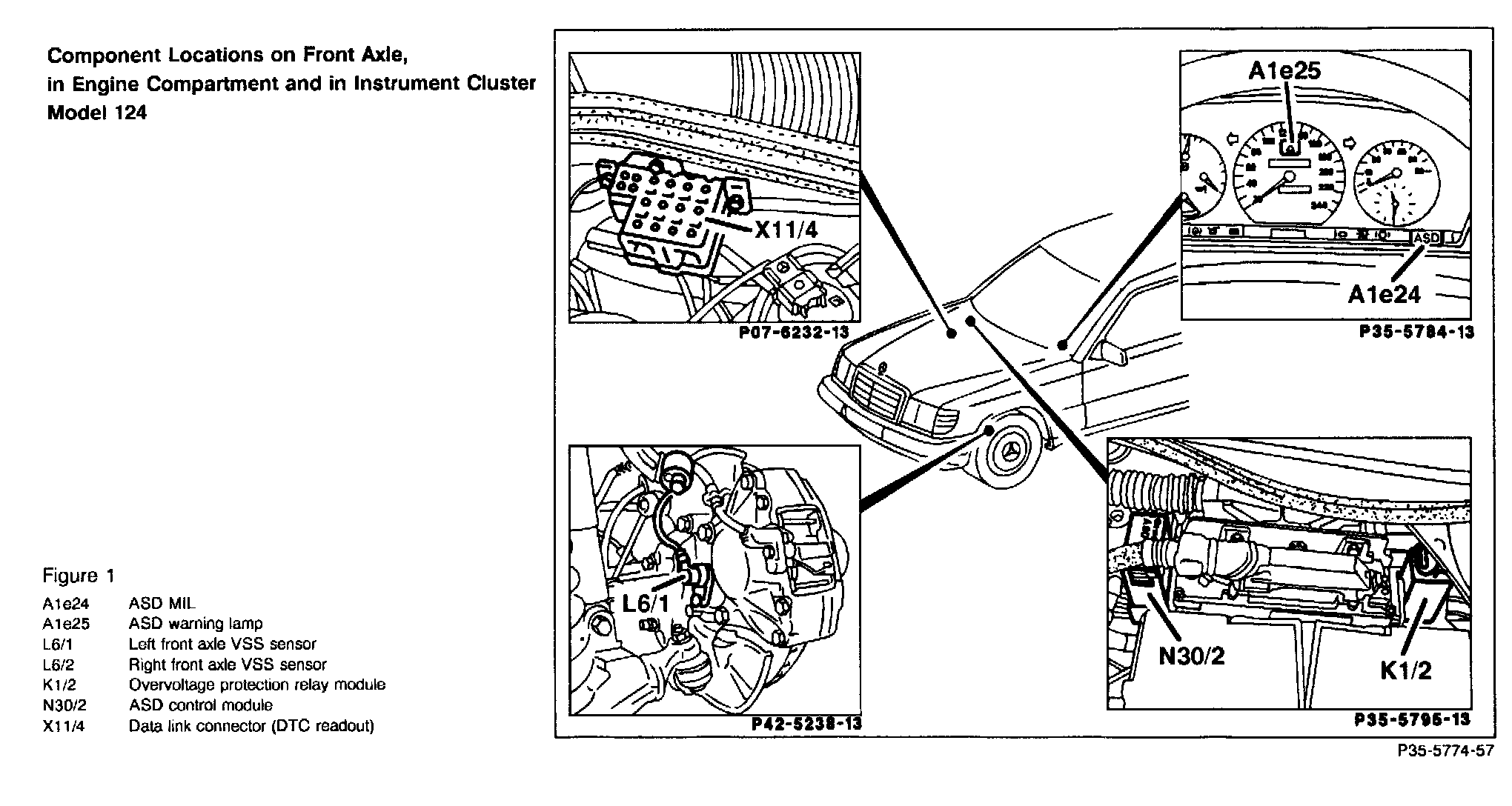

Model 124:




Model 124:

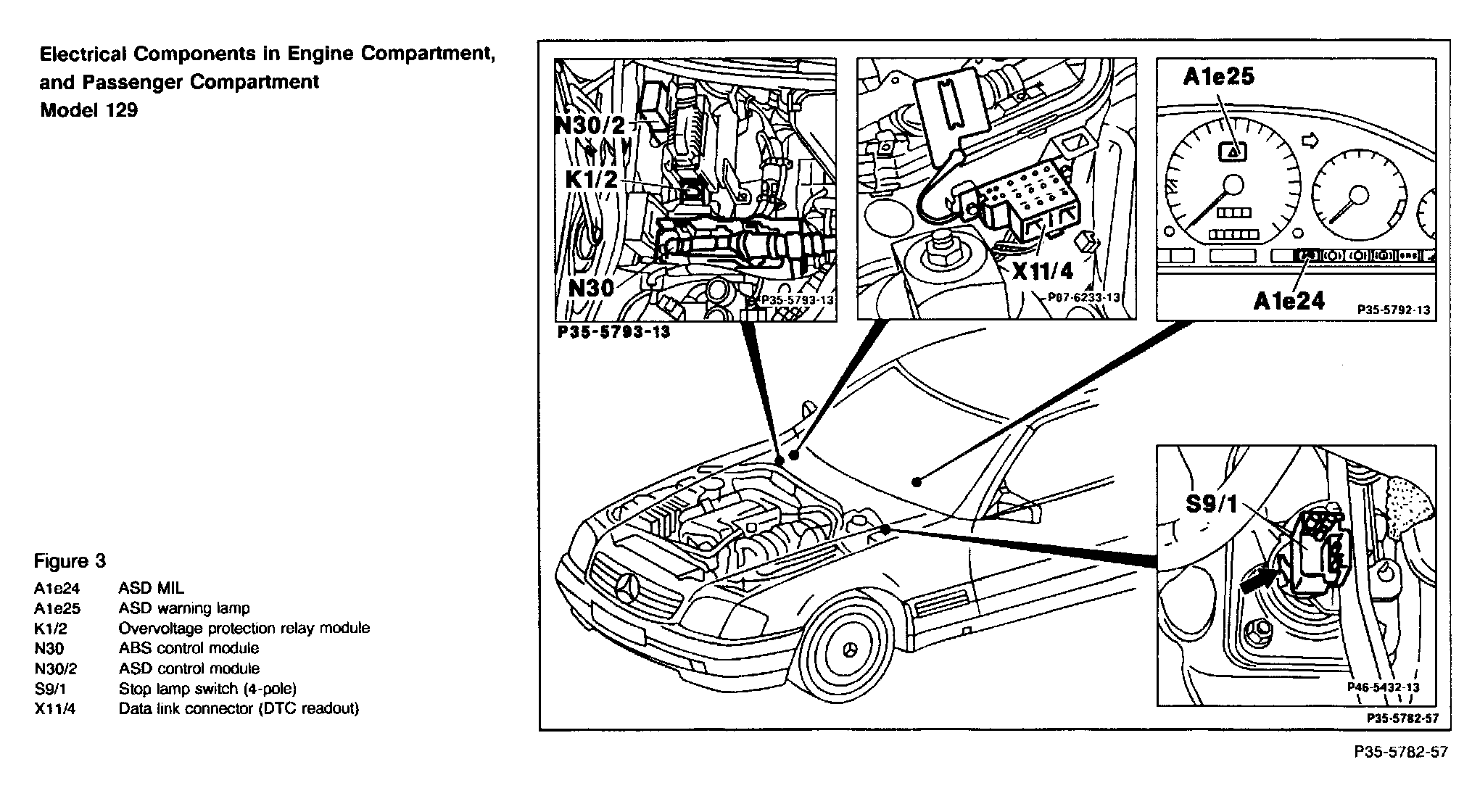

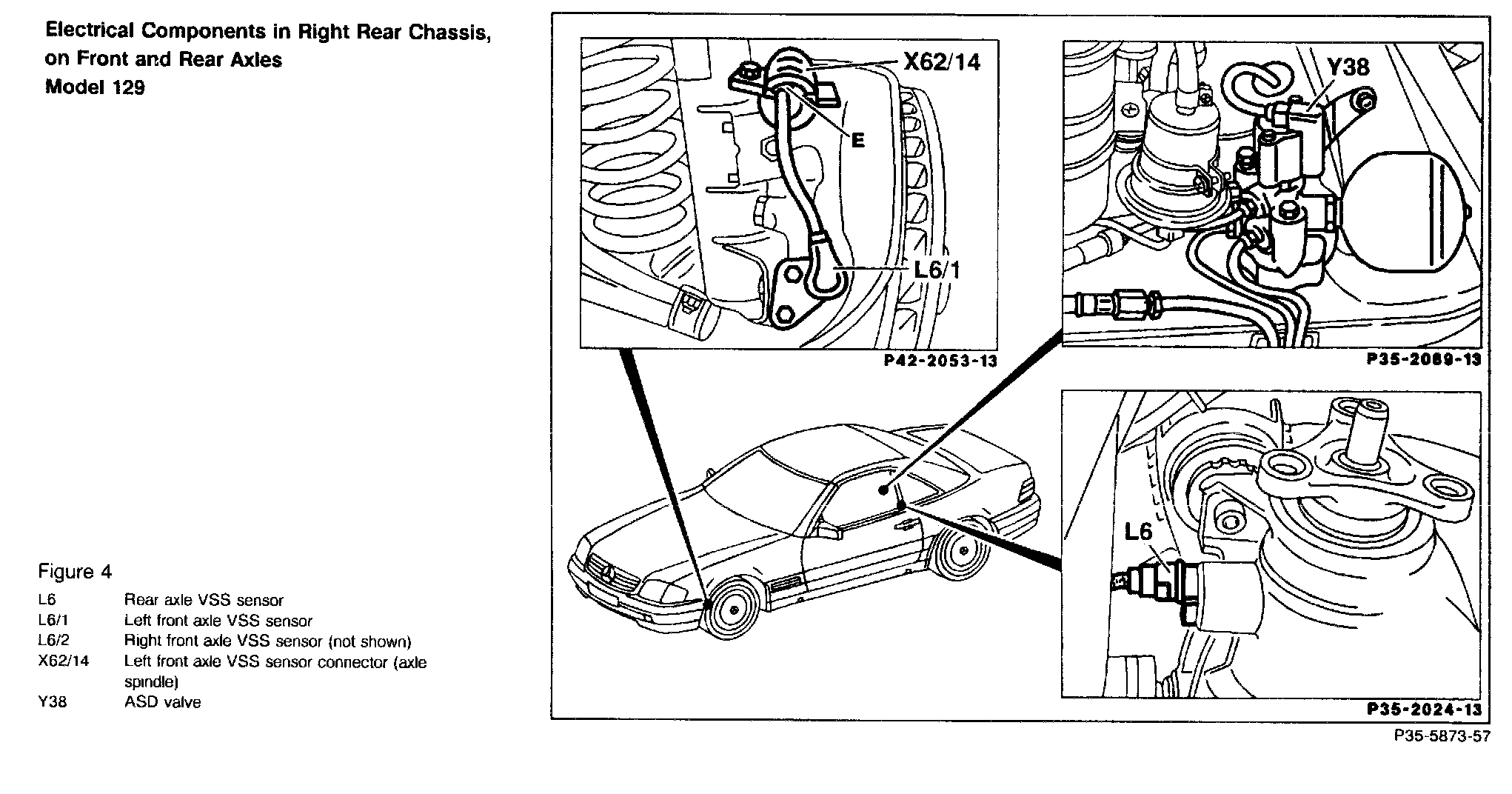

Model 129:




Model 129:

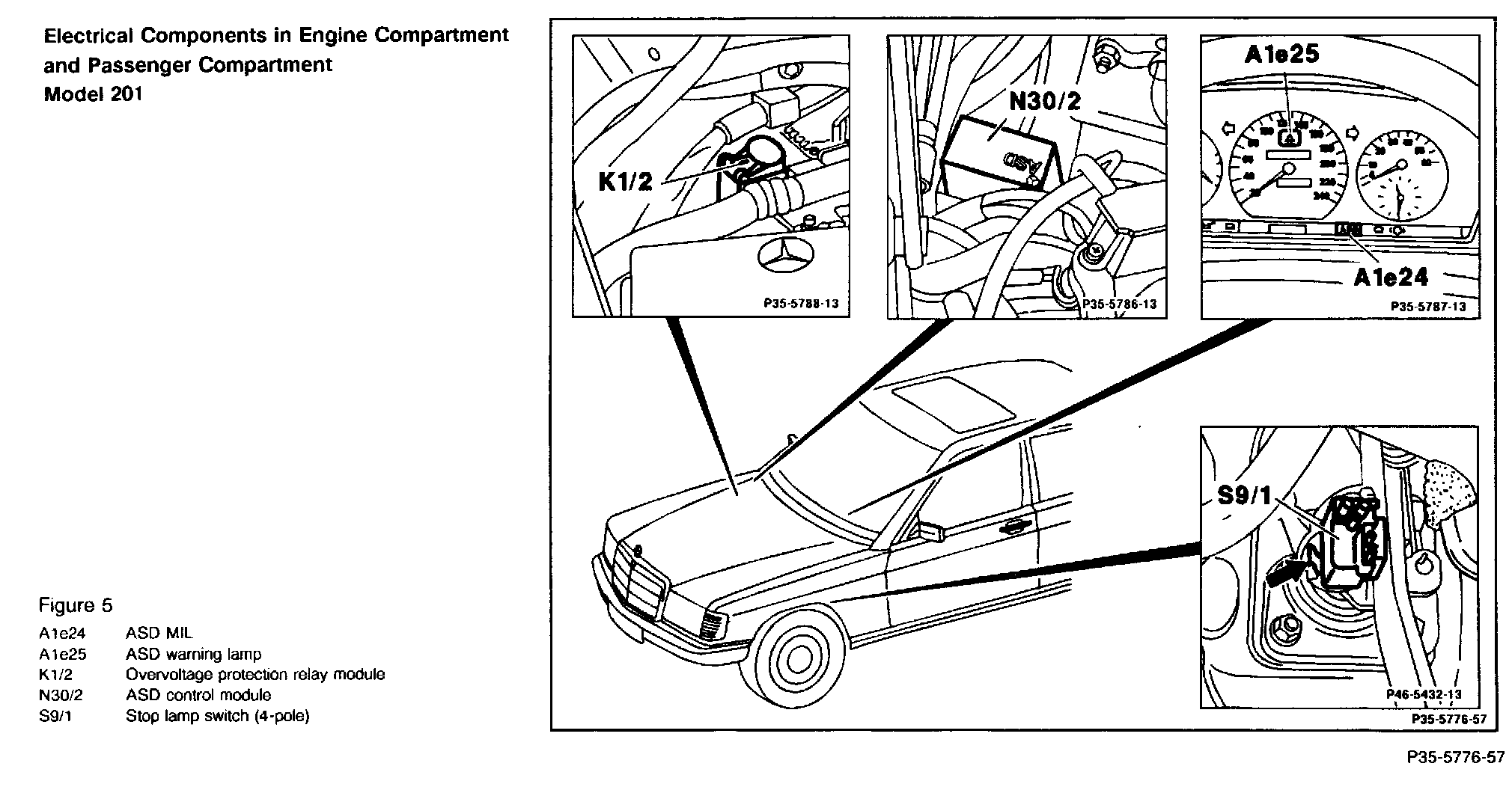

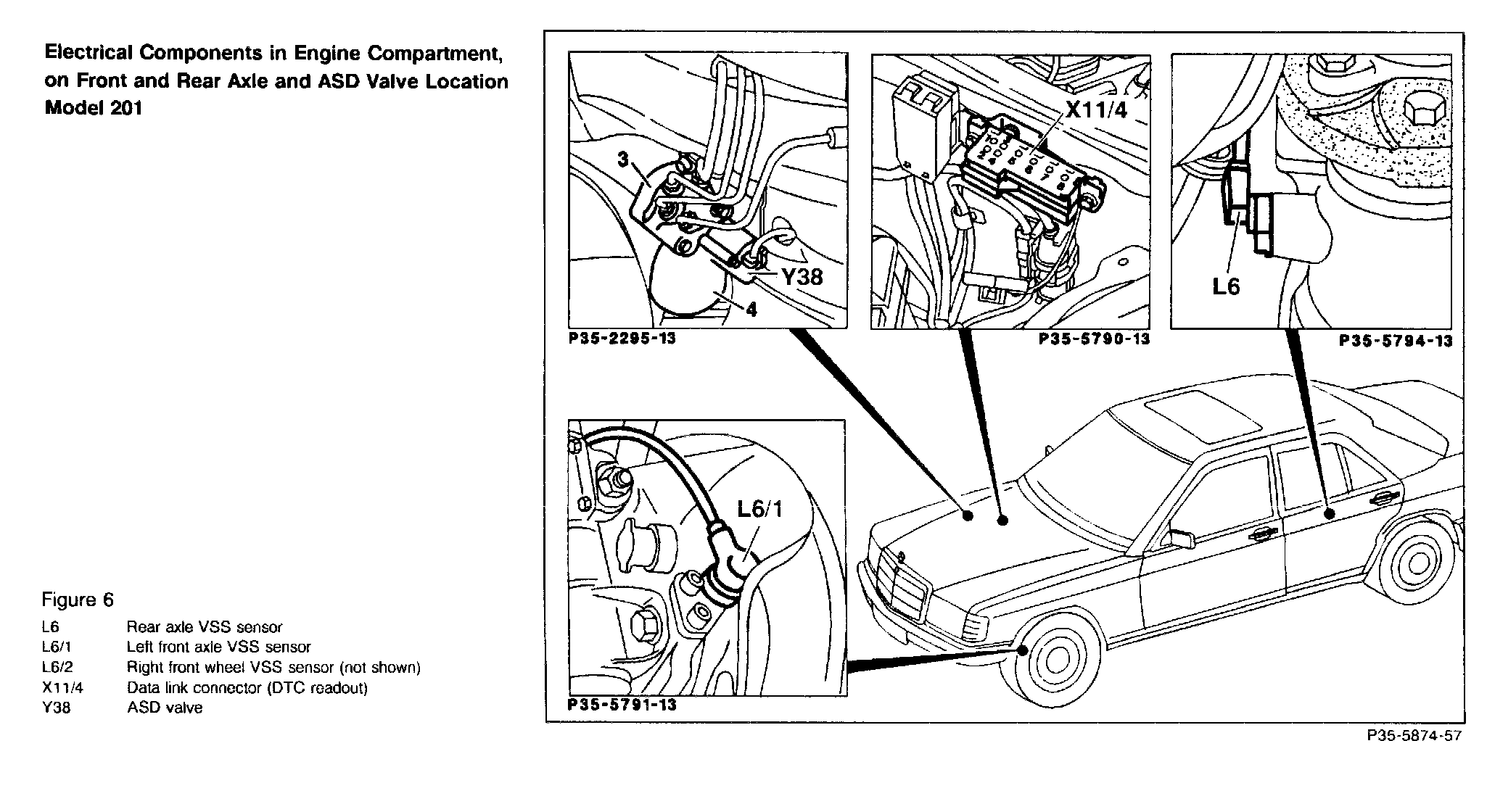

Model 201:




���$Model 201:
