Description and Operation
>>
ABS Only
>>
Normal Mode and Pressure Build Up Control Functions
Normal Mode and Pressure Build Up Control Functions

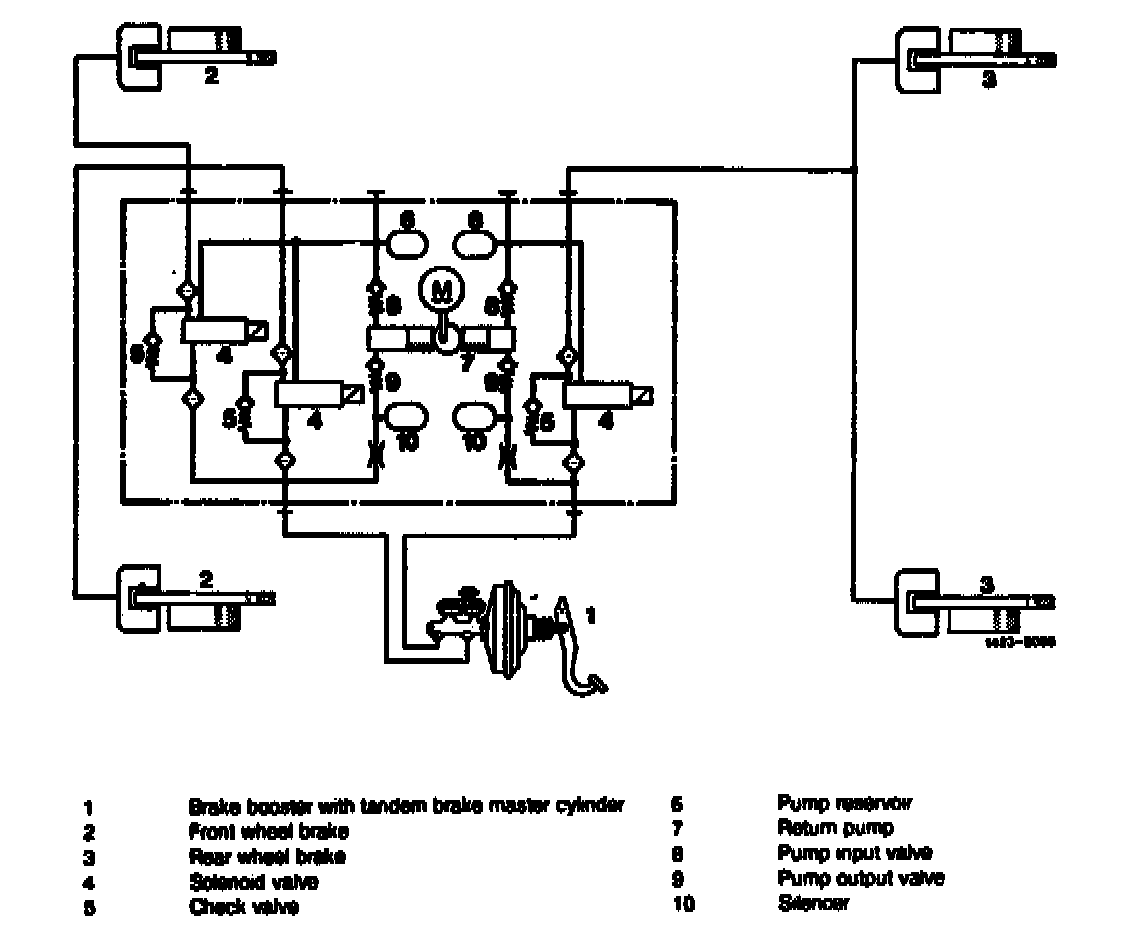

Pressure Build Up Stage
In the pressure build-up stage the pressure can be increased via the open input valve in the solenoid valve up to the pressure activated by the tandem
brake master cylinder
.
