B.Test of Operation

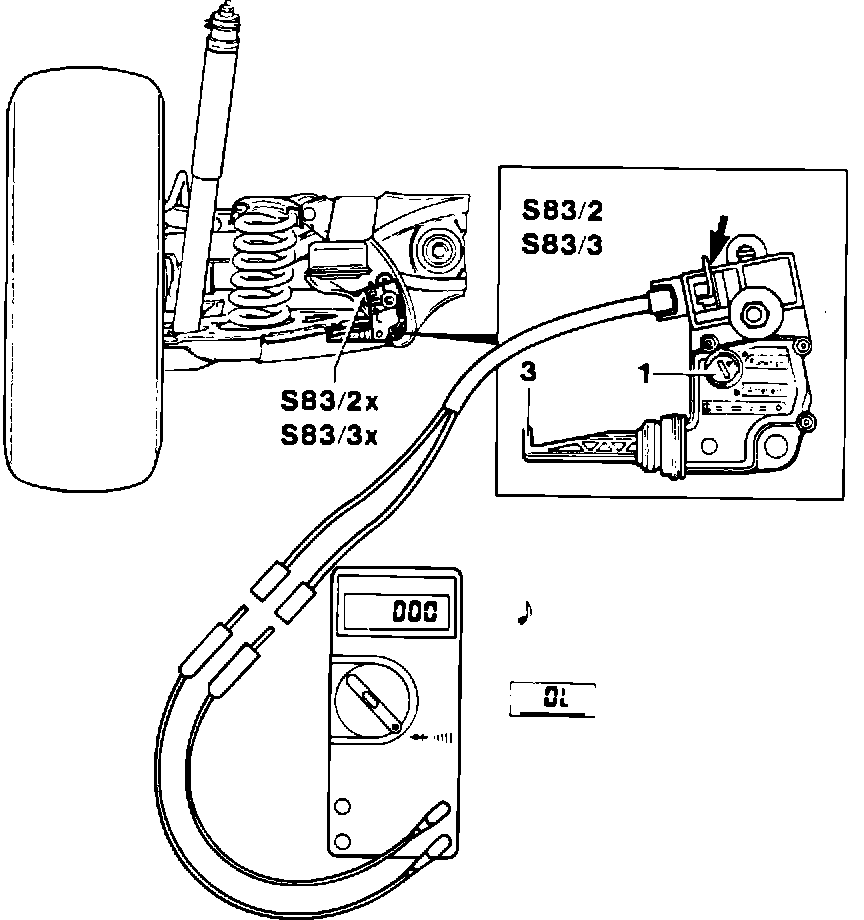

Figure 2:

1. Disconnect rear axle switch cables by pushing on clip (arrow, Figure 2) and connect test cable 129 589 12 63 00 as shown in Figure 2. Connect multimeter to test cable and set it to continuity or tone. When lowering vehicle to ground, meter indicates continuty or a beep is heard.

2. Raise left side of vehicle on chassis only.

IMPORTANT! Shortly before rear suspension is fully extended (rear wheel lifts off the ground) the meter should indicate an open circuit, or the beep should stop.

3. Lower left side of vehicle and repeat test with its right side by raising the right side of the vehicle.

4. Reconnect rear axle switch cables.
Special Tool


Tool Name Tool Number Group/Category Dealer Net Price*


Test cable 129 589 12 63 00 35 A $10.97

*price subject to change


Equipment


Multimeter SUN DMM5; Fluke Model 23


Warranty claim Submission Information Campaign Claim Type 3 Campaign # 90-0731
Damage Code: 91940318
Repair Code: 10 Adjust and test function of roll bar switches at rear axle 0.8 hr.


Please Note: You need not enter labor details on the claim, however, your claim total should include the appropriate labor allowance (your warranty labor rate multiplied by 0.8 hrs.).

Completed campaign voucher form should be kept with the R.O.
