77-435 Remove/Install, Adjust Limit Switch, Cloth Holding Brace Up Position

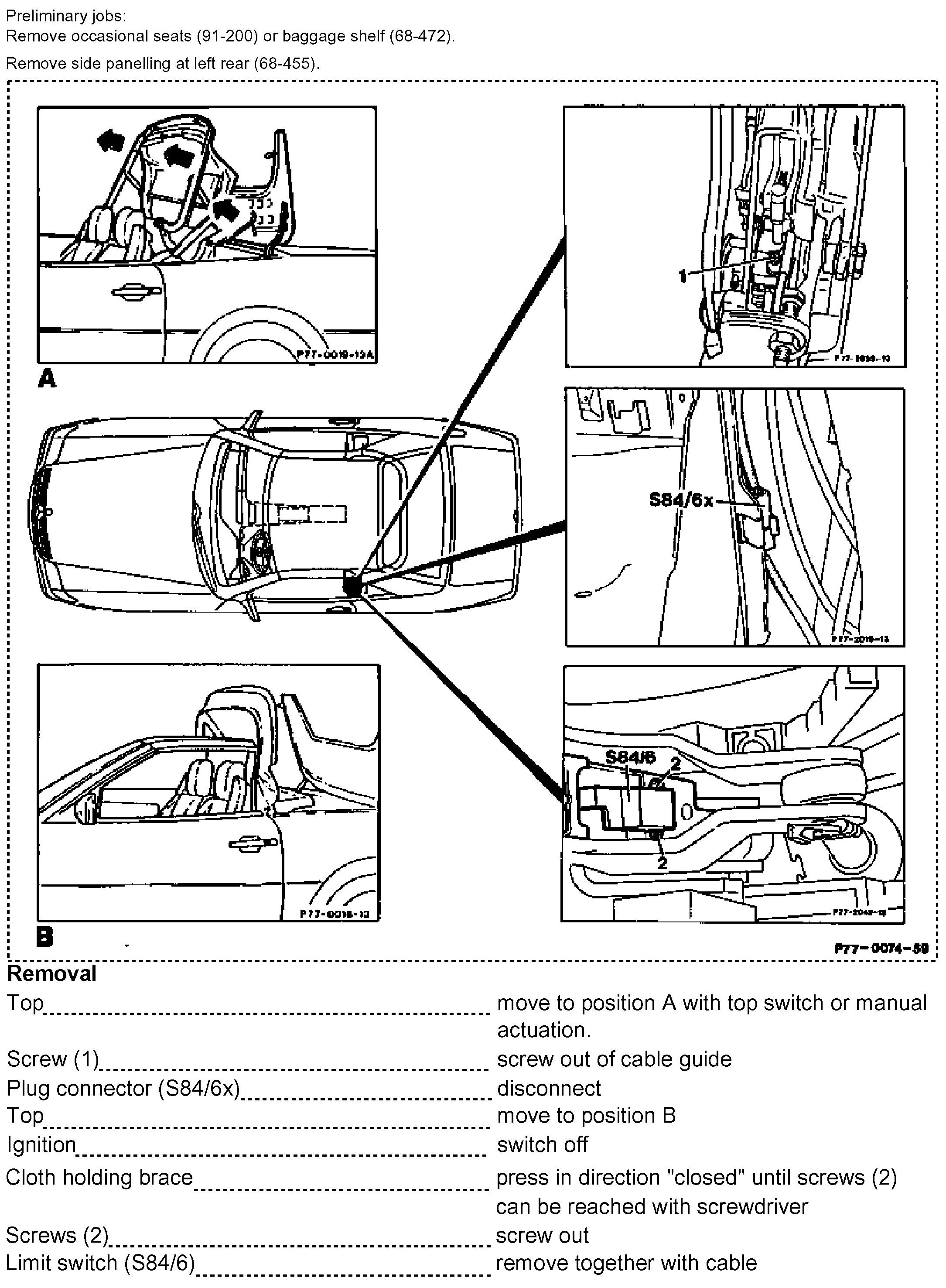

77-435 Removal, Installation And Adjustment Of Limit Switch, Cloth Holding Brace Up Position







Installation
Install in opposite order

NOTE: Lay limit switch cable along flexible hydraulic lines

Adjustment
Connect multimeter to plug connector (S84/6x).
Set multimeter to continuity test (acoustic signal).
Adjust limit switch (S84/6) by moving in oblong holes.
Limit switch (S84/6) should switch approx. 100 mm before reaching the uppermost position of the cloth holding brace.
