300SL (129.061) L6-3.0L (104.981)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Convertible Top Position Sensor / Switch
>>
Service and Repair
>>
Removal and Replacement
>>

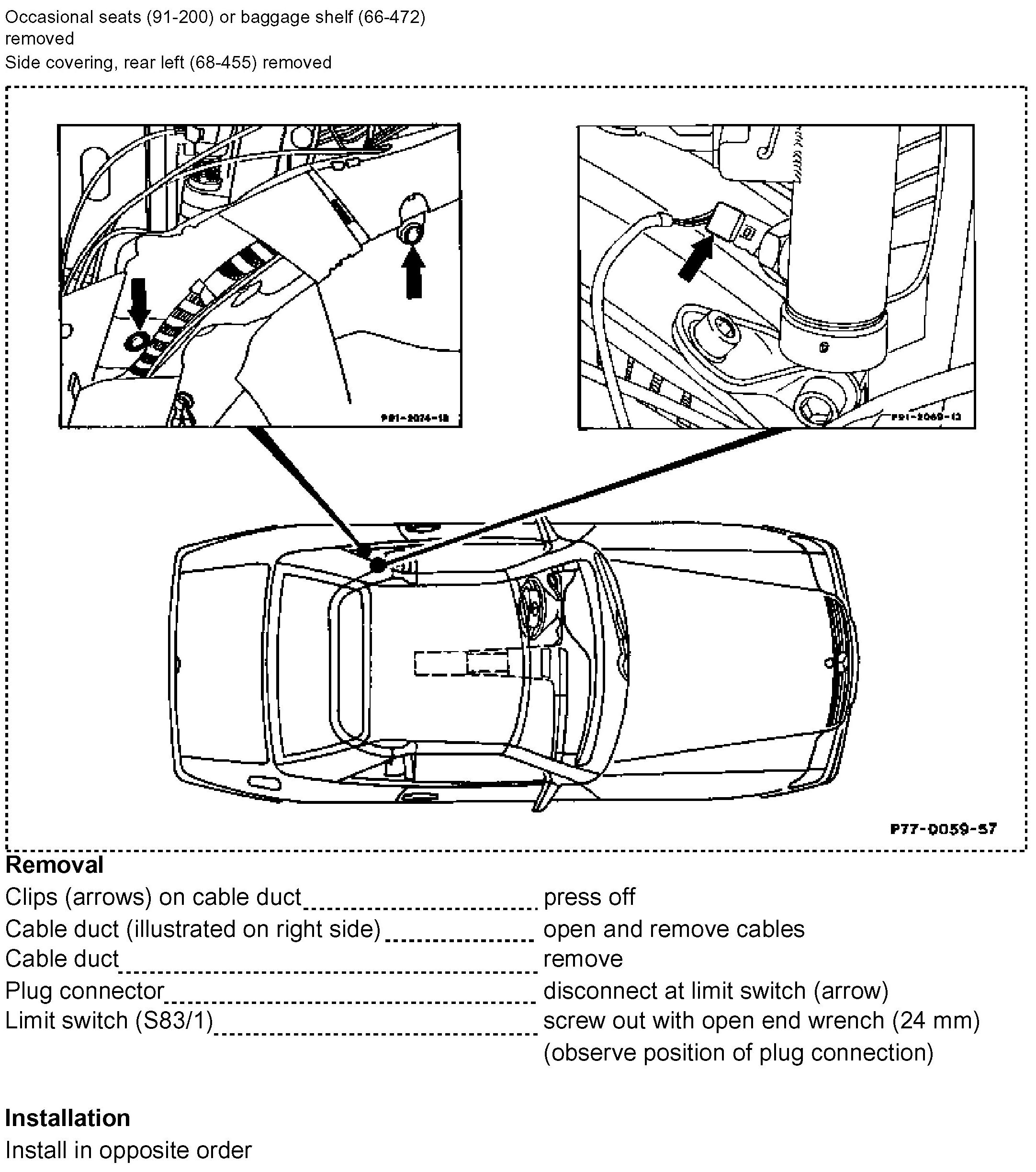

77-400 Remove/Install Limit Switch, Roll Bar Down
77-400 Remove/Install Limit Switch, Roll Bar Down
77-400 Removal And Installation Of Limit Switch, Roll Bar Down
