77-443 Remove/Install, Adjust Limit Switch - Top Locked At Front

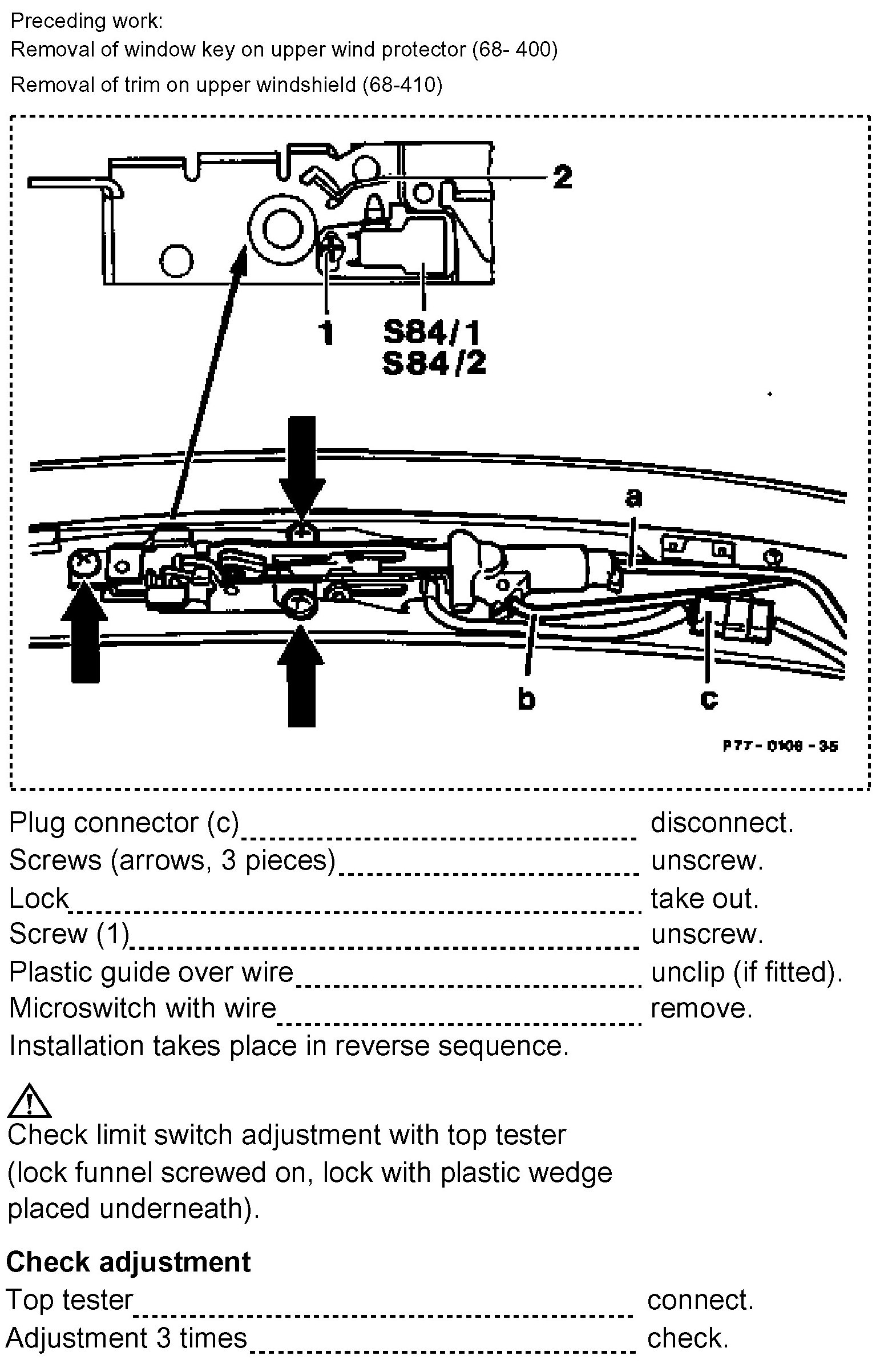

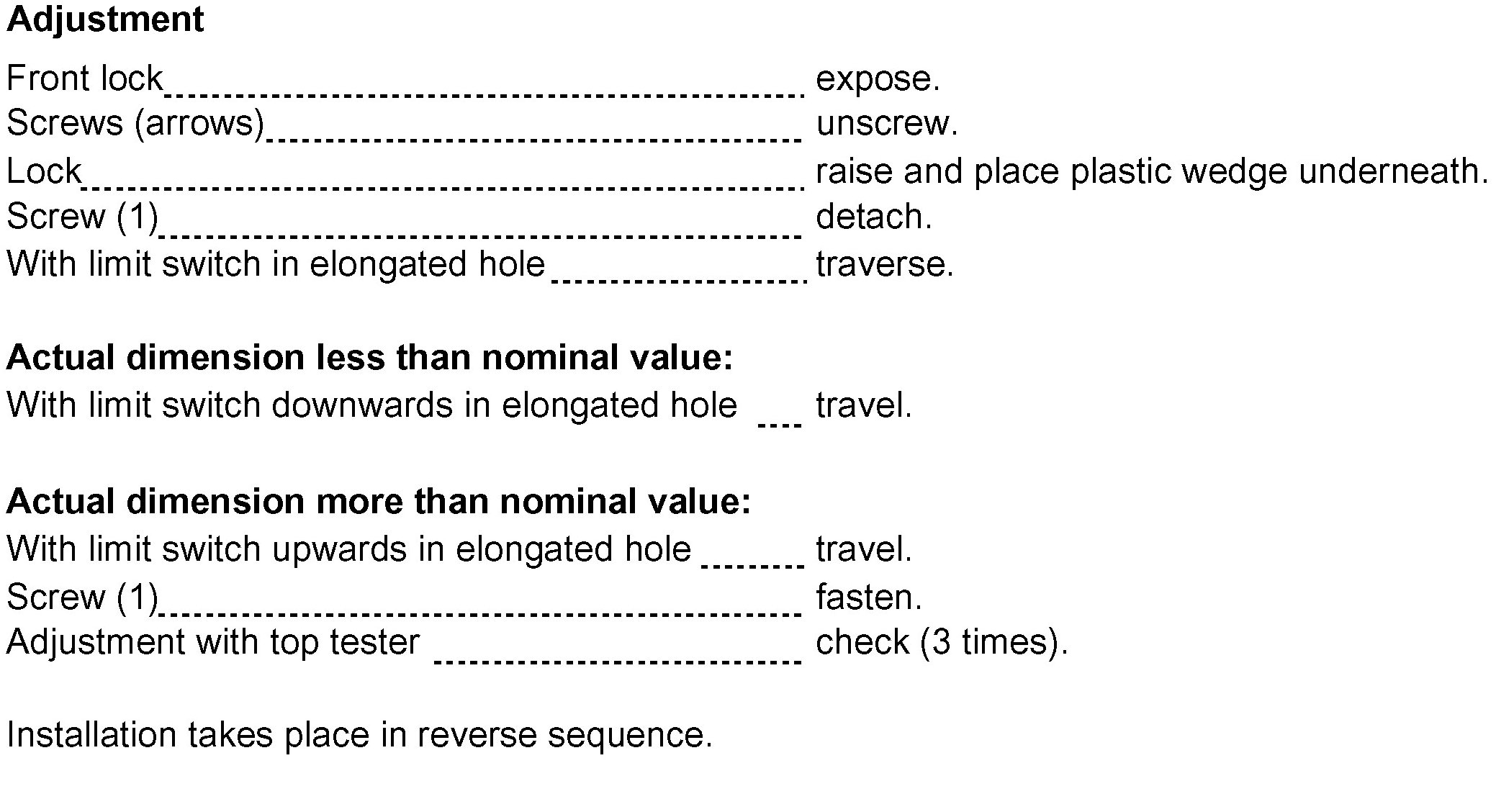

77-443 Removal, installation and adjustment of limit switch - top locked at front (only possible with top tester produced by Bara- Electronic)
