Home >> Mercedes Benz >> 1990 >> 300SL (129.061) L6-3.0L (104.981) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Seat Adjustment (ESA) >> ETP - Electrical Test Program >> Test Steps >> Left Seat >> ETP Test Step 6.0

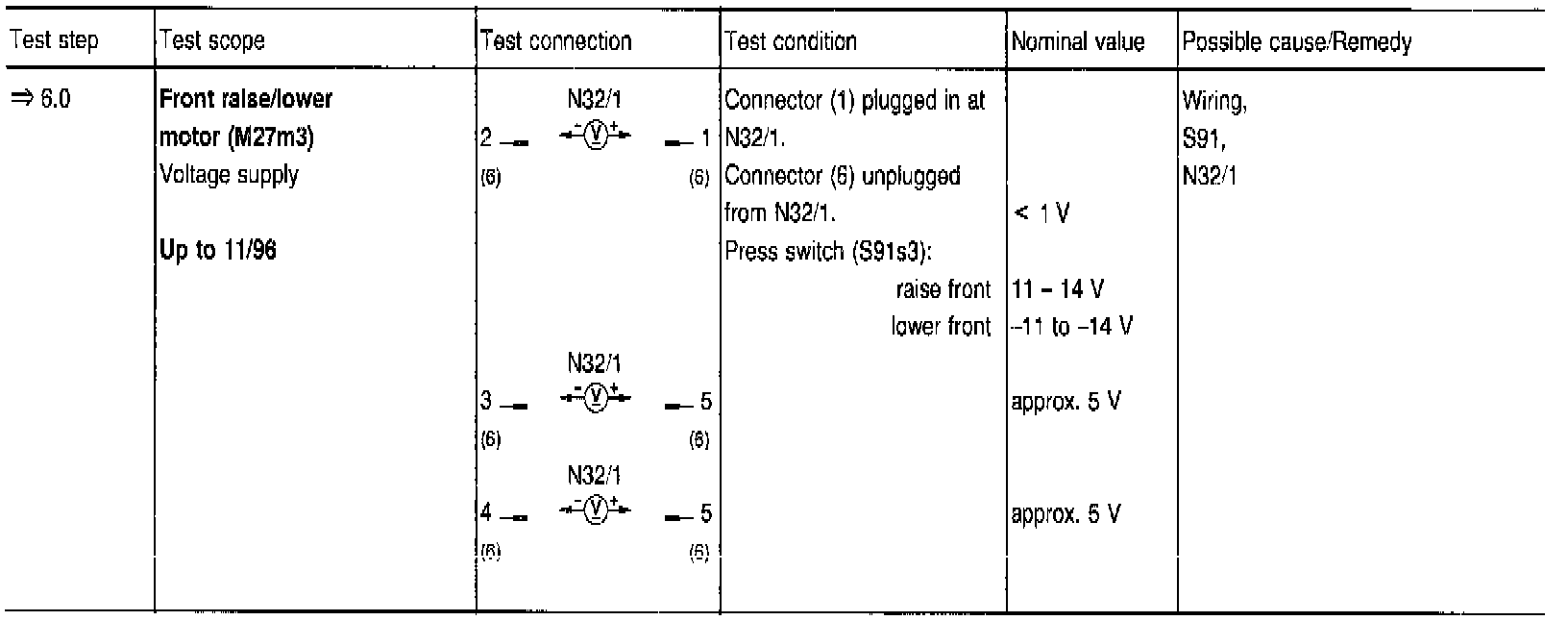

ETP Test Step 6.0

Step 6.0:
