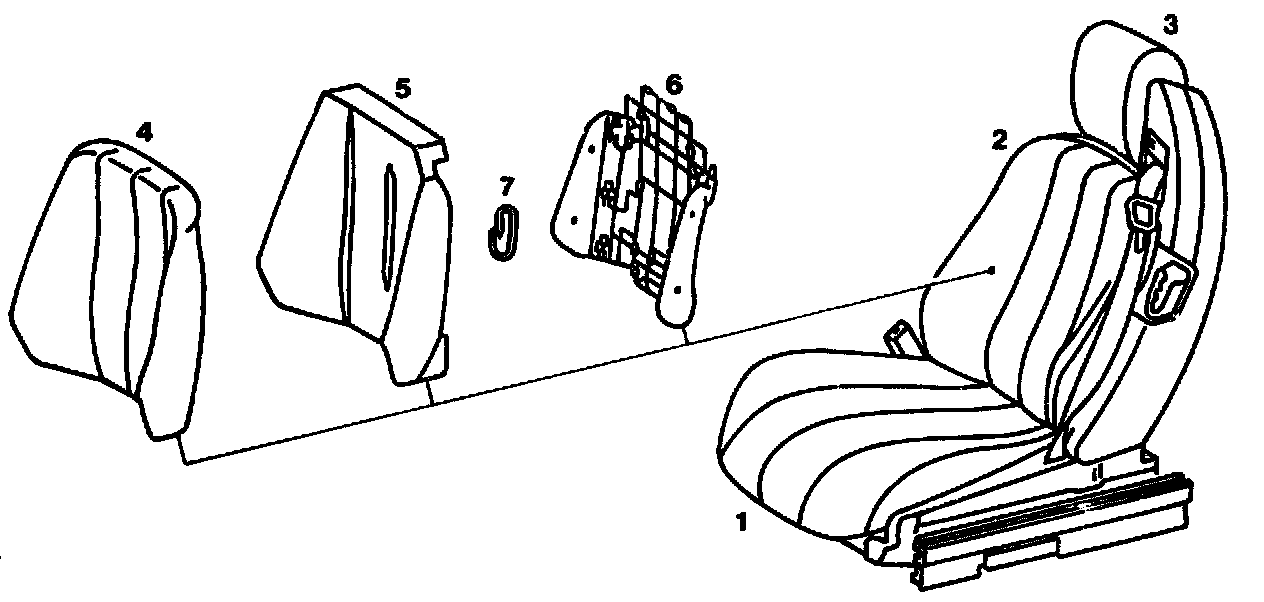

Remove/Install Cover on Front Seat Backrest

Front seat cushion and backrest cushion removed. Service and Repair







Backrest cushion (2)
lay down on suitable surface with cover downward.

Backrest cover (4)
unhook all the way around the attachment strip on backrest frame on rear.

Backrest frame (6)
remove from rubberized fiber matting (5).

Clamps (7) 15 each
unhook from clamping wire with hook tool, part no. 201 589 11 30 00.

Backrest cover (4)
remove from rubberized fiber matting (5).

Reinstall
in opposite order.
