Covering on Rear of Front Seat Backrest

Driver's seat cushion and backrest cushion removed. Service and Repair
Covering on side of backrest frame removed. Covering on Side of Backrest Frame

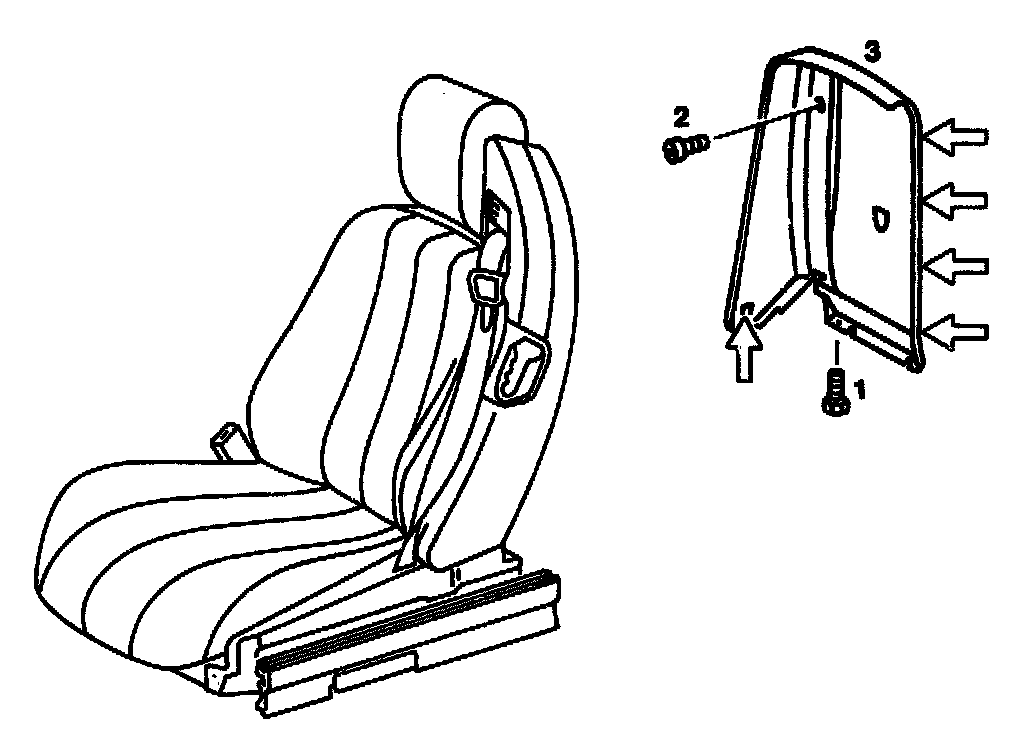

Screw (1)
unscrew.

Screw (2)
unscrew.

Covering (3)
unhook at side of backrest frame (4 arrows)

Covering (3)
fold toward rear at top and remove upward

Covering (3)
Insert retaining clip at side on backrest bearing bolt and insert on backrest frame (arrows)

Continue to reinstall in opposite order.


Removal, Installation

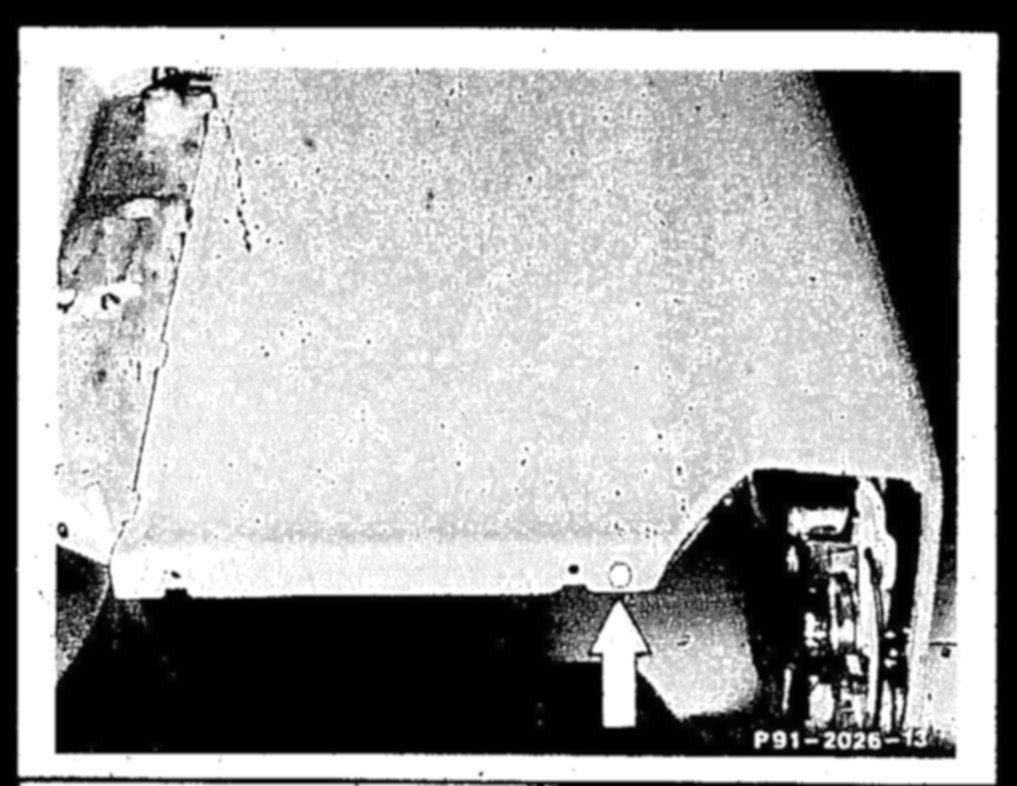

1 Unscrew screw.

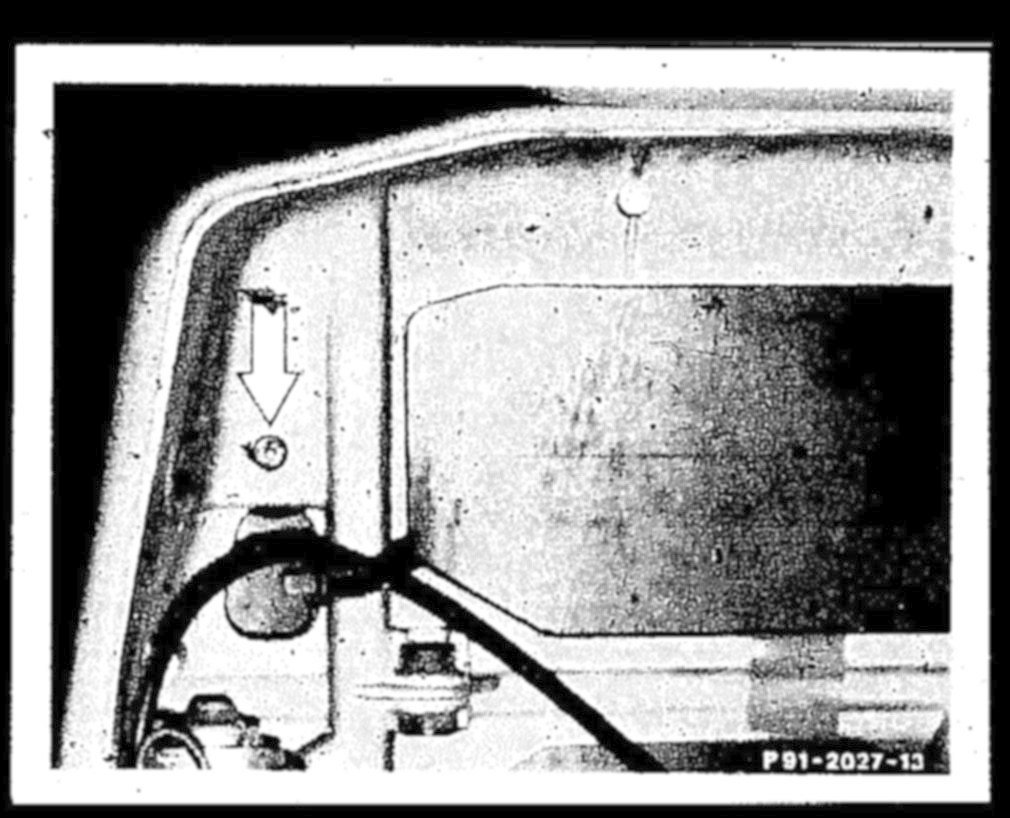

2 Unscrew screw on side at top.

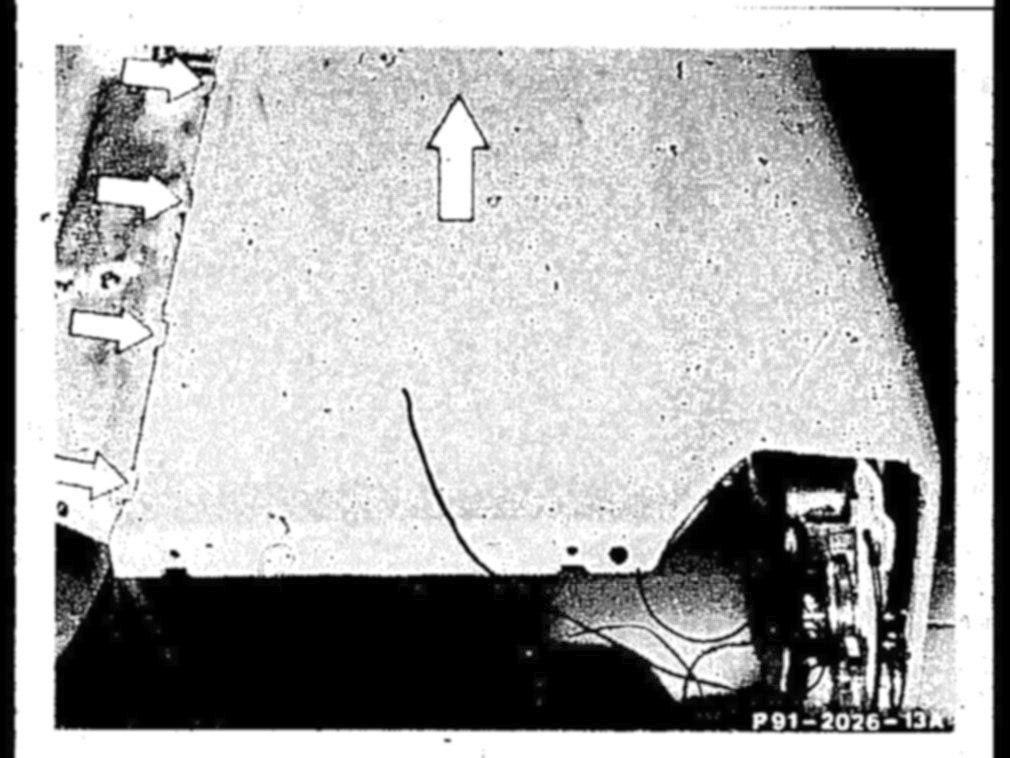

3 Unhook at side on backrest frame and fold toward rear at top and remove upward.

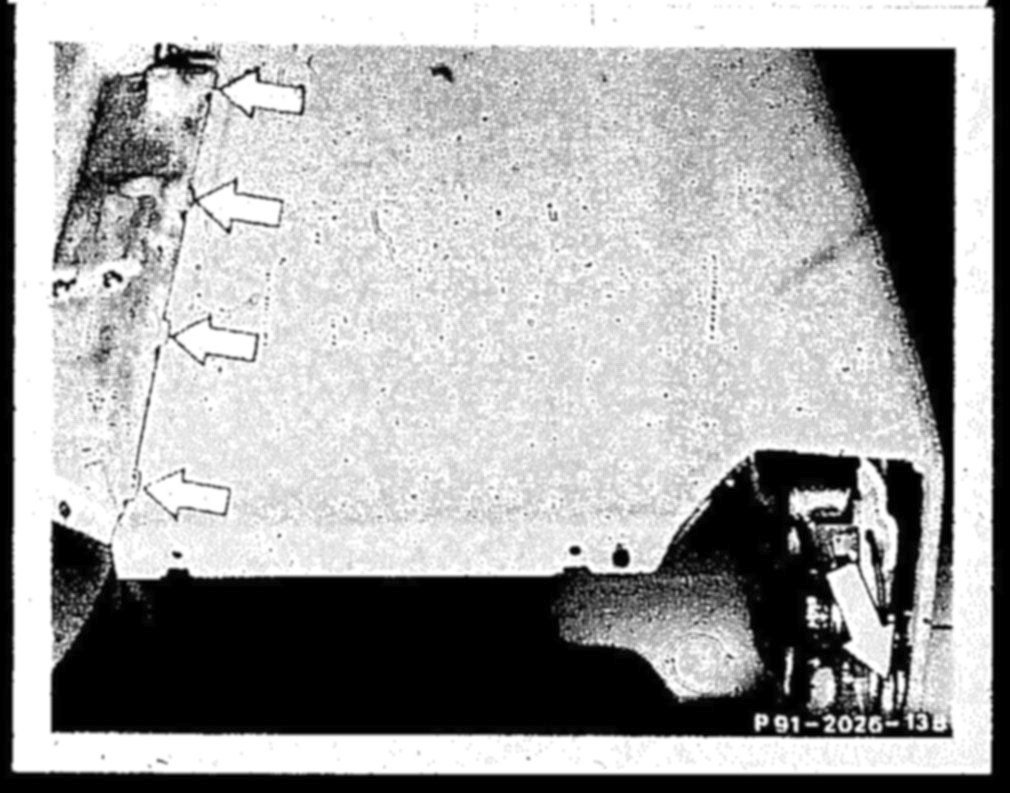

4 Insert covering with retaining clip on side on backrest bearing bolt and insert on backrest frame.
5 Continue to reinstall in opposite order.
