Replacing Weatherstrip At A-Pillars

Work Instructions Number: 253a


SUBJECT: REPLACING WEATHERSTRIP AT A-PILLARS MODEL 129

Figure 1:

1. Remove panels at A-pillars (job no. 88-850).

2. Remove cover above windshield (job no. 68-410).

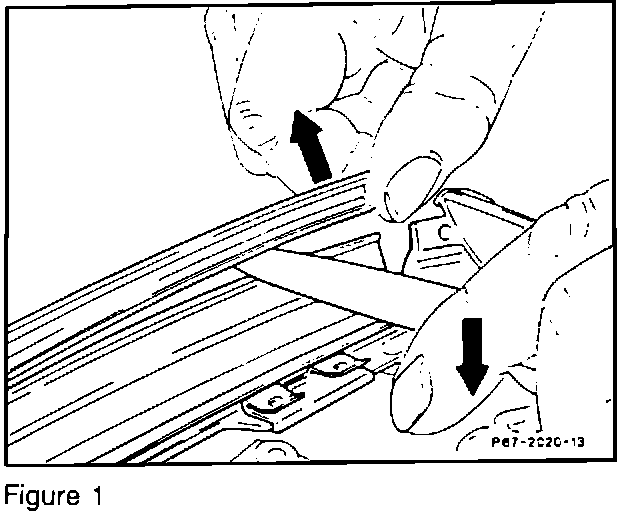

3. Remove trim at top of windshield (Figure 1).

Figure 2:

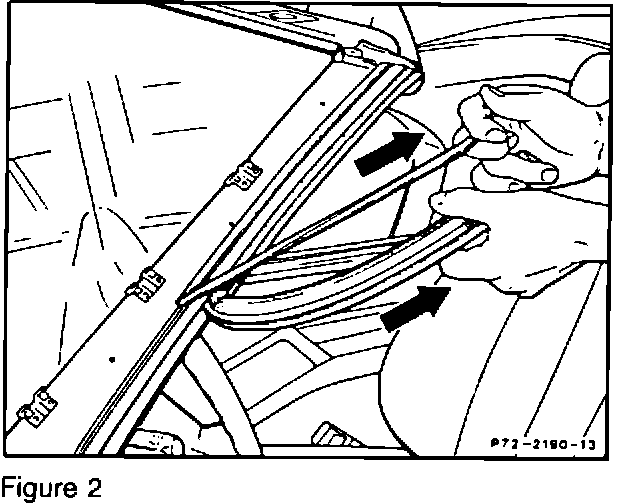

4. Remove weatherstrips at A-pillars (Figure 2).

If "A" pillars are equipped with trim cover, remove first.

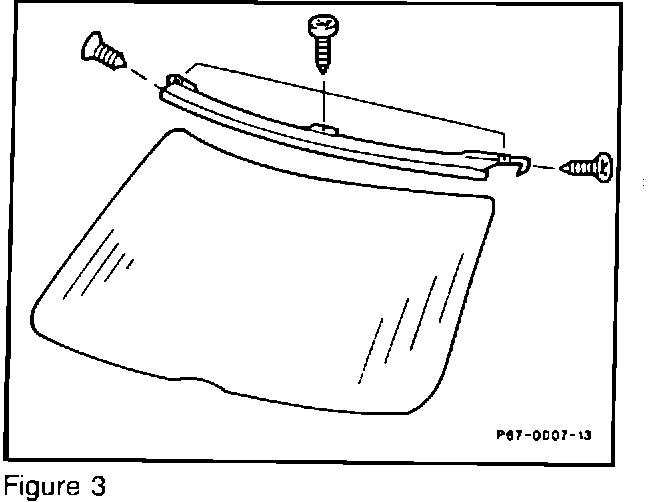

5. Remove rail above windshield (Figure 3).

Note: Watch for possible spacers between rail and windshield. They must be reinstalled.

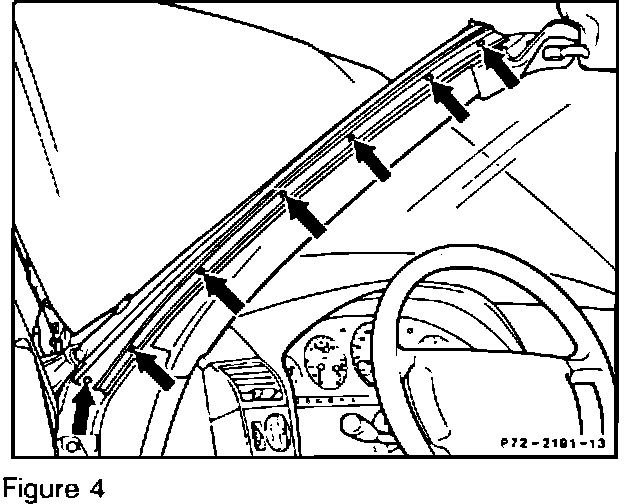

6. Remove rails at A-pillars (Figure 4).

Note: Watch for possible spacers between rail and A-pillar. They must be reinstalled.
