Convertible/Hard Top - Alignment Fixture

REF. NO. MBNA 60/2

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: September 1990

SUBJECT:
ALIGNMENT FIXTURE, SOFT TOP/HARDTOP MODEL 129





The correct function of the electronically/hydraulically controlled soft top is ensured only if the bolt-on and connecting points are in precise compliance with the design specifications.

For this purpose, an alignment fixture is available as a special tool for accident repairs. It serves to check the most important points on the body and to hold new parts in position for the welding process.

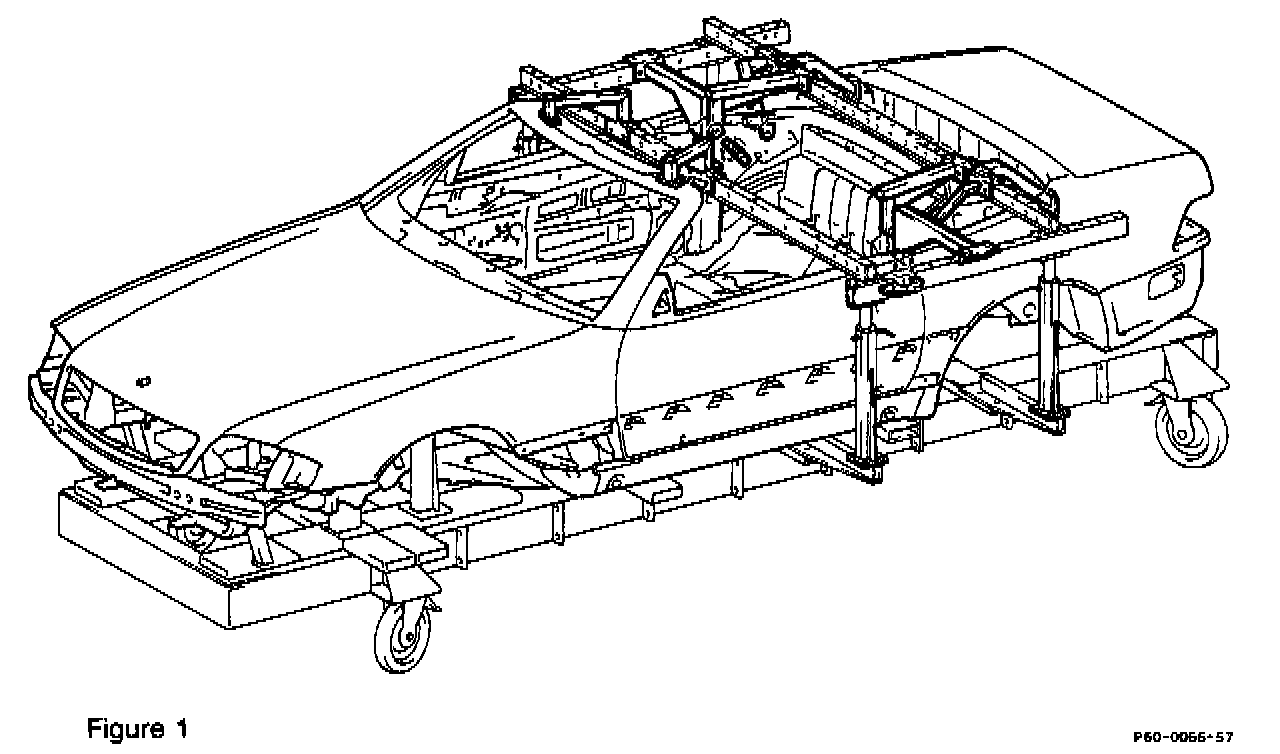

The alignment fixture mounts to the base of the straightening set R 129 and consists of a support frame and an alignment angle set.

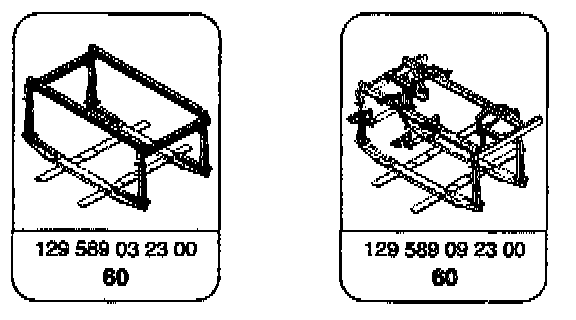

The support frame (129 589 03 23 00) is fastened to lateral extensions of the straightening set crossmembers. It can be used in combination with the Celette and with the Car-Bench systems.

The alignment angle set (129 589 09 23 00) consists of 12 model-specific locating members which can be fastened to the support frame. With these locating members all locating points important for the operation of the soft top can be checked or properly aligned during accident repairs.

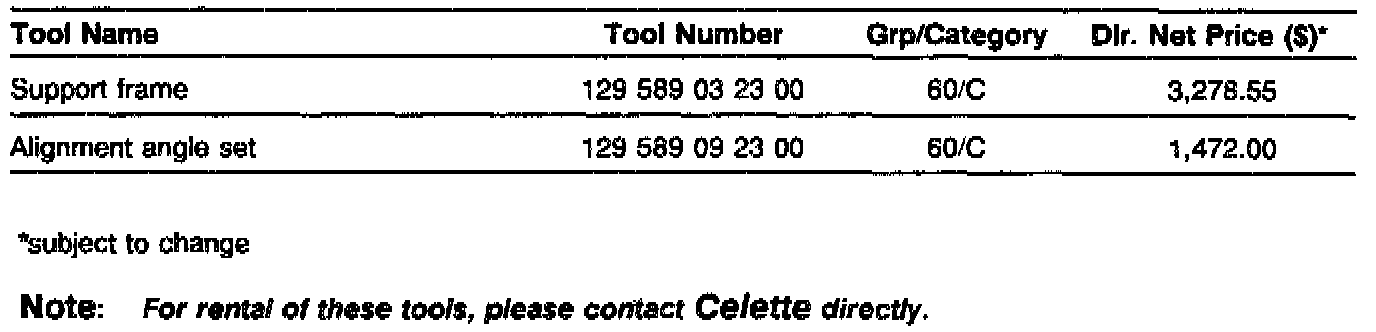

Special Tools
