Convertible - Checking the Slide Rails

91mercedes04

REF. NO. 77/24


TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: June 1991


SUBJECT: MODEL 129 CHECKING THE SOFT TOP COMPARTMENT SLIDE RAILS


If misadjusted, the sharp edge of the slide rails in the soft top compartment can damage the rear edge of the soft top material when the top is closed. To prevent this, check the left and right slide rails at the rear for sharp edges and an acceptable fit to the fender, and correct if needed (applies to vehicles up to August 1990 production date).


Procedure

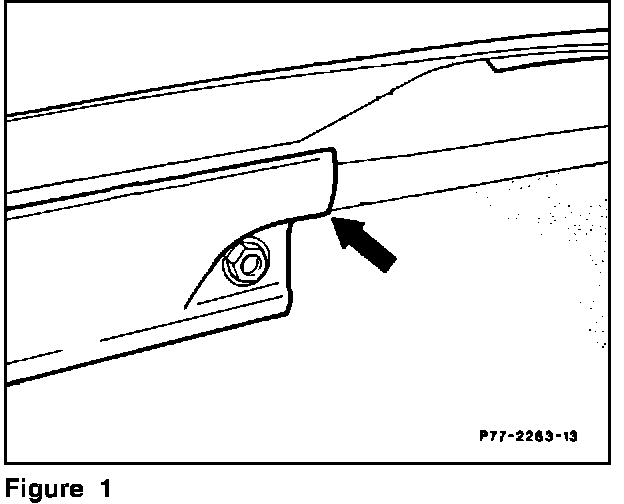

Figure 1:

Use a piece of wood and mallet, bend the edge (folding inwards) to correct the position of the slide rails toward the fender, so the sharp edge (arrow) cannot damage the fabric.


In Case of Warranty

Operation: Adjustment of soft top slide rails, inspect & correct

Damage Code Operation Number Time Model(s)

77*** ** 02-7724 0.2 hrs. 90
