AR77.30-P-2000A Remove/Install Base In Soft Top Compartment



AR77.30-P-2000A Removing And Installing Base In Soft Top Compartment

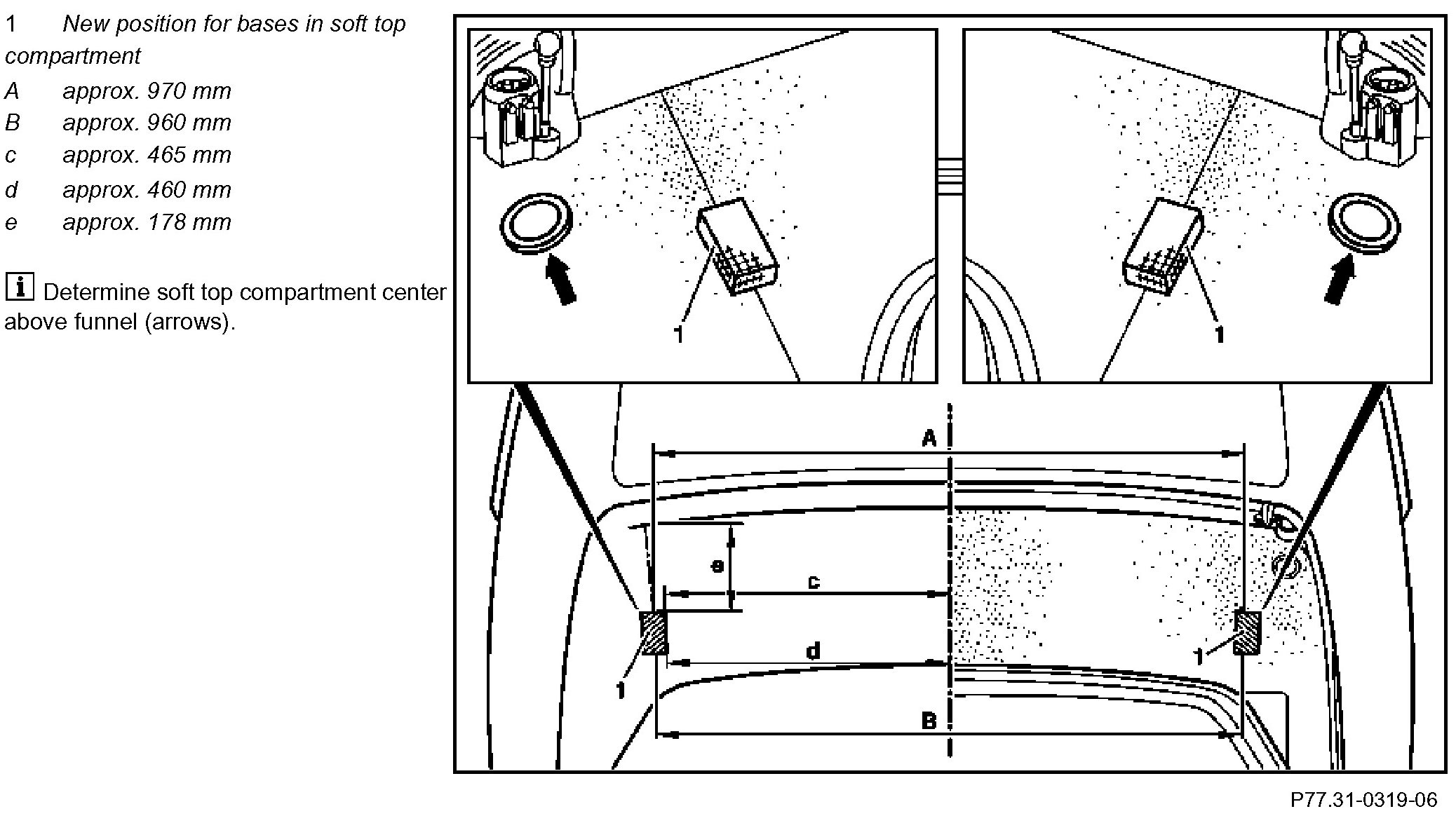

Component Identification:

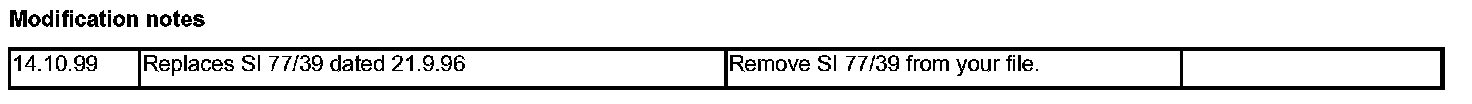

Modification Notes:

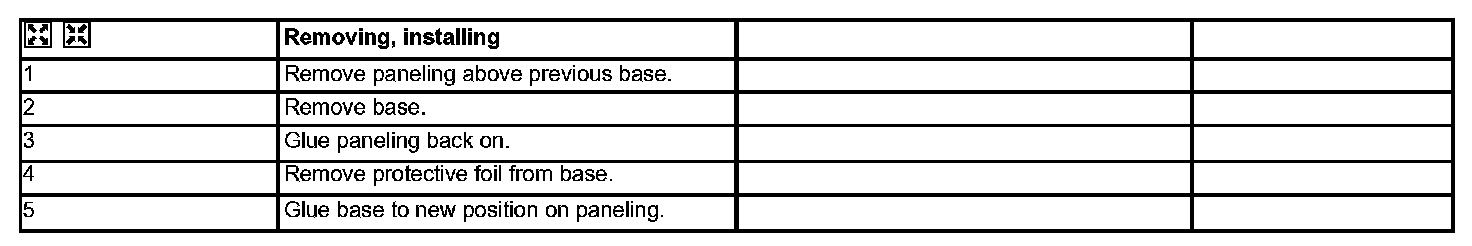

Steps 1 - 5:




Parts Ordering Notes:
