Remove/Install Headliner On Coupe Roof

Coupe roof removed (operating instructions)
Window molding removed Service and Repair

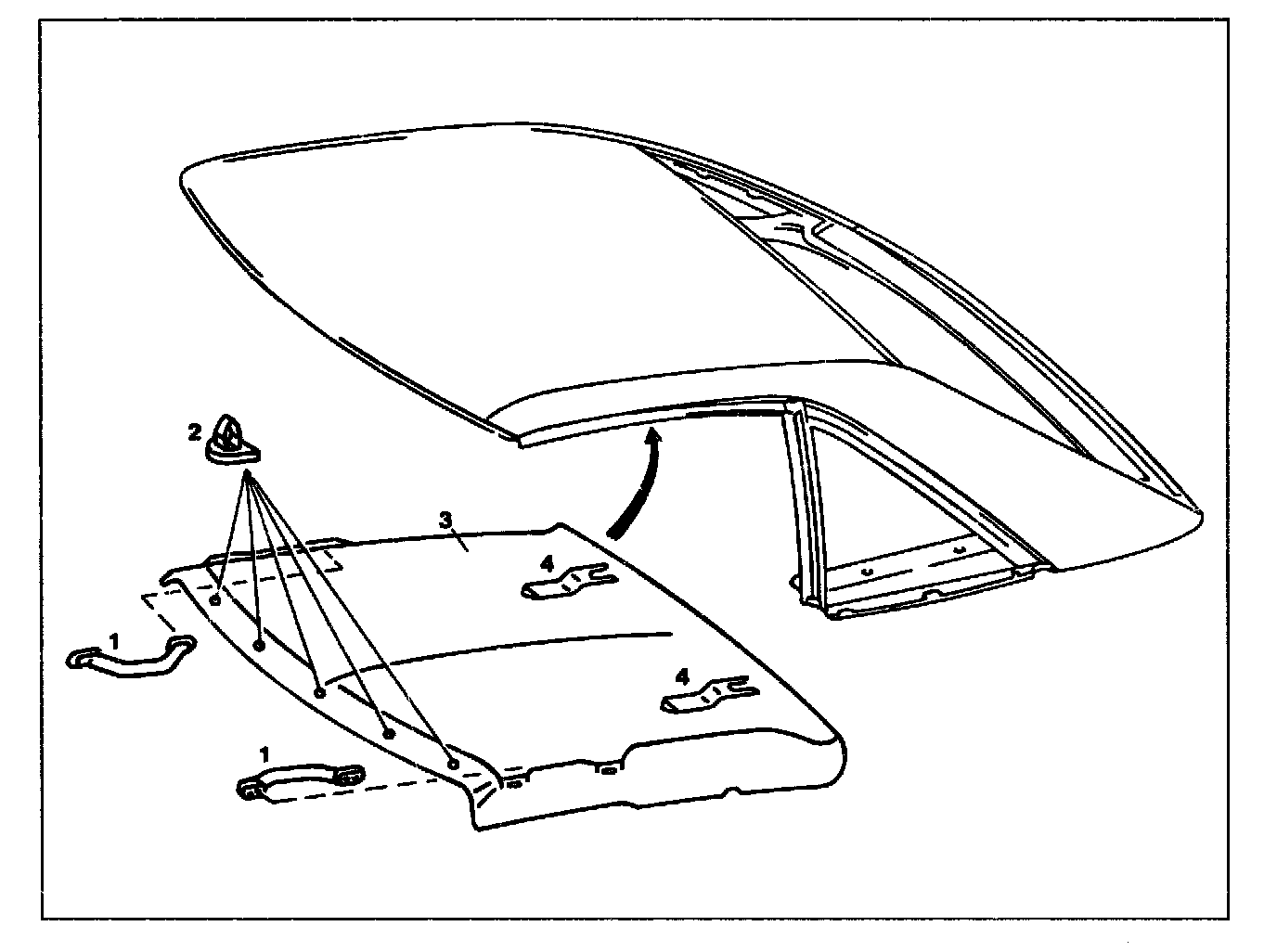

Handle (1)
Remove/install

Plastic clips (2) 5 each
Press out/press in

Headliner (3)
Remove toward rear with retaining clamps (4) (install from rear to front)

Installation note
After installation insert headliner under sealing frame on coupe roof at side.
