Trunk / Liftgate Latch Release Cable: Service and Repair
AZ88.50-P-0002C Retrofitting Trunk Lid Emergency Release
- mechanical emergency release

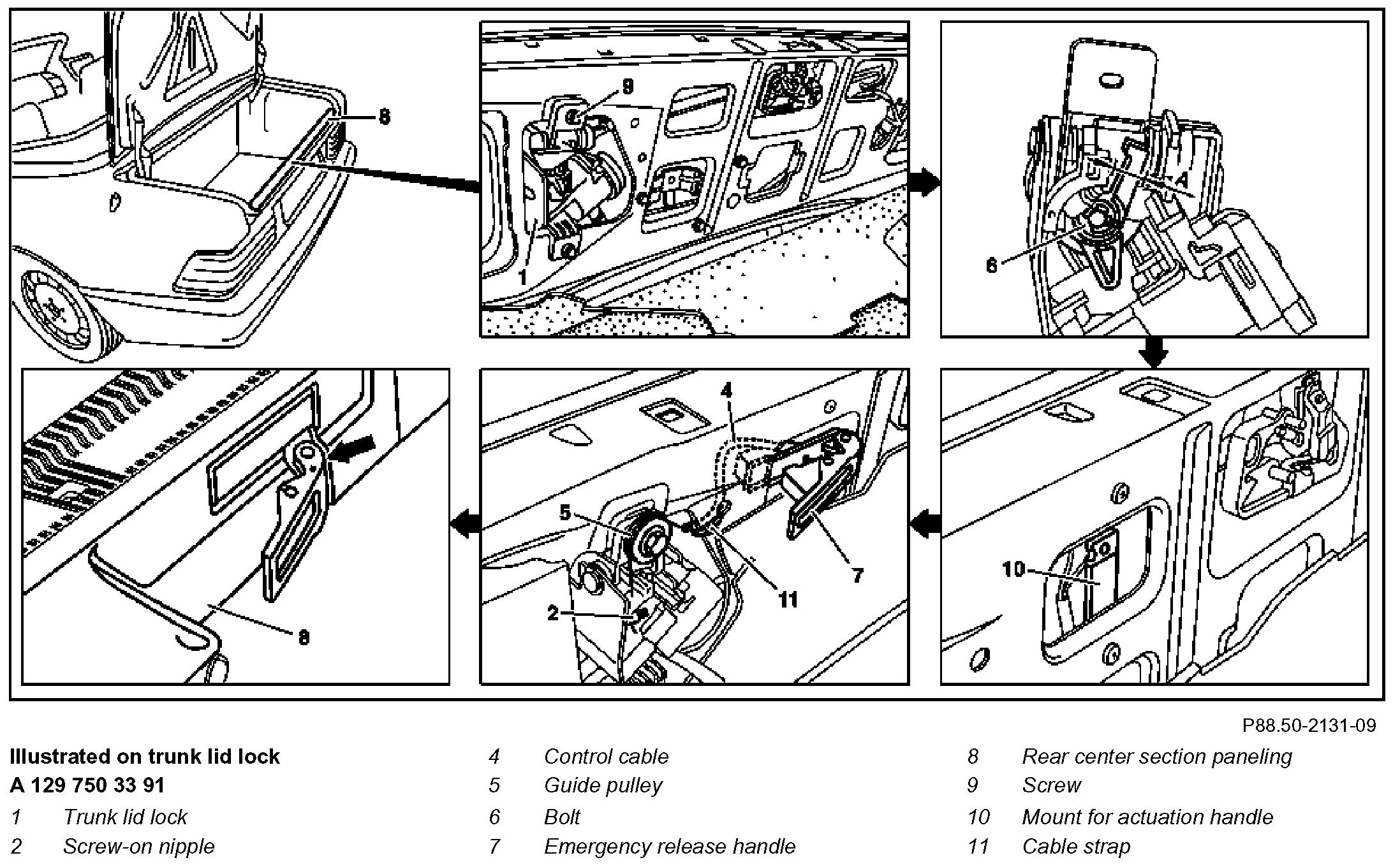

Component Identification:

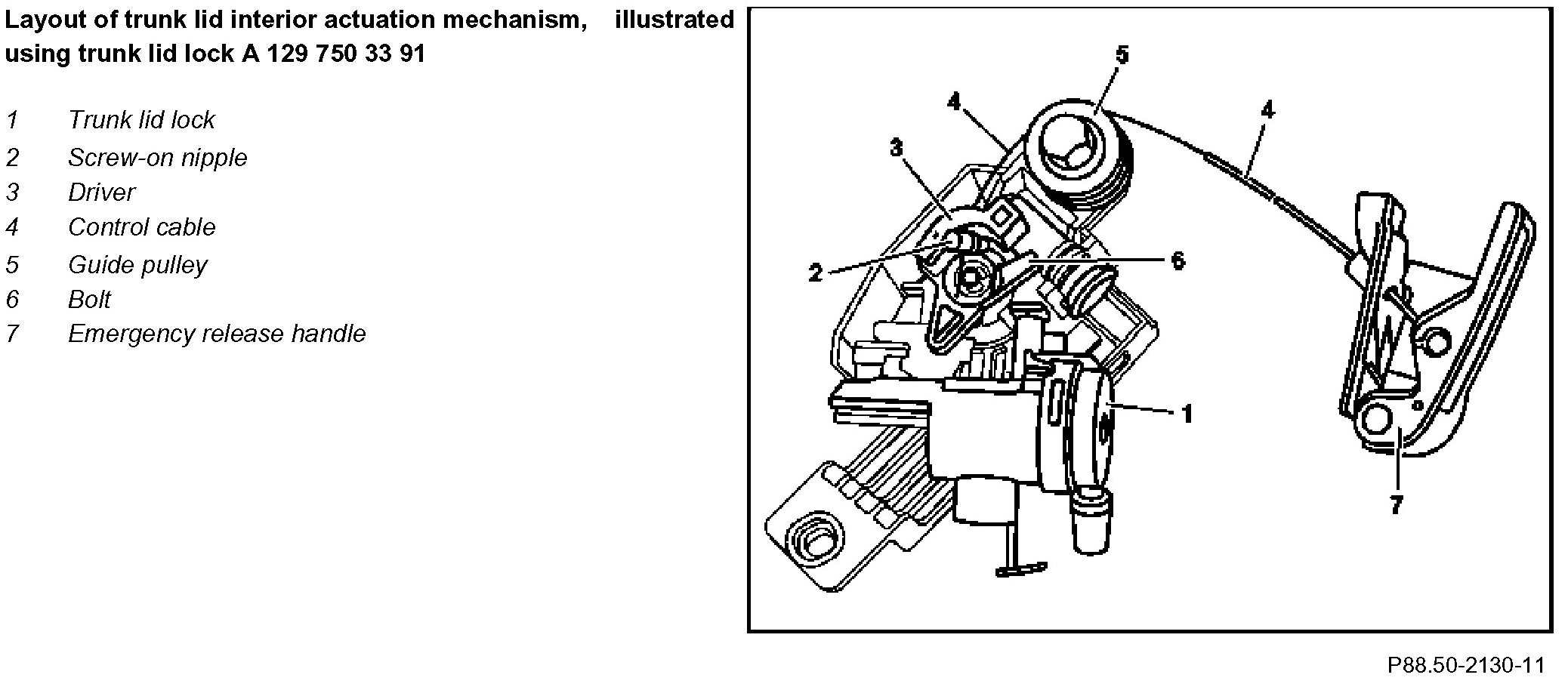

Component Identification:

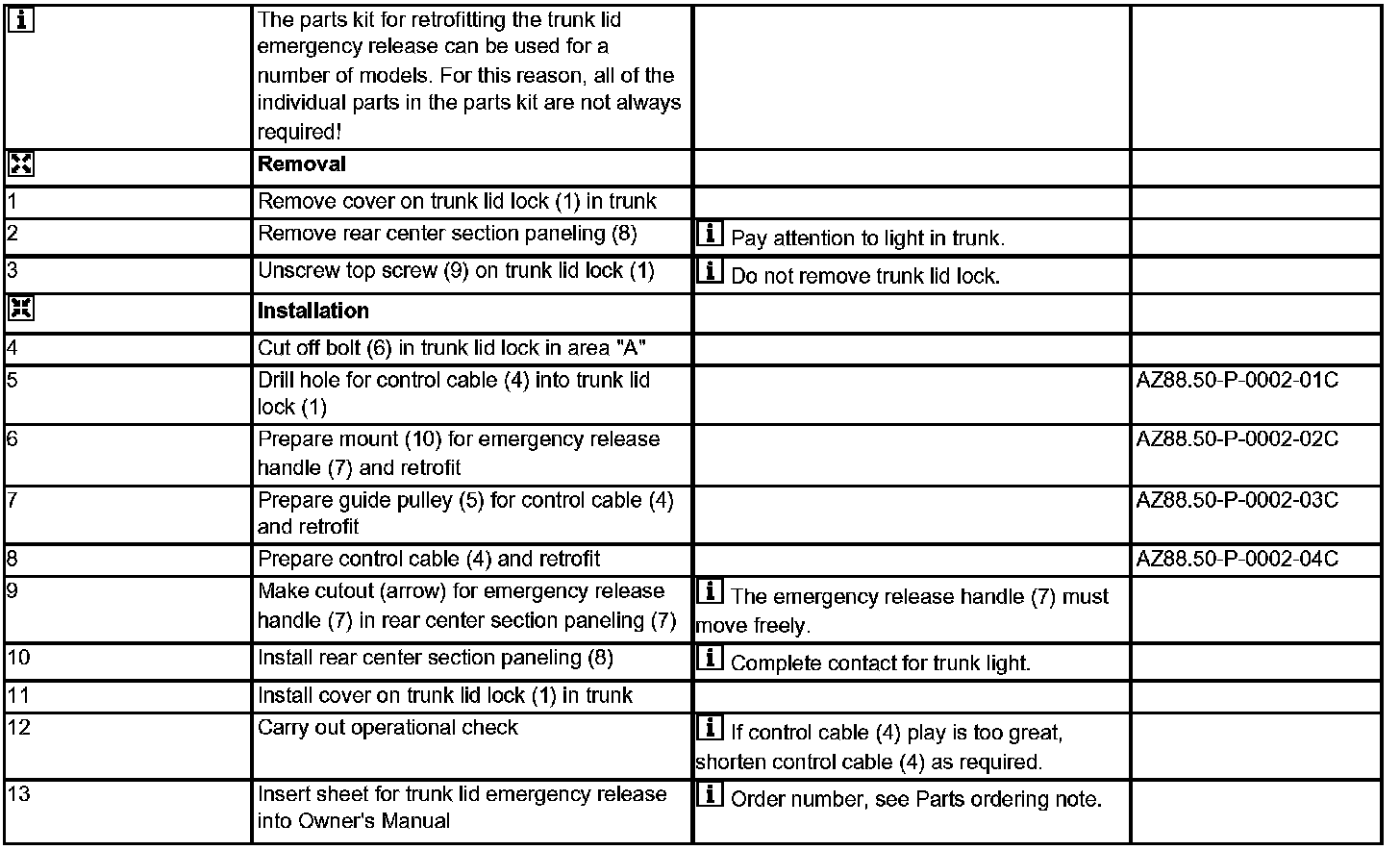

Steps 1 - 13:

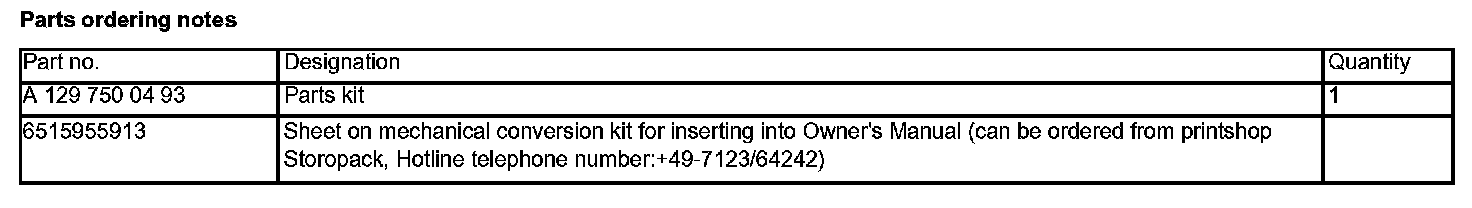

Parts Ordering Notes:
