Component Locations

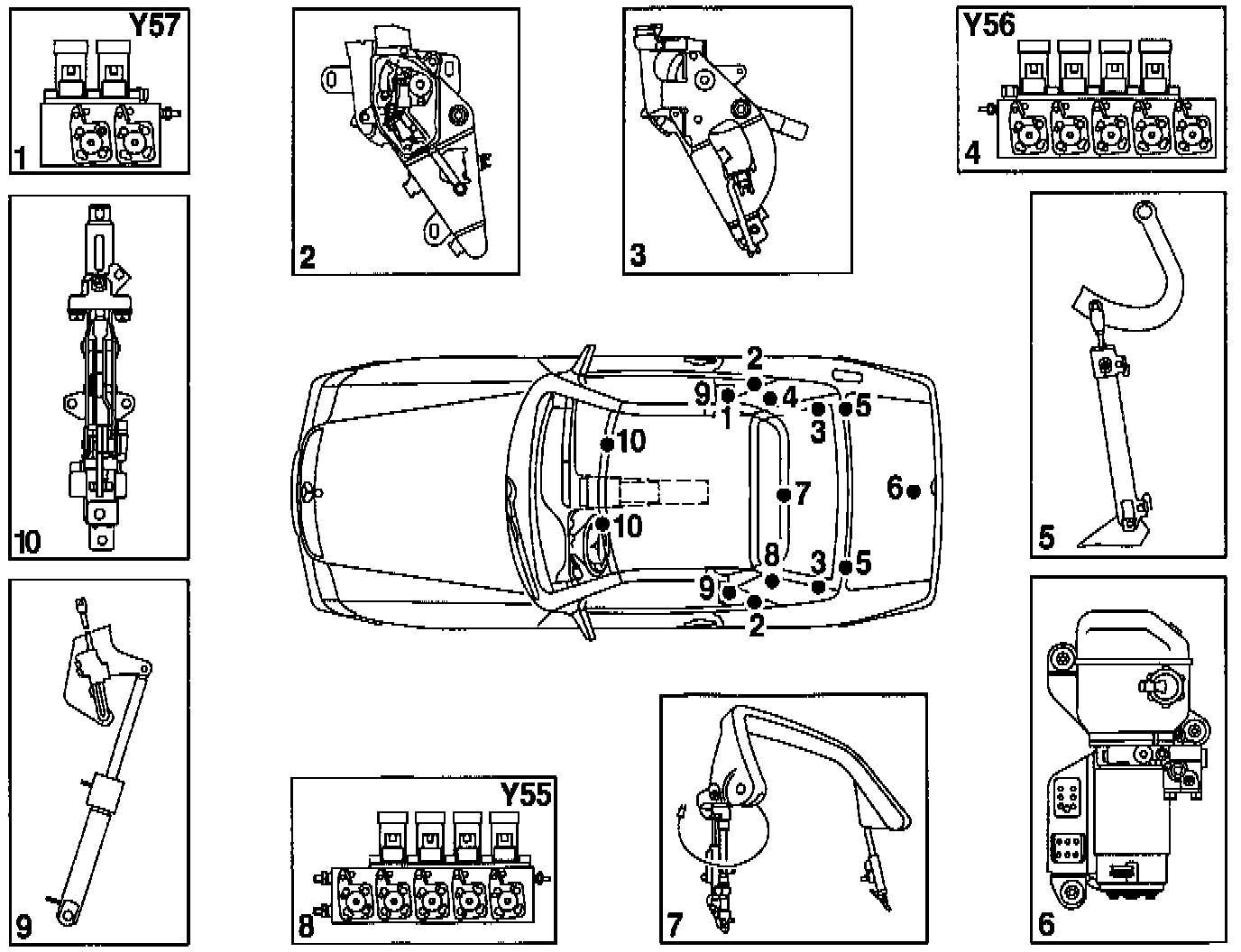

Location of Hydraulic components




1 RB valve block (Y57) (2 connections)
2 Center locks
3 Rear locks
4 Right RST valve block (Y56) (4 connections)
5 Soft top compartment cover hydraulic cylinder
6 Hydraulic unit
7 Completely extended roll bar
8 Left RST valve block (Y55)
9 Soft top and fabric bow hydraulic cylinder
10 Front locks
