Survey of Electrical Valve Actuation

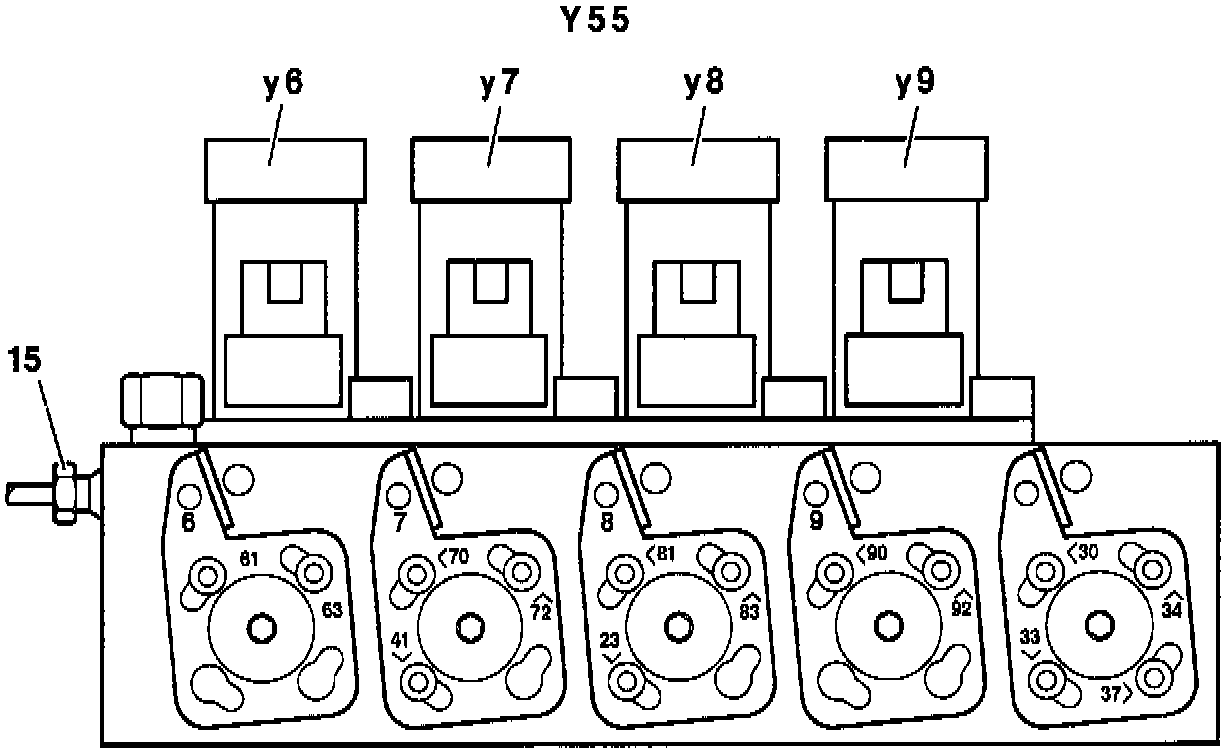

Y55 Left RST Valve Block (4 connections)



Y55 Left RST valve block (4 connections)
y6 Soft top "open" valve
y7 Soft top "close" valve
y8 Fabric bow "raise" valve
y9 Fabric bow "lower" valve

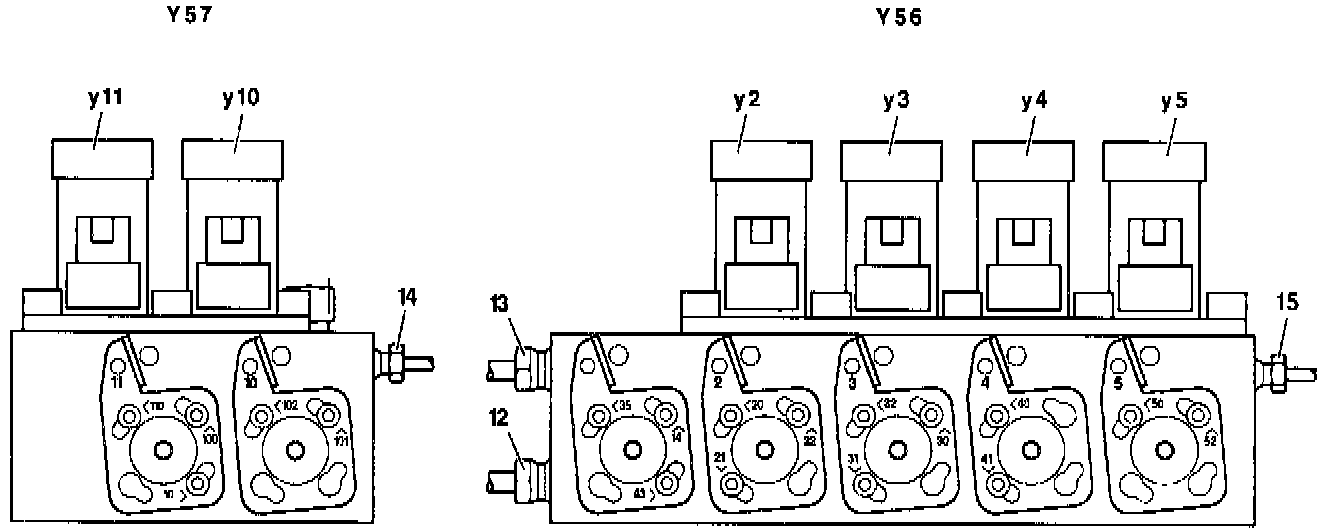

Y56 Right RST Valve Block (4 connections)
and
Y57 Roll bar Valve Block (2 connections)



Y56 Left RST valve block (4 connections)
y2 Rear locks valve
y3 Center locks valve
y4 Front locks valve
y5 Soft top compartment cover valve
Y57 Roll Bar valve block (2 connections)
y10 Roll bar "Lower" valve
y11 Roll bar "raise" valve

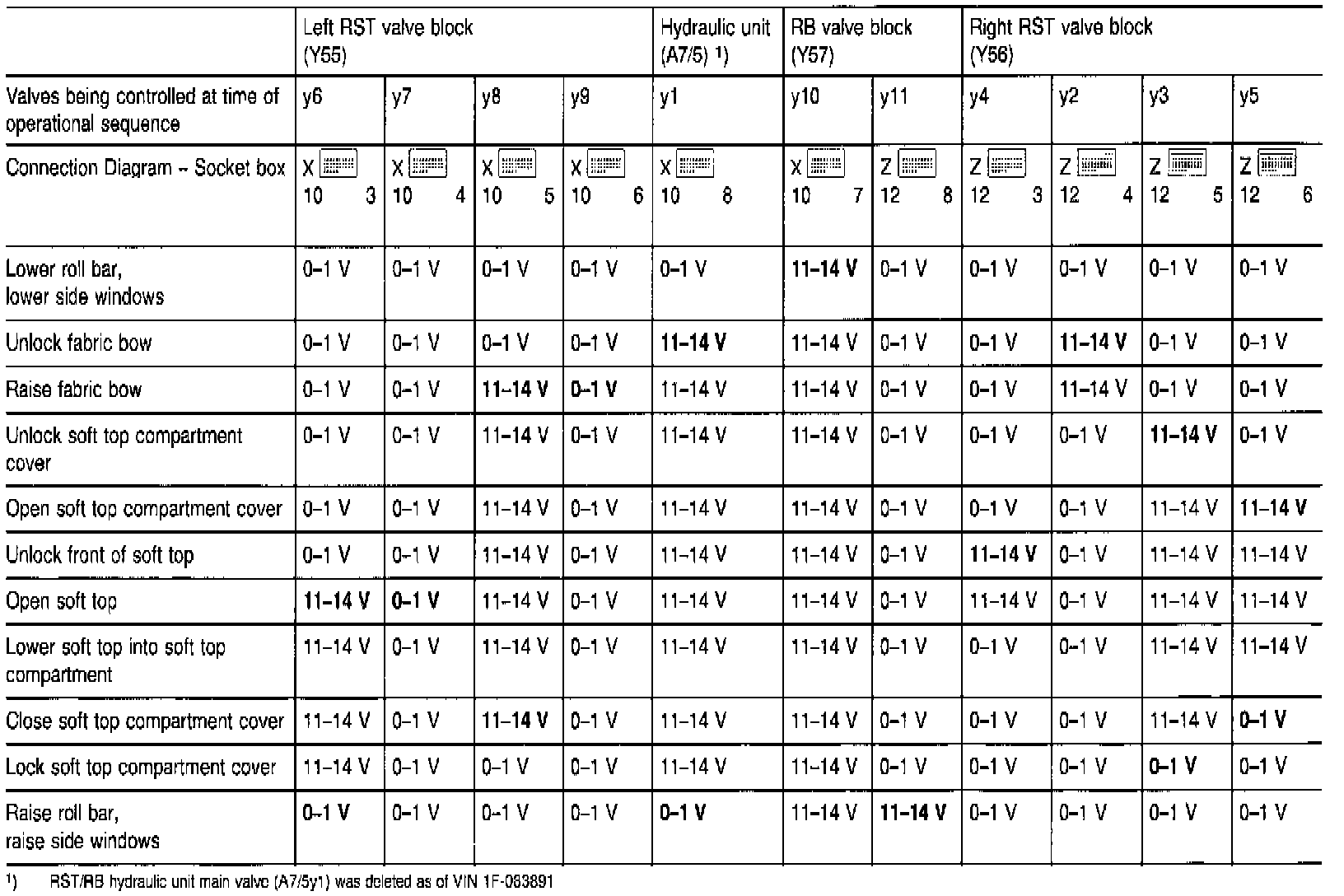

Operational Sequence: Soft Top Opening

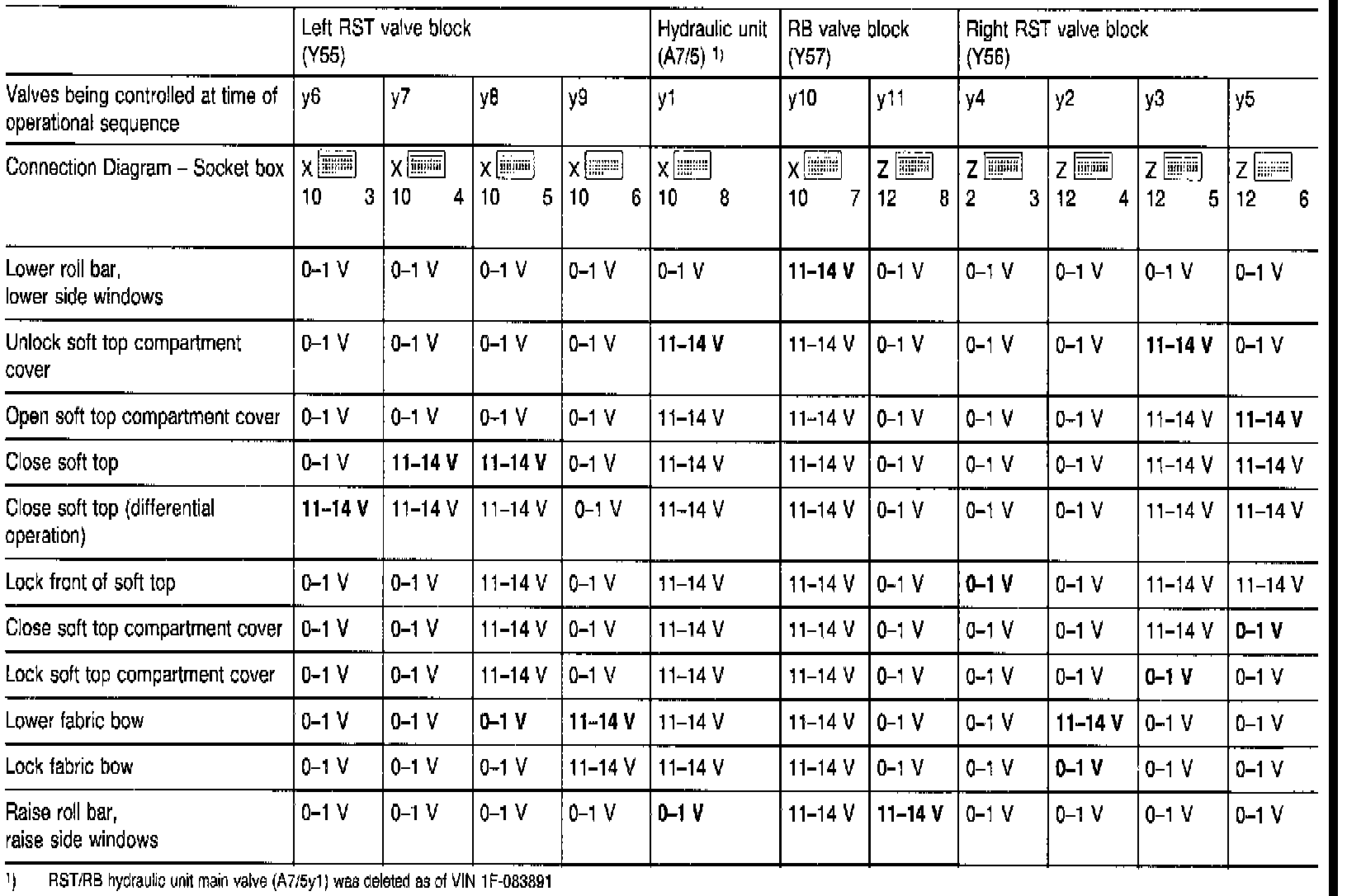

Operational Sequence: Closing Soft Top

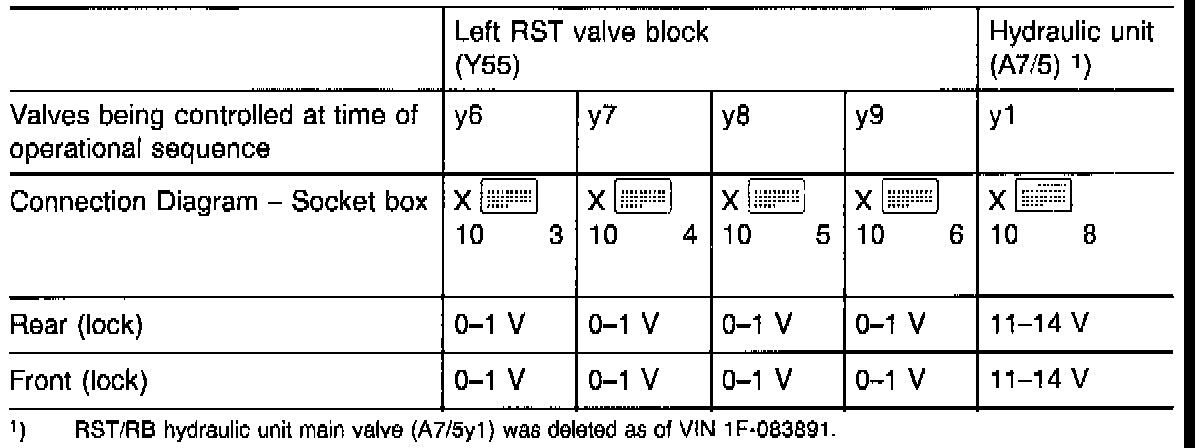

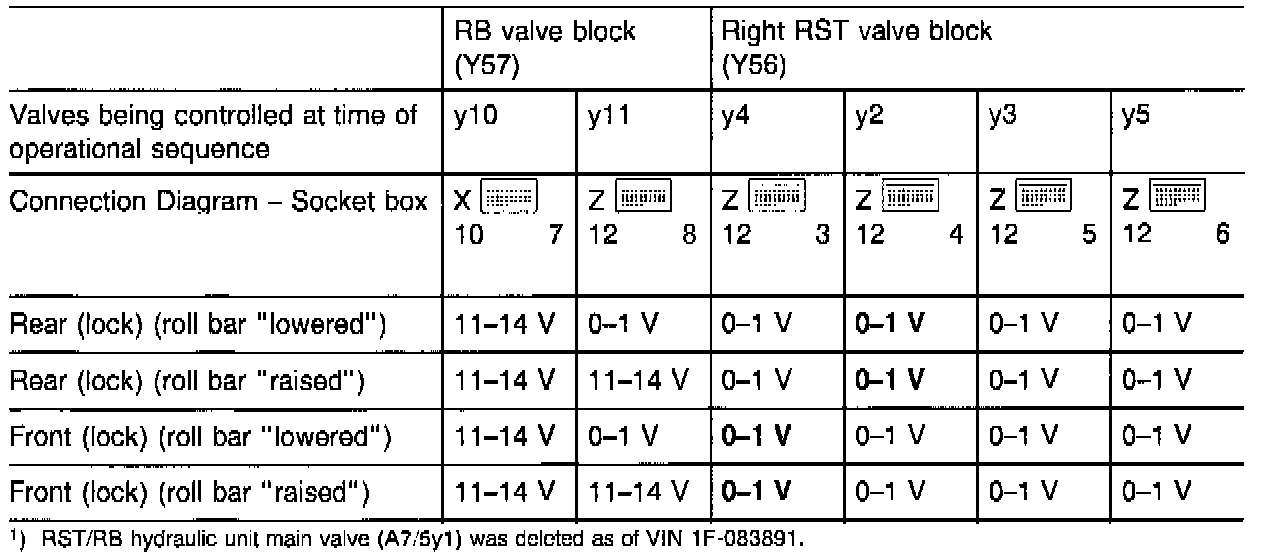

Operational Sequence: Locking Hardtop





Operational Sequence: Locking Hardtop

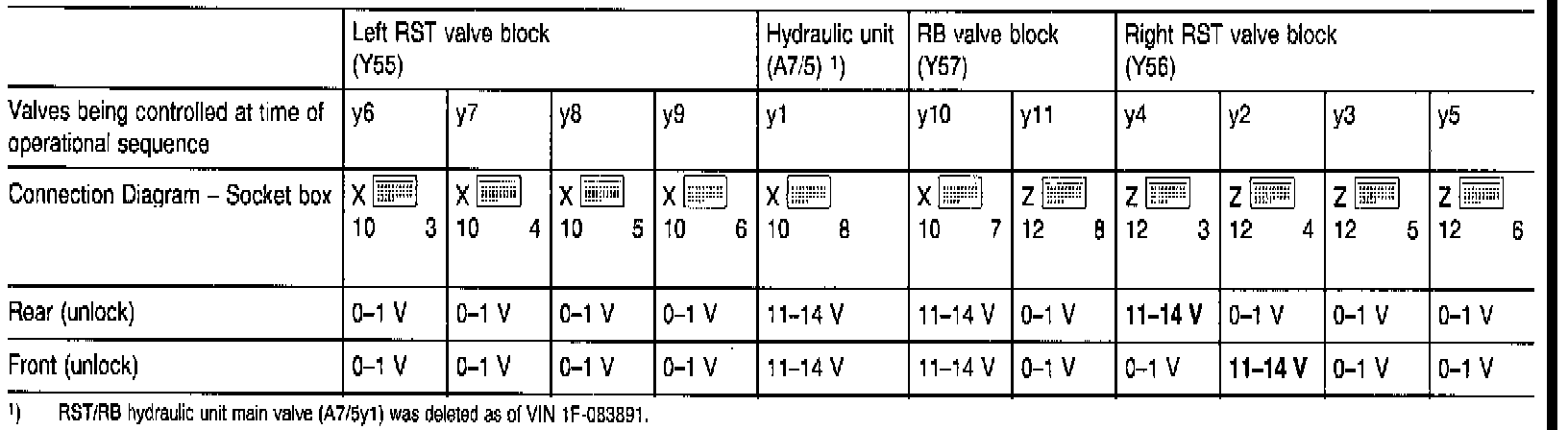

Operational Sequence: Unlocking Hardtop
